Gate Keeper Board Request Result#

When activated, the Gate Keeper Board Request Result task will send the reply to the Gate Keeper, validating the board entry.

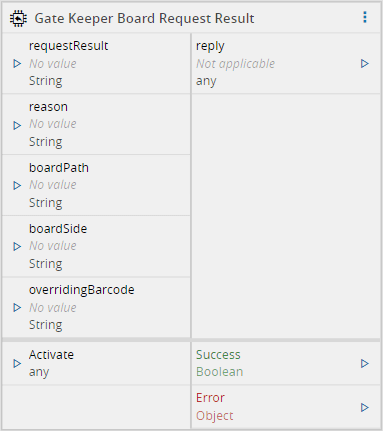

Inputs#

Name	Data Type	Description
requestResult	`String`	The result of the board validation returned by MES. Must be one of these options: `Confirmed` `Rejected` `Internal_Error` `PassThrough`
reason	`String`	A reason for the return value of requestResult. Example: an error message for the `Internal_Error`
boardPath	`String`	The Board path for which the result is returned. It is required for the Station software to differentiate between boards
boardSide	`String`	The MES system returns the board side. It is logged and can be used for a check. Values allowed: `Top`
overridingBarcode	`String`	The MES system is able to override the barcode value. If the input is empty, the barcode will not be changed
Activate	`Any`	Activate the task

Outputs#

Name	Data Type	Description
reply	`Any`	The reply received from the Gate Keeper
Success	`Boolean`	Triggered when the task is executed with success
Error	`Error`	Triggered when the task failed for some reason

Settings#

This task doesn't have any settings.

Behavior#

In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).

When the Gate Keeper sends a BoardGateKeeper.Event.BoardRequest and has the interlocking activated, the board will stop and wait for an MES validation of the board entry before proceeding. This task is responsible for supplying the Gate Keeper with the validation it requires to proceed with the board entry. It does that by sending a BoardGateKeeper.Command.BoardRequestReply to the Gate Keeper.

Note

This task can only be used with the Gate Keeper Board Request task.

Note

This task only applies when the Gate Keeper has the interlocking function activated.

Remarks#

This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
