Gate Keeper Scanner State Changed#
The Gate Keeper Scanner State Changed task will receive the information from the Gate Keeper regarding a scanner state change.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Any | Activate the task |

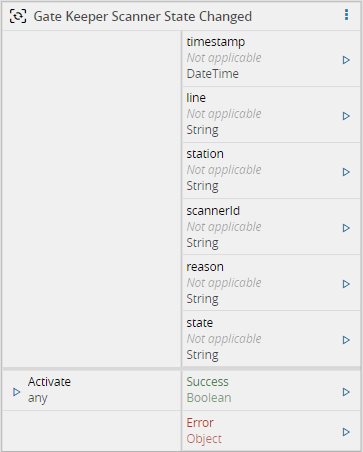

Outputs#
| Name | Data Type | Description |
|---|---|---|
| timestamp | DateTime | Timestamp of when the event was received |
| line | String | Information regarding in which Line the event occurred. Example: 'OIB Training\Line 1' |
| station | String | Information regarding in which Station the event occurred. Example: 'Station 1 - TX1' |
| scannerId | String | The internal/unique ID of the scanner |
| reason | String | A reason text regarding the state change |
| state | Any | The current state of the scanner. The state can be one of these:UnknownConnectedDisconnectedConfiguration_Error |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

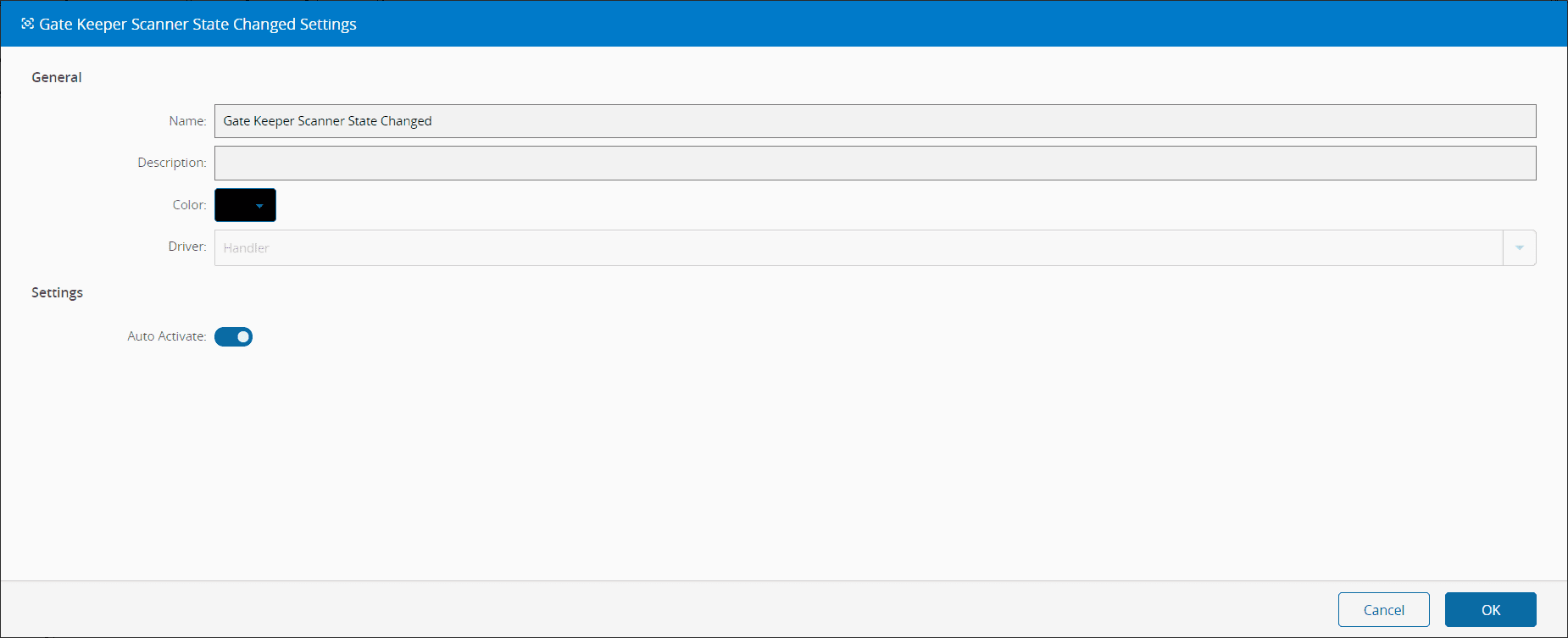

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate. |
Behavior#
In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).
This task listen to a BoardGateKeeper.Event.ScannerConnectionStateChanged, this is explained in the driver OIB documentation in the automation protocols. When a message from this type is received, the task will emit the outputs.
This task will be activated whenever there is a change in the connection state of a scanner hardware.
Note
Possible connection states:
- Unknown
- Connected
- Disconnected
- Configuration_Error
Remarks#
This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
