Get Job List#
This task returns the Job List for a specific line.
Can be used to then feed the GetJobDetails task with the job full path.
Outputs an string array with json.stringify of the job full path.

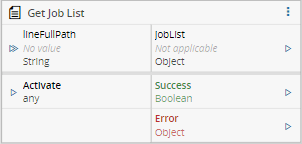

Inputs#
| Name | Data Type | Description |
|---|---|---|
| lineFullPath | string | Line Full Path eg:"Virtual Lines\Virtual Line 01" |
| Activate | Any | Activate the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| jobList[] | Object | Array of strings |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |
Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate. |
Behavior#
Call the Task with an OIB full Line Path and the task will send a command to the OIB SiplacePro, in the reply of the command there will be the information for the Job List.
Remarks#
None.
