PackagingUnit ControlStatusExtended Request Result#
The PackagingUnit ControlStatusExtended Request Result task uses the GetPackagingUnitControlStatusExtended() method on ISiplaceSetupCenterExternalControl interface.
This task is normally used in conjunction with the "packagingUnitControlStatusExtendedRequest" task.
This task outputs the task inputs back to the driver.

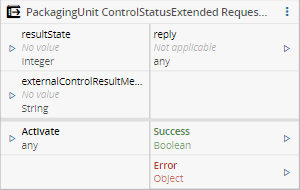

Inputs#
| Name | Data Type | Description |
|---|---|---|
| externalControlResultMessage | string | Message describing the reason for the failing operation |
| resultState | Number | The result status of the returned ExternalControlResult. |
| Activate | Any | Activate the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| reply | any | Reply received from the command |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

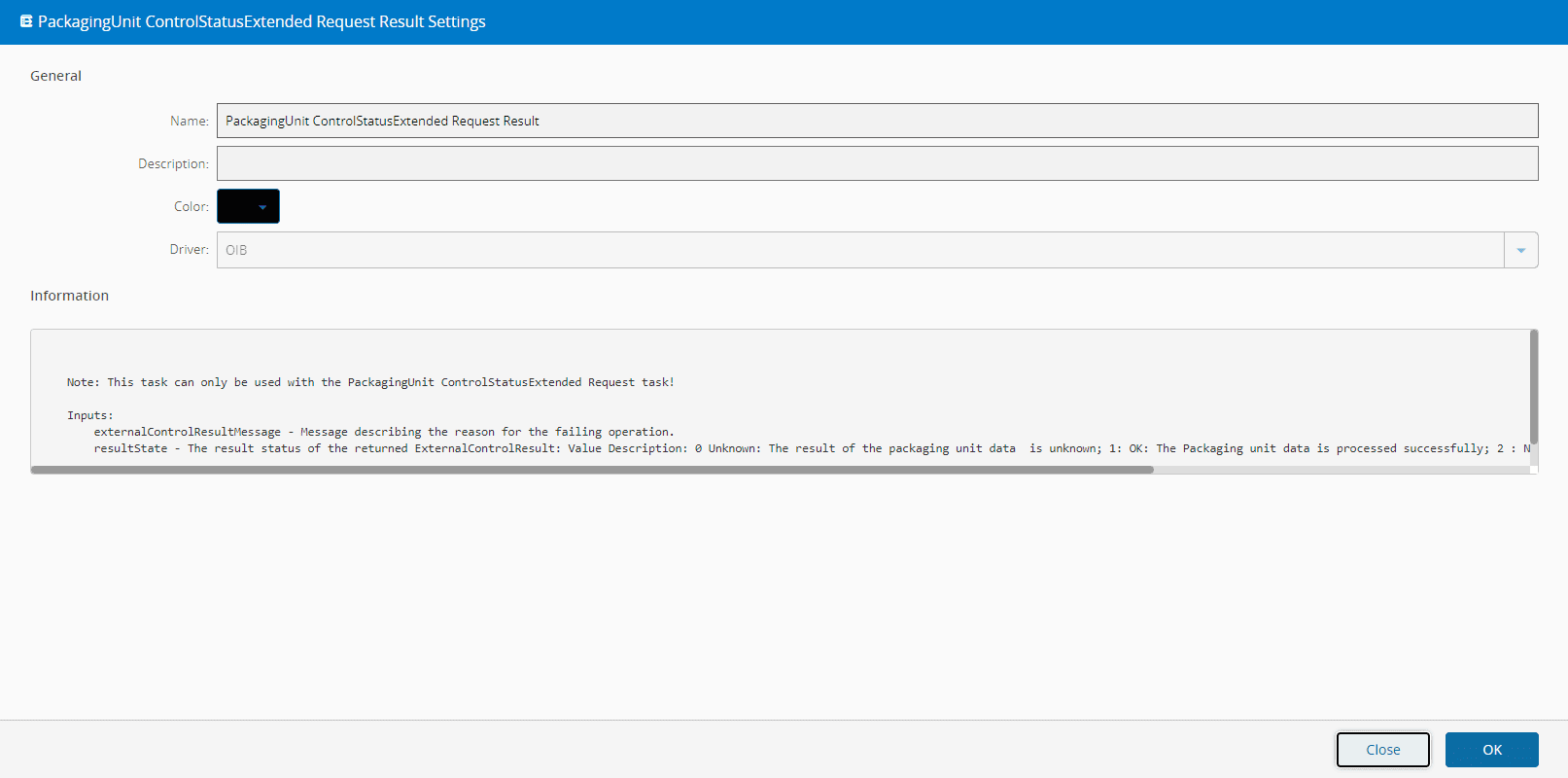

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate. |
Behavior#
Typical usage scenario, is this task replying to the "packagingUnitControlStatusExtendedRequest" task.
Remarks#
None.
