Send OIB Reply#
The Send OIB Reply Task is specific to be used with the OIB Driver. This Task sends reply OIB messages of a specific type, which can be configured in the Task's settings.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| requestId | string | The RequestId of the message received |
| Activate | Boolean | Activates the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |

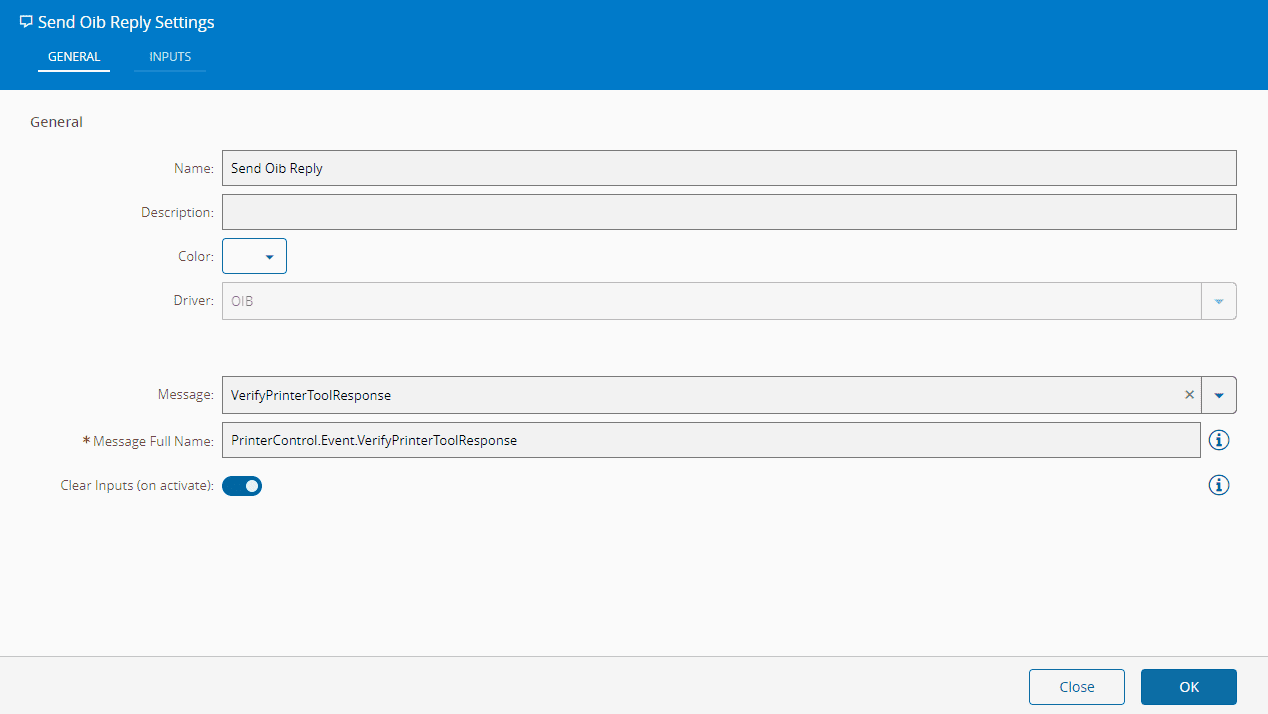

Settings#
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Clear Inputs (on activate) | Boolean | true | Defines if it is to clear the input values after receiving an activate | |
| Message | VerifyPrinterMaterialRequest, VerifyPrinterToolRequest | Specific message to process | ||
| Message Full Name | enum | Name of the complete OIB message with the namespace included, e.g. OIB.Production.ActivitiesExecuted. |
Behavior#
When activated, this Task sends a reply of a specific OIB message, configured in the settings. The 'requestId' input is important to identify the request to be replied to.
Remarks#
None
