Traceability Data#

This task sends the TraceabilityData event, which occurs when the panel will exit the equipment, allowing for data to be retrieved and used for traceability purposes.

1562171137862

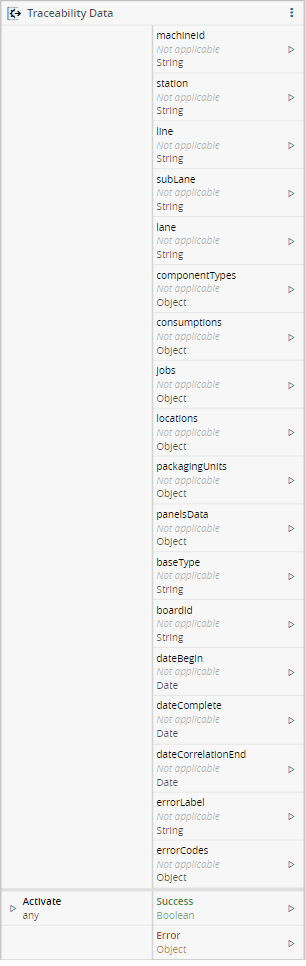

Inputs#

Name Data Type Description
Activate Any Activate the task

Outputs#

Name Data Type Description
timeStamp DateTime Timestamp when the event was received
machineId String The ID of the producing Station
station String Information regarding in which Station the event occurred. Example: 'Station 1 - TX1'
line String Information regarding in which Line the event occurred. Example: 'OIB Training\Line 1'
lane String Conveyor. This is an enum value which will be serialized as string and is defined as follows:
Unknown (0) unknown conveyor
Right (1) the right sub-conveyor
Left (2) the left sub-conveyor
subLane String Sub-Conveyor (allows future quad-lane support). This is an enum value which will be serialized as string and is defined as follows:
None (0) no sub-conveyor;
Right (1) the right sub-conveyor;
Left (2) the left sub-conveyor
componentTypes Object Component types which are being used by packaging units in this object.
consumptions Object List of detailed consumption data for each packaging placed
jobs Object SIPLACEPro job information like recipe, setup name, board type and board side
locations Object Packaging units placed (station based)
Packaging units verified during production time (line based)
packagingUnits Object A structure containing the information about one packaging unit (also known as reel, packaging, carrier)
panelsData Object A subpanel on a PCB which was placed by machine. This data is only available for station based data
baseType String Describes the kind of traceability data. This is an enum value which will be serialized as string and is defined as follows:
Unknown (0) unknown base type (should never be set);
Board (1) traceability data is related to a specific board (line based or station based mode);
Order (2) traceability data is related to an order (line based mode)
boardId String The Board ID or Barcode
dateBegin DateTime Date / time stamp for the start of processing given as UTC
dateComplete DateTime Date / time stamp for the end of processing given as UTC
dateCorrelationEnd DateTime Correlation end date for partially correlated order files given as UTC
errorLabel String Error identifier which can be treated as a bit field
errorCodes Object A list of error codes which has occurred while generating this traceability data.
Success Boolean Triggered when the task is executed with success
Error Error Triggered when the task failed for some reason

Settings#

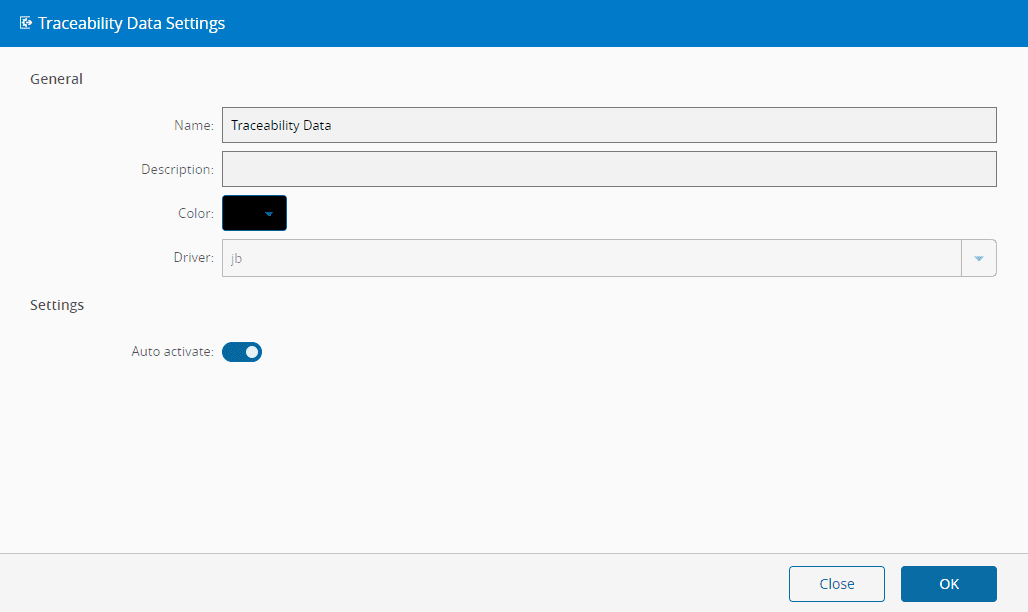

On the General tab, you have the usual settings and the following settings:

Name Data Type Values Default Description
Auto Activate Boolean true On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate.

1562259678207

Remarks#

None.
