Add Custom Data Types#
This task allows adding custom data types to an OPCUA Server (connect-iot instance)
Warning
This task is currently deprecated and will be removed in future versions.

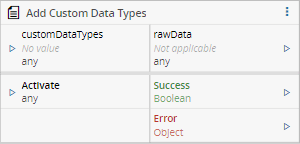

Inputs#
| Name | Data Type | Values | Description |
|---|---|---|---|
| customDataTypes | any | Supply the dataTypes to create by input | |
| Activate | any | Yes | Activates the task |
Outputs#
| Name | Data Type | Values | Description |
|---|---|---|---|
| rawData | any | The created DataTypes | |
| Success | Boolean | Result of the method execution | |
| Error | Error | Used to report an error in the method execution |
Settings#

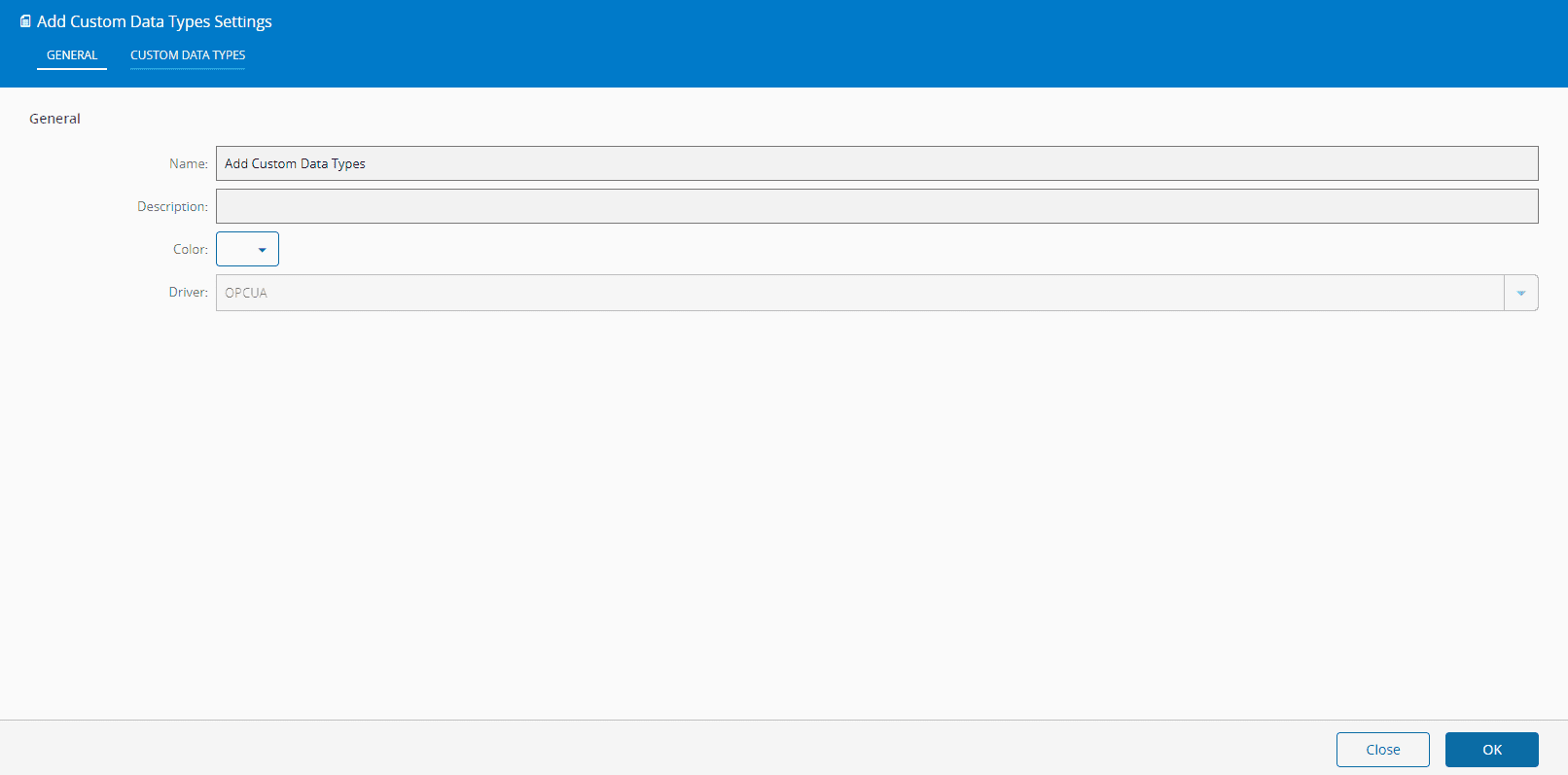

On the General Tab, you have the usual settings:
On the Custom Data Types Tab, you have entries for each of the result parameters of the command:
Behavior#
The task should be activated before connecting to the driver (onInitialize -> activate task -> connect). Custom DataType names don't need to end with DataType because this suffix will be automatically appended to each name. DataTypes can be inserted using settings or by input. Input value overrides settings values.
Remarks#
None.
