Abort Batch#

🔒 Batch.Abort

Overview#

This operation is used to Abort a given Batch.

Setup#

No specific setup is required other than to meet the precondition of the transaction.

Preconditions#

  • The Batch exists in the system and is Active.
  • The Batch System State is In Process.
  • The Batch must be in Loaded state.

Info

When a Batch Material is terminated while the Batch is in process, its associated Resource Job Material is removed. You can then abort the Batch for its remaining Batch Materials.

Sequence of Steps#

  1. Choose a Batch, then select the Abort button on the top ribbon.
  2. A wizard will appear with the list of the Batch Items, as shown below.

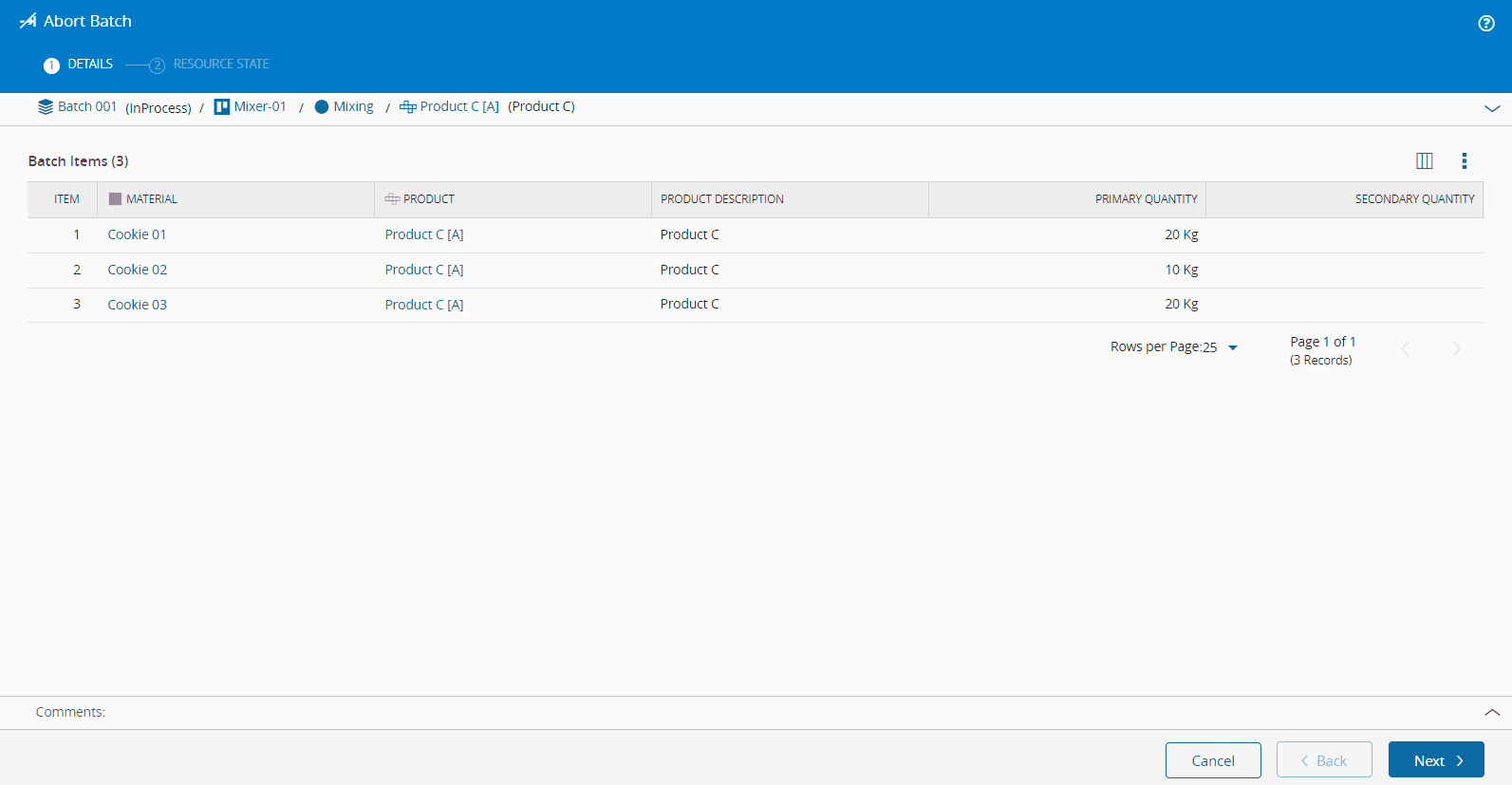

    Screenshot showing a wizard with a list of batch items, including an option to "Abort Batch".

  3. Optionally, enter a comment for the operation.

  4. Select Next.
  5. A wizard displaying Resource Details will appear, as shown below. Here, you can select the Resource State from the following options: Productive, Standby, or Engineering.

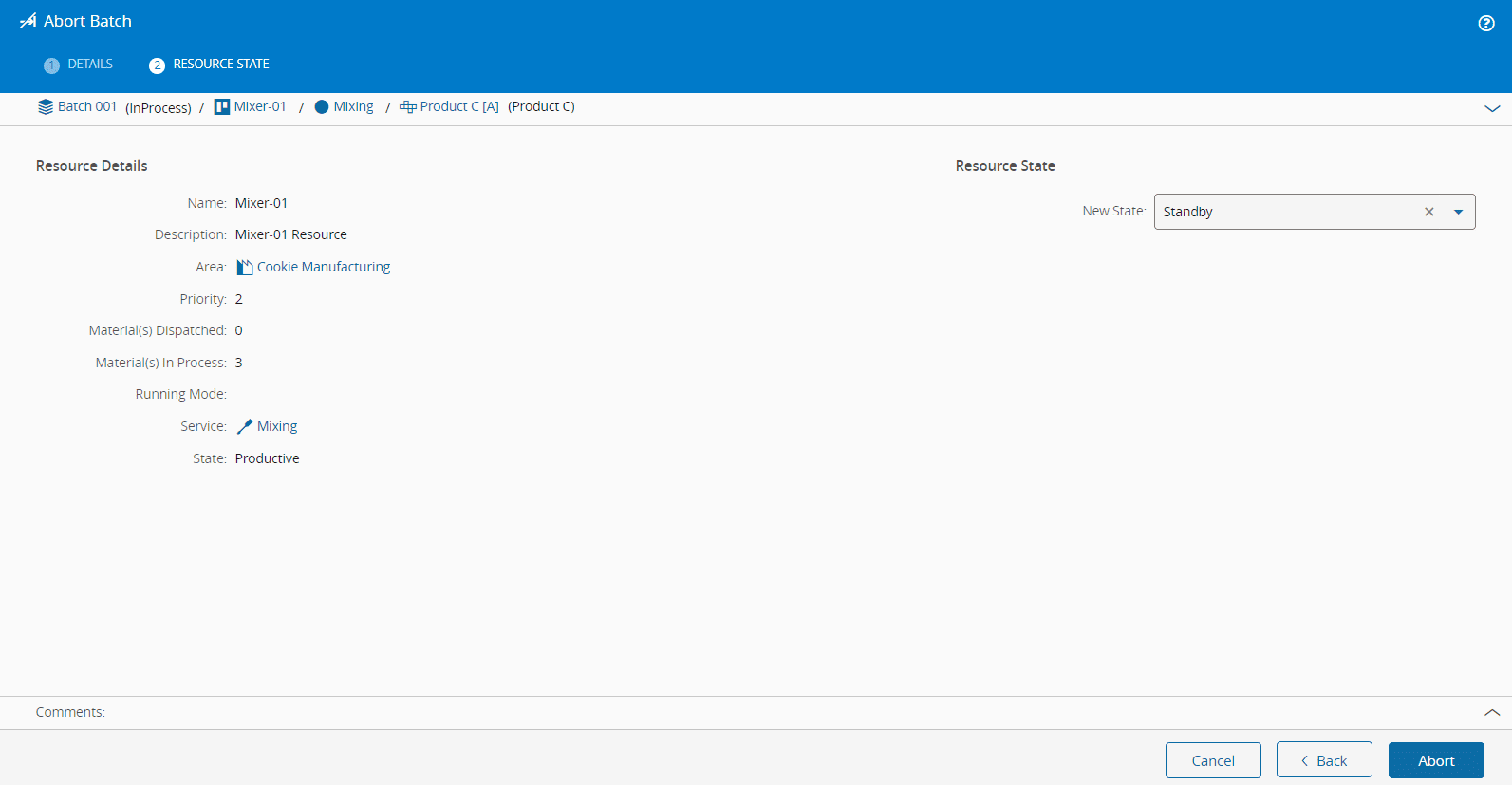

    Screenshot showing a wizard displaying Resource Details, with options for selecting the Resource State.

  6. Optionally, enter a comment for the operation.

  7. Select Abort.

Info

Once a Batch is aborted, the Batch State and the Resource Job State are set to Queued.
