Bin Converter#

🔒 BinConverter.Show

A Bin Converter represents a set of bin code conversions to be applied for a Substrate Map.

The Bin Converter type can be used for Colors only or for Colors and Values. This entity provides you with another perspective of the Substrate Map that is read and represented on screen. For example, the position of chips and which of those are good or not.

The Bin Type of bin codes for this Bin Converter are as defined in the E142 standard:

  • Ascii
  • Decimal
  • Hexadecimal
  • Integer2

Info

A bin conversion is an object that represents a single bin conversion of a Bin Converter.

The following is an example of a Bin Converter applied to a Substrate Map.

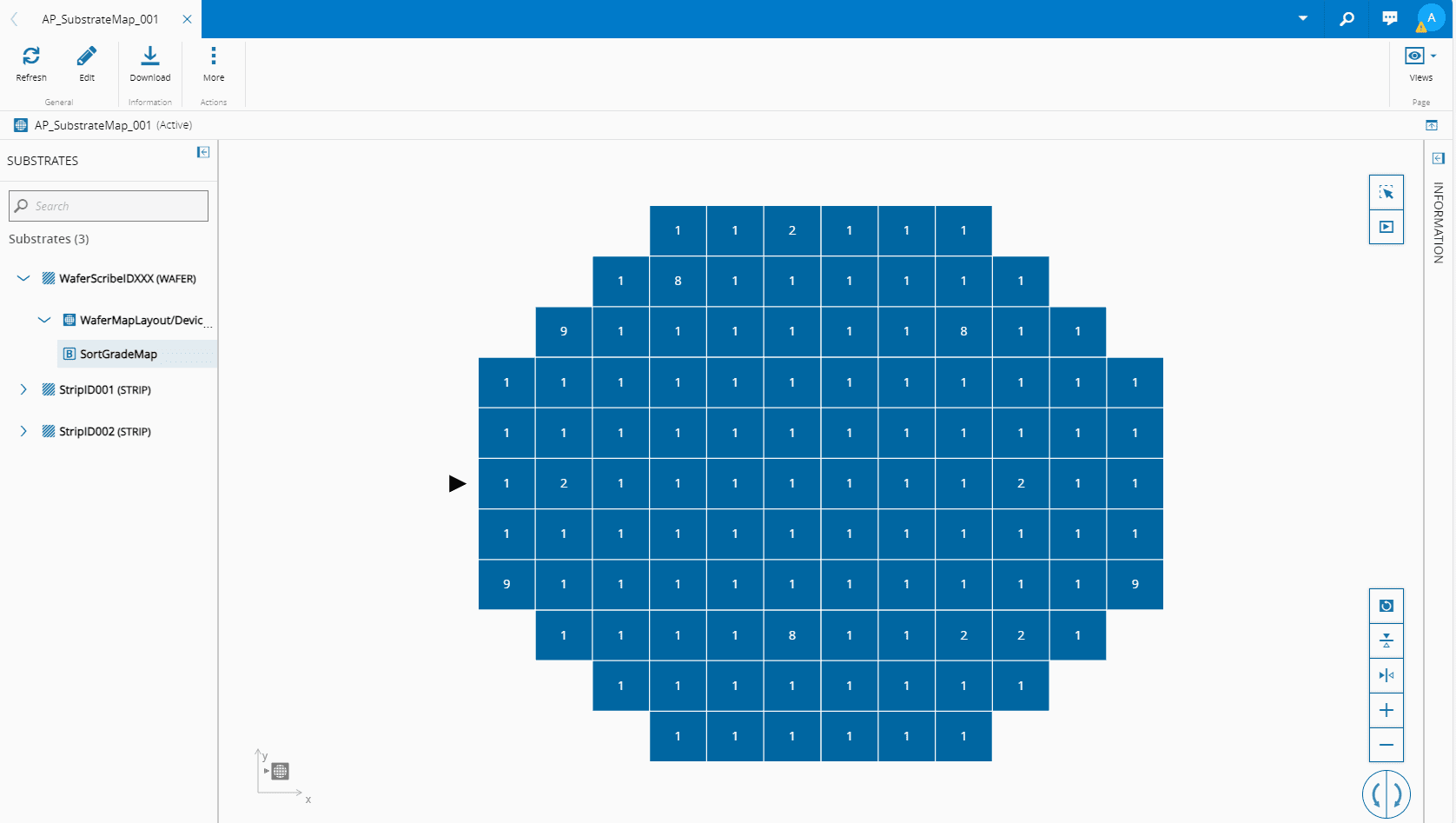

Substrate Map:

Screenshot showing a binary conversion process for a substrate with an AES key.

Substrate Map with Bin Converter:

Screenshot showing an AES encryption key labeled 'SLES aES ' 1' displayed on a screen.

These are the Bin Conversions that were used for this example:

Screenshot showing a bin converter interface with conversion options.

Tying Everything Together#

graph TD
    Main[Bin Converter] -.- A1[Substrate Map]
    A1 --- L1[Substrate Map Substrate Alias]
    A1 --- L2[Substrate Map Substrate]
    N1[Substrate Map Content - Raw XML] --> A1
    Main -.- ST1[Resource Substrate Map Bin Converter]
    A1 -.- ST1

classDef mermaid_title color:#000, fill:#fafafa, stroke:#fafafa, stroke-width:0x, font-size:100%, font-weight:200;
classDef mermaid_start color:#000, fill:#fafafa, stroke:#fafafa, color:#fafafa, stroke-width:0x, font-size:100%, visibility: hidden;
classDef mermaid_businessdata color:#000, fill:#65CDE8, stroke:#65CDE8, stroke-width:0px, font-size:100%;
classDef mermaid_nonbusinessdata color:#000, fill:#B7DEE8, stroke:#B7DEE8, stroke-width:0px, font-size:100%;
classDef mermaid_entity color:#000, fill:#FB9F53, stroke:#FB9F53, stroke-width:0px, font-size:100%;
classDef mermaid_entitylinked color:#000, fill:#FCD5B5, stroke:#FCD5B5, stroke-width:0px, font-size:100%;
classDef mermaid_context color:#000, fill:#B9CDE5, stroke:#B9CDE5, stroke-width:0px, font-size:100%;
classDef mermaid_optional color:#000, fill:#B7DEE8, stroke:#65CDE8, stroke-width:1px, font-size:100%, stroke-dasharray: 5 5;
class Main mermaid_entity
class A1 mermaid_businessdata
class L1,L2 mermaid_entitylinked
class ST1 mermaid_context
class N1 mermaid_nonbusinessdata

click Main "../../business-data/substrate-map"
click A1 "../../business-data/bin-converter"

Sequence of Steps#

The necessary step for correctly creating and using a Bin Converter is:

  1. Create a Bin Converter.

Available Pages#

Dive into the pages below to explore more about Bin Converter:

Main Page#

Generic Operations#
