Edit Logical Chart#

LogicalChart.Edit

Overview#

This operation is used to Edit a Logical Chart.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Logical Chart exists in the system.

Sequence of Steps#

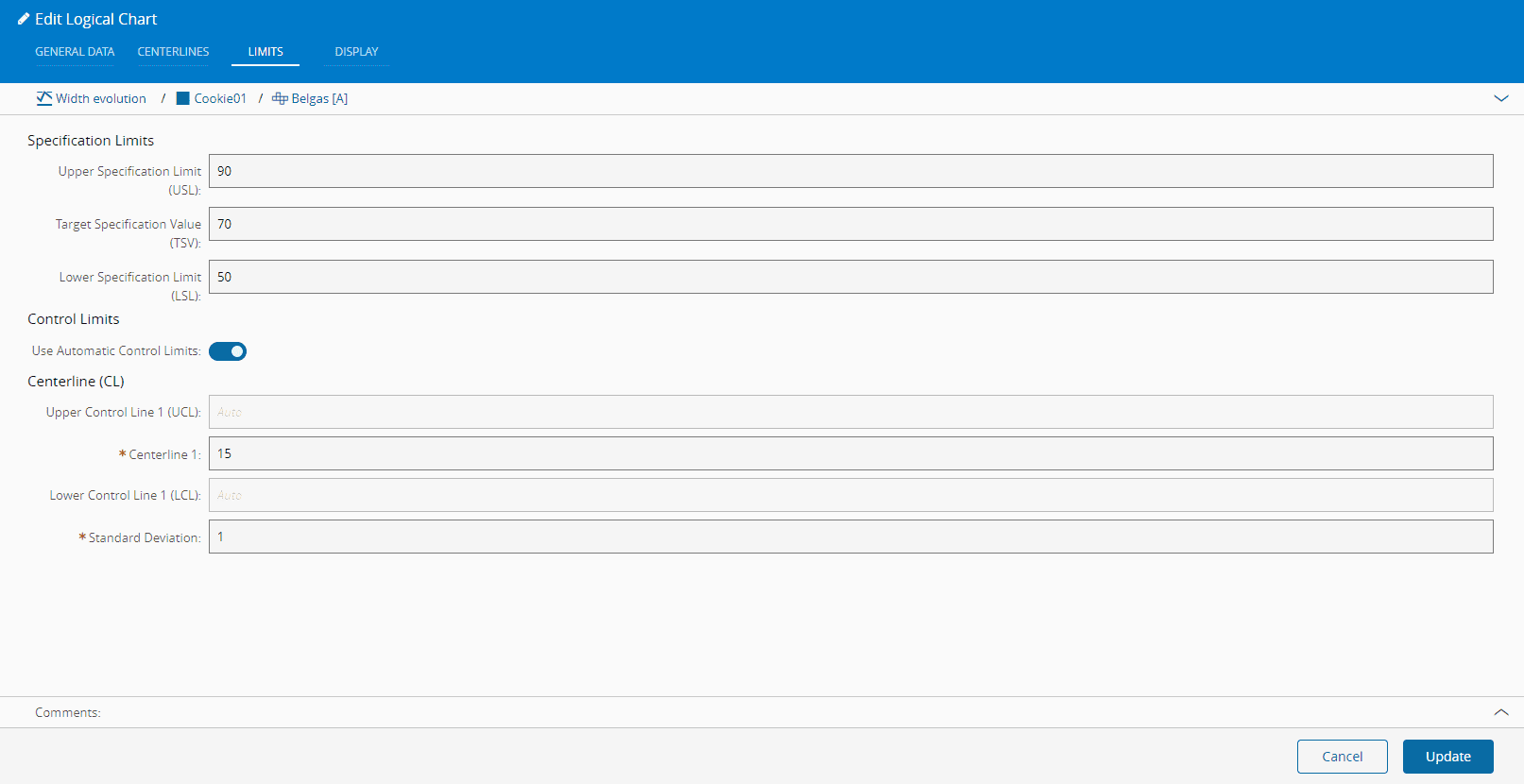

The Edit Logical Chart wizard can be called from the Logical Chart section in the Chart page.

Step 1: General Data#

1. Select the Logical Chart you want to edit.
2. Select Edit to open the Edit Logical Chart wizard.
3. You can edit General Data, Centerlines, Limits, and Display information. However, the Name of the Logical Chart cannot be altered.
4. Optionally, enter a comment.
5. When you have edited accordingly, select Update to perform the operation.
