Experiment Definition Page#

🔒 ExperimentDefinition.Show

The Experiment Definition page displays general information on the specific Experiment Definition. In addition it enables you to perform all the operations that can be performed on a specific Experiment Definition.

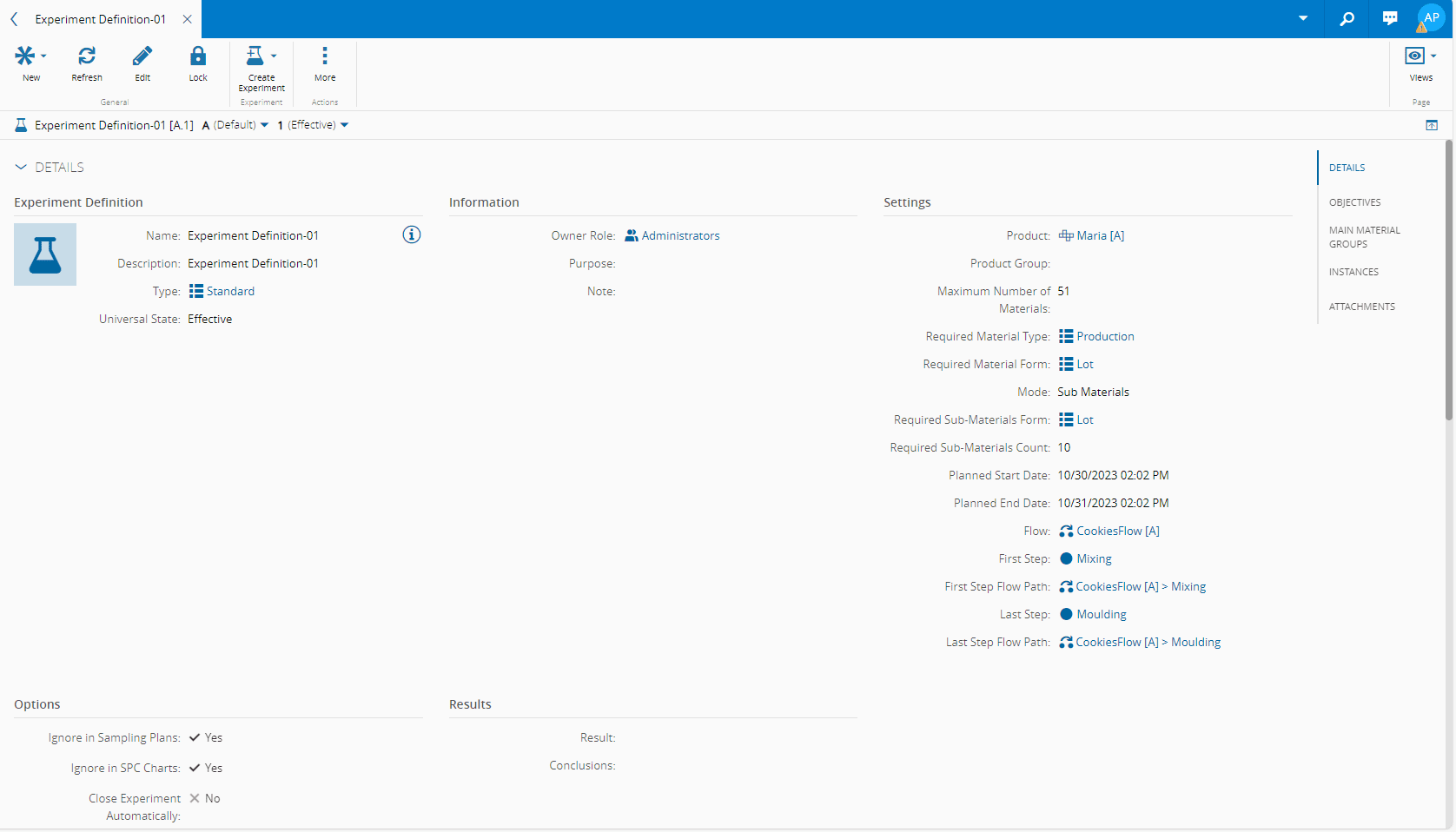

Details View#

Depending on the optional modules that are licensed in the system, the Details view will display some or all of the following page sections:

  • Details - displays general information of the Experiment Definition.
  • Objectives - displays one or multiple pre-defined objectives for the Experiment according to your specification of the aim of the Experiment. The Objectives are presented along with their description (optional) and target value (optional).
  • Main Material Groups - displays information about the Main Material Groups that were previously defined. It is possible to present the data as a List or Matrix by selecting the respective icon.
  • Instances - displays a list of all the experiment instances associated with the specific Experiment Definition. These experiment instances were created based on the settings that were specified when creating the Experiment Definition.
  • Attachments - shows the documents that are attached to the Experiment Definition and enables you to attach additional documentation to the Experiment Definition.

experiment_details

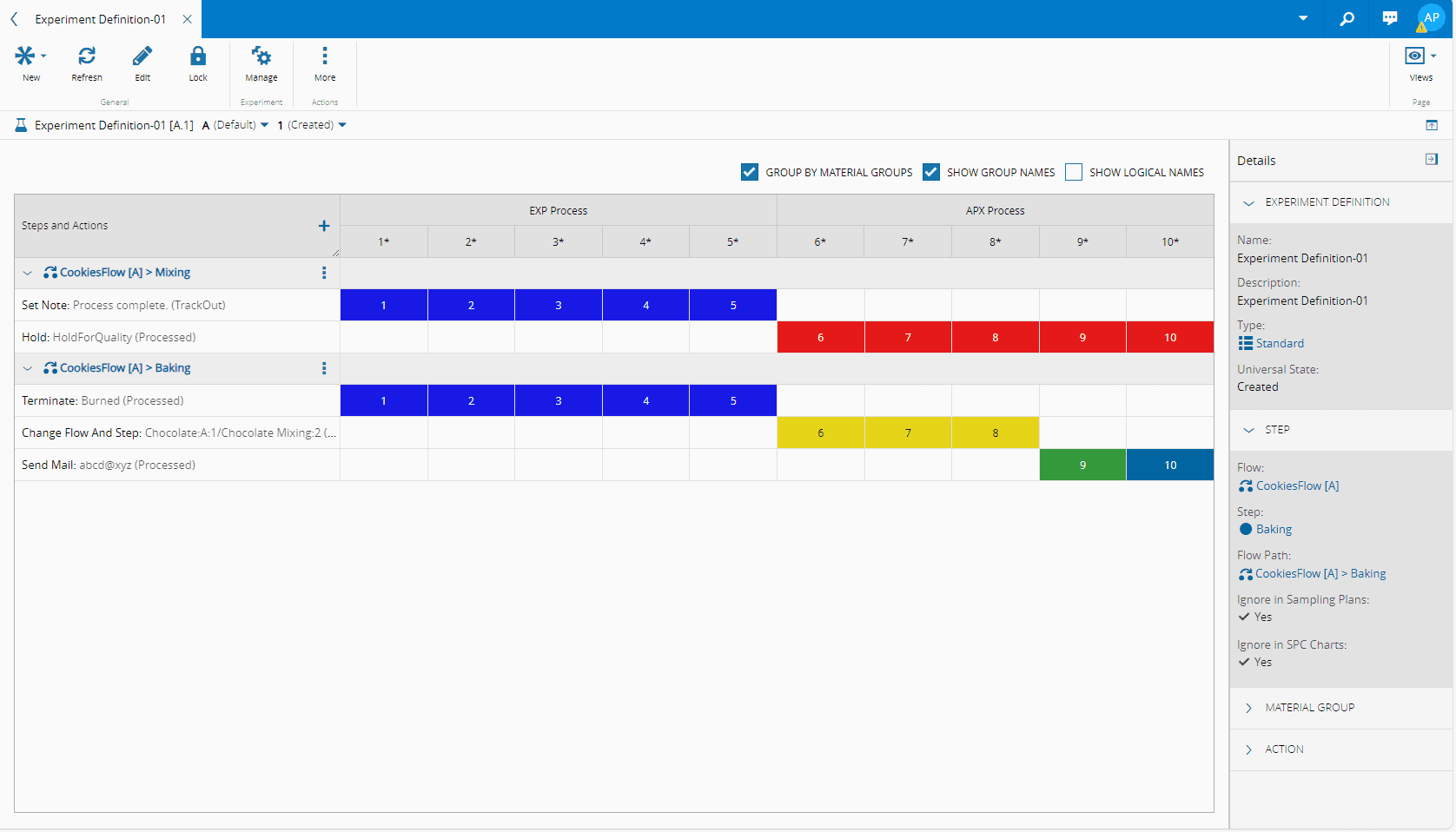

Matrix View#

The Matrix view allows you to have a global view on the assignment of sub-material groups (represented by numbers) and actions (within a step). It is especially recommended to use the Matrix view in case you want to see the correlation between the sub-material groups and the steps and actions.

In this view, you can collapse and expand Steps by selecting the arrow icon. If the State of the Experiment Definition is Created, you can also add Steps by selecting the icon. For more information, see Step 5: Add Experiment Definition Step.

At each Step, it is also possible to Edit or Delete actions and the allocation of materials by selecting the More option in the Matrix.

Note

To Edit or Delete, the State of the Experiment Definition must be Created.

By selecting any of the numbers, you have access to the following details on the right panel:

  • Experiment Definition
  • Step
  • Material Group
  • Action

experiment_matrix_details

Note

For specific actions, information will also be displayed in the Action row itself (e.g. Recipe and Flow Path).

Note

Different colors are associated to common groups of materials throughout the whole Step actions.

References View#

This view combines information concerning other objects that have references to the current object:

  • Relations - displays the existing Relations between the Experiment Definition and other entities and allows you to edit them. For more information, see Relations.
  • Where Used - displays the set of relationships between the Experiment Definition and the other objects used throughout the system.

History View#

This view combines information concerning other objects that have references to the current Experiment Definition object:

  • History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
