Insert Material into Line#

Material.InsertIntoLine

Overview#

This operation is used to insert a Material into a parent Material that is tracked-in (in process) at a Line. As a naming convention, the Material to be inserted is called Child Material and the Material where the Material will be inserted is called Parent Material.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

• Both the Parent Material and Child Material:

  • Are TopMost, Active and Non-Template
  • Are not on Hold or Stored
  • Do not have a FutureAction set
  • Are not a part of a Pick List or a Transfer Order
  • Must be in a Line Step
  • The TargetQuantity must be null
  • Have the same Facility, Step, Flow, Flow Path
  • Have the same PrimaryUnits and SecondaryUnits

• Regarding the Child Material:

  • It's in state Queued
  • It's Dispatchable
  • If the PendingReworkReturn property is true, the Child Material can only be inserted via Special Insert Material Into Line and it must be inserted into the LineReworkStep in a Material that has the same LineReworkReturnFlowVersion. Note by design at this time, the Resource is not being enforced.

• Regarding the Parent Material:

  • It's in state InProcess
  • If the Parent Material has an Experiment, the Child Material must have the same Experiment property defined.

• Regarding the Resource current processing the Parent Material:

  • Must be TopMost and of processing type Line
  • Must be Active and Non-Template
  • Must have the System State Up
  • The Inventory Locked must be false
  • The Resource Enable SubTrackin property must be true
  • If the Child Material RequiredResource is set, the Parent Material Resource must be equal to that Required Resource

• Regarding the destination Flow Path where the Child Material will be inserted:

  • In the Parent Material structure Material Line Steps, there must be a valid active Material Line Step with a reference to that Flow Path
  • The relationship Parent Material Form to Child Material Form must be defined in the MaterialForm table

Sequence of Steps#

Step 1#

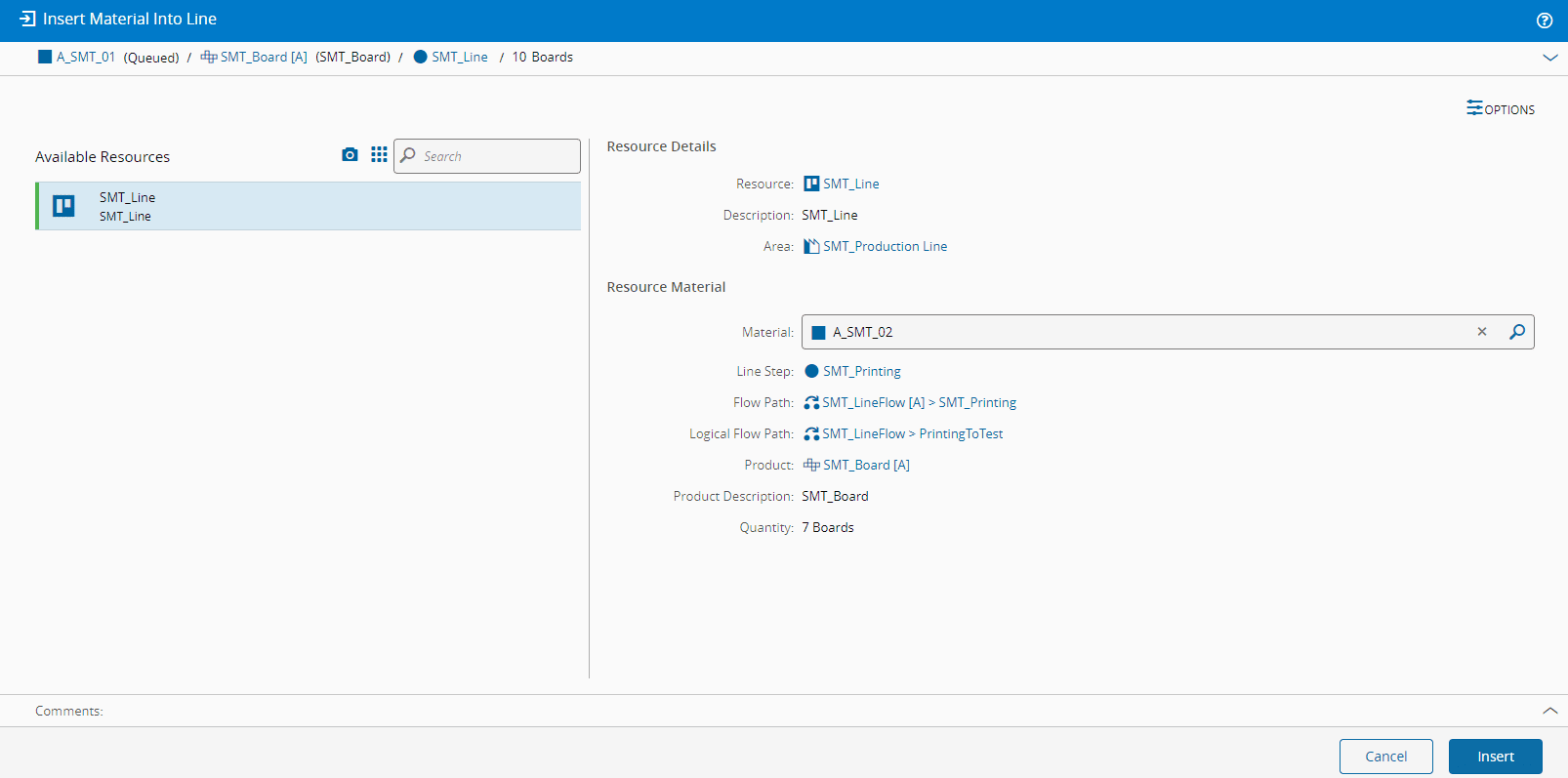

1. Select a Child Material matching the pre-conditions outlined above. Select Insert Material Into Line from the top ribbon.
2. Select a Resource matching the pre-conditions outlined above.
3. Select a Parent Material currently in state InProcess at the Resource where the Child Material will be inserted.

4. Review the information and select Insert to complete the transaction.
