Material Future Flow Report#

🔒 Material.FutureFlowReport

Description#

This report provides access to the Material Future Flow report of any Material which is available in the Operational Data Store (ODS) database.

Data Source(s)#

  • ODS database

Filters#

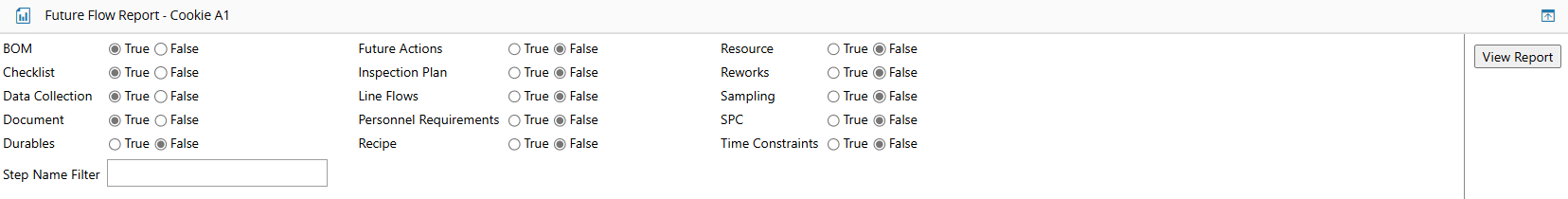

You can customized the Material Future Flow report by selecting the options below:

  • BOM
  • Checklist
  • Data Collection
  • Document
  • Durables
  • Future Action
  • Inspection Plan
  • Line Flows
  • Personnel Requirements
  • Recipe
  • Resource
  • Reworks
  • Sampling
  • SPC
  • Time Constraints

To select these options, simply choose the True radio button. When you are done, select the View Report button on the top-right corner to generate the report. If you change any options, select View Report to refresh the data.

MaterialFutureFlowReport

To view future flow information for a specific Step, use the Step Name Filter field. Enter the Step name and select Enter or View Report to update the results.

Note

The information regarding the Line Flows and the Reworks associated with the Material will appear at the end of the report.

Fields#

  • Material
  • Product
  • Flow
  • Step
  • Primary Quantity
  • Secondary Quantity
  • Flow Structure

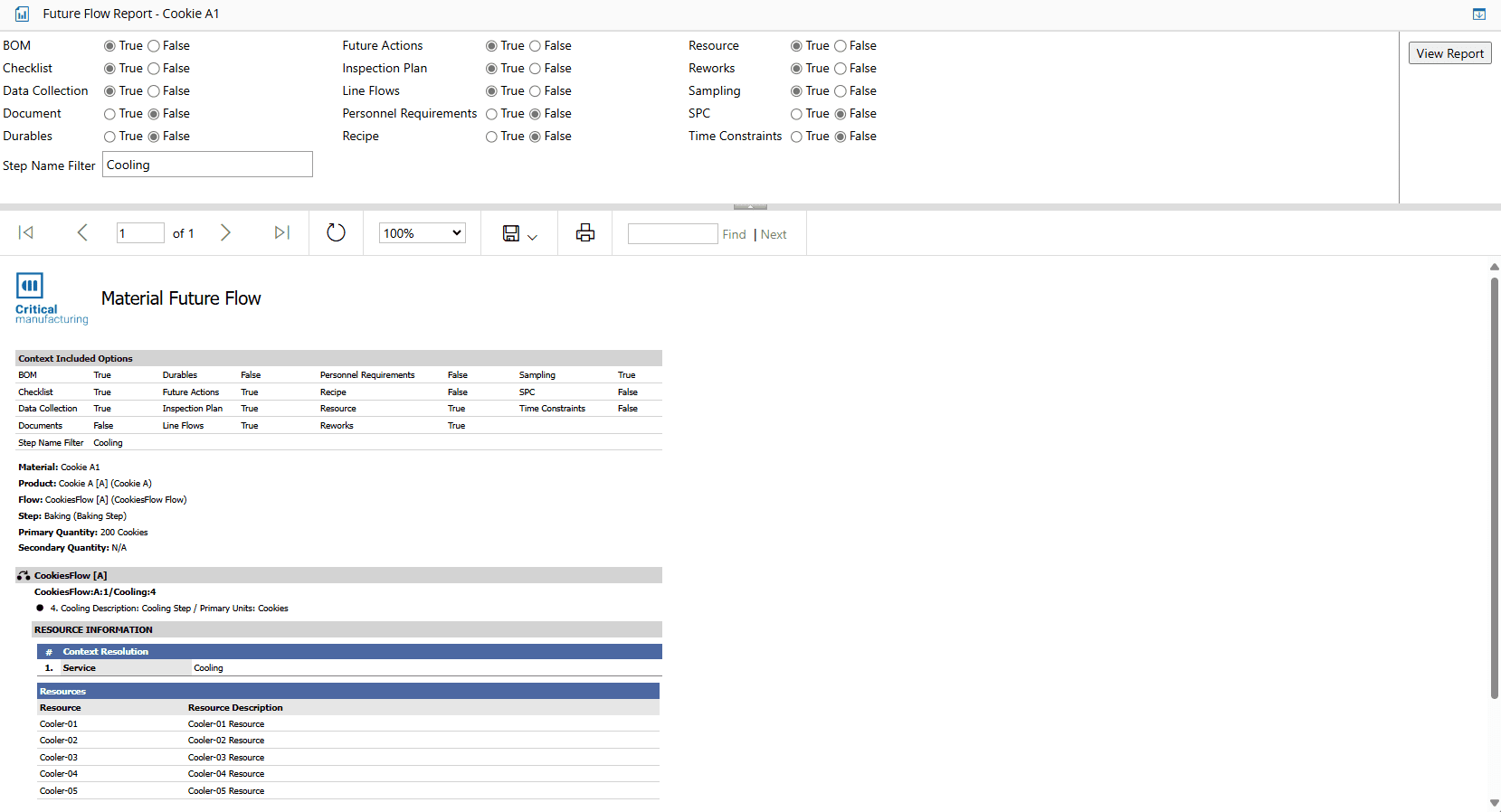

Example#

MaterialFutureFlowReport
