Split Material by Product#

🔒 Material.SplitByProduct

Overview#

This operation is used to split a Material according to its different Products. For each different Sub-Product, it is possible that the system creates a new TopMost Material (with a split) or that an existing eligible Sub-Material is selected as a new Sub-Product TopMost.

Setup#

No special setup is required other than to meet the preconditions of the transaction. Note that, the Material must have Sub-Products.

Preconditions#

  • The Main Material is Active.
  • The Main Material is not On Hold and not In Transit.
  • The Material has Sub-Products (i.e. Sub-Materials from different Products than the parent Material).

  • The Flow and Product of all new Materials are Active and Enabled.

    Info

    This transaction is important for genealogy.

  • If the property Use Container Restrictions in the Step of the Material is True, the available containers will be the ones that match the restrictions applied by the context of that Step. For more information, see Step Page or MaterialContainerTypeContext.

    Note

    The Container Used Positions must be less than the Container Max Usable Positions.

Sequence of Steps#

Step 1: Sub-Products#

  1. Verify the main Material information.
  2. Specify the Sub-Products to Split, by checking the respective checkbox on the leftmost column, and check their details on the right-hand side of the screen.

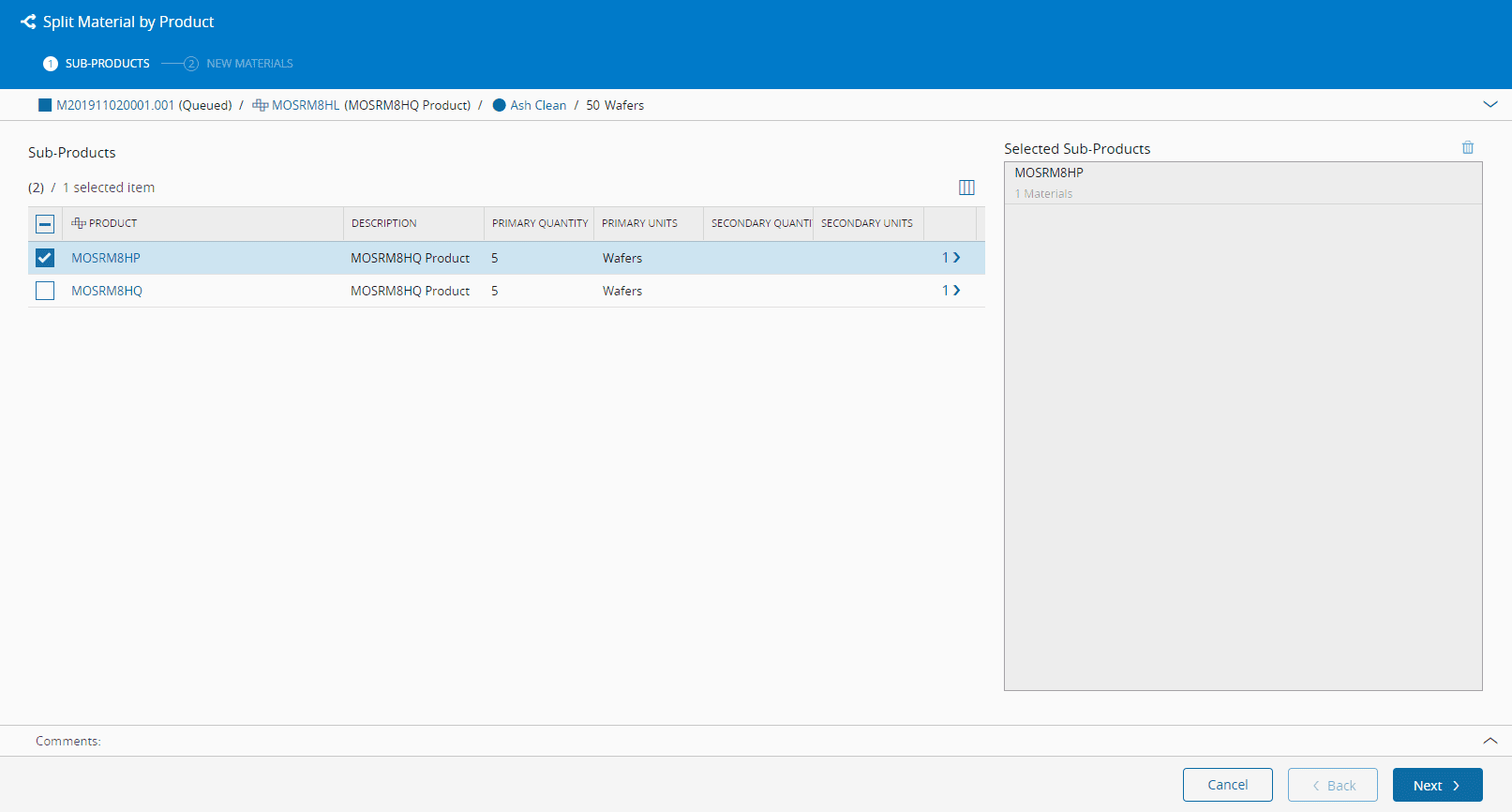

Screenshot showing a list of sub-products with checkboxes on the left and details on the right.

Step 2: New Materials#

  1. Once again, select the Sub-Products on the left-hand side grid and specify if a new TopMost Material should be generated by checking the option Create New Material, in which case a name can be entered (otherwise, it will be generated by a name generator). If, instead, you decide to check the option Use Sub-Materials, existing Sub-Material(s) of that Sub-Product must be selected to be the new TopMost Material for that Product.
  2. Regardless of the option selected above, a Container and a Position must be specified. If the selected Container has been configured to auto-generate positions, then the Position field will be filled in automatically. Otherwise, enter the Container position.

  3. By selecting the Options button on the top rightmost side of the screen, you will have access to additional options:

    1. Optionally, if all Sub-Products will be Split, check the option Collapse to collapse the Main Material being Split by Product.
    2. Optionally, you can Copy Contexts to the new Child Material.
    3. Optionally, you can Copy Future General Actions to the new Child Material.
    4. Optionally, you can Copy Future Splits and Merges to the new Child Material.
    5. Optionally, you can Copy Future Create Send-Ahead Runs to the new Child Material.
    6. Optionally, check the available option Terminate Material on zero Quantity(ies) and no Sub-Materials to terminate the Parent Material if these two conditions are met.

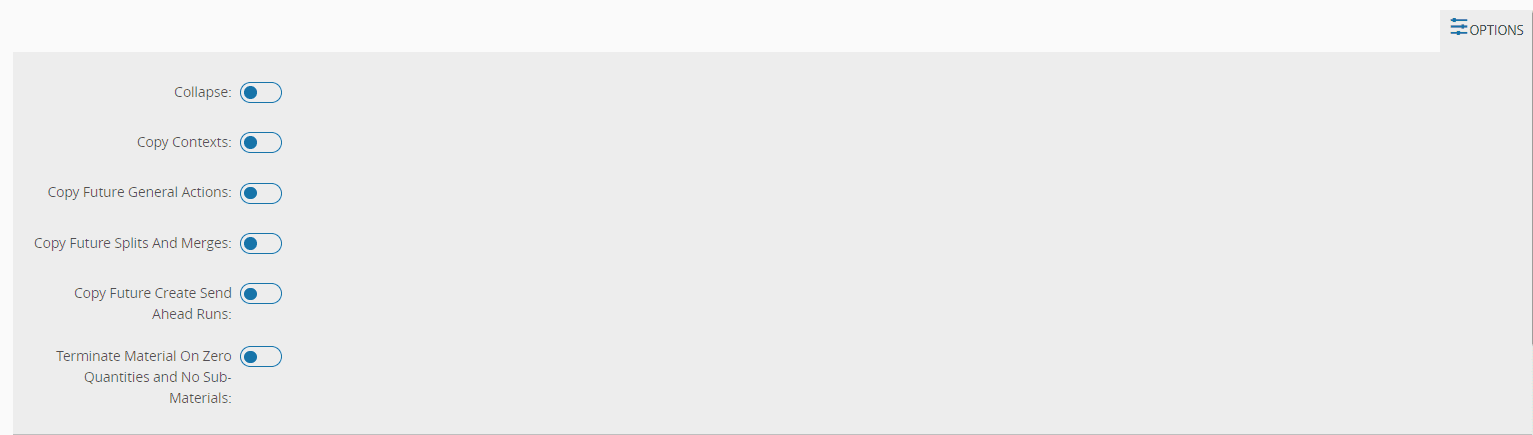

    Screenshot showing a UI with a list of materials, possibly with checkboxes or radio buttons for selecting product options.

  4. Select the Split button to complete the operation.

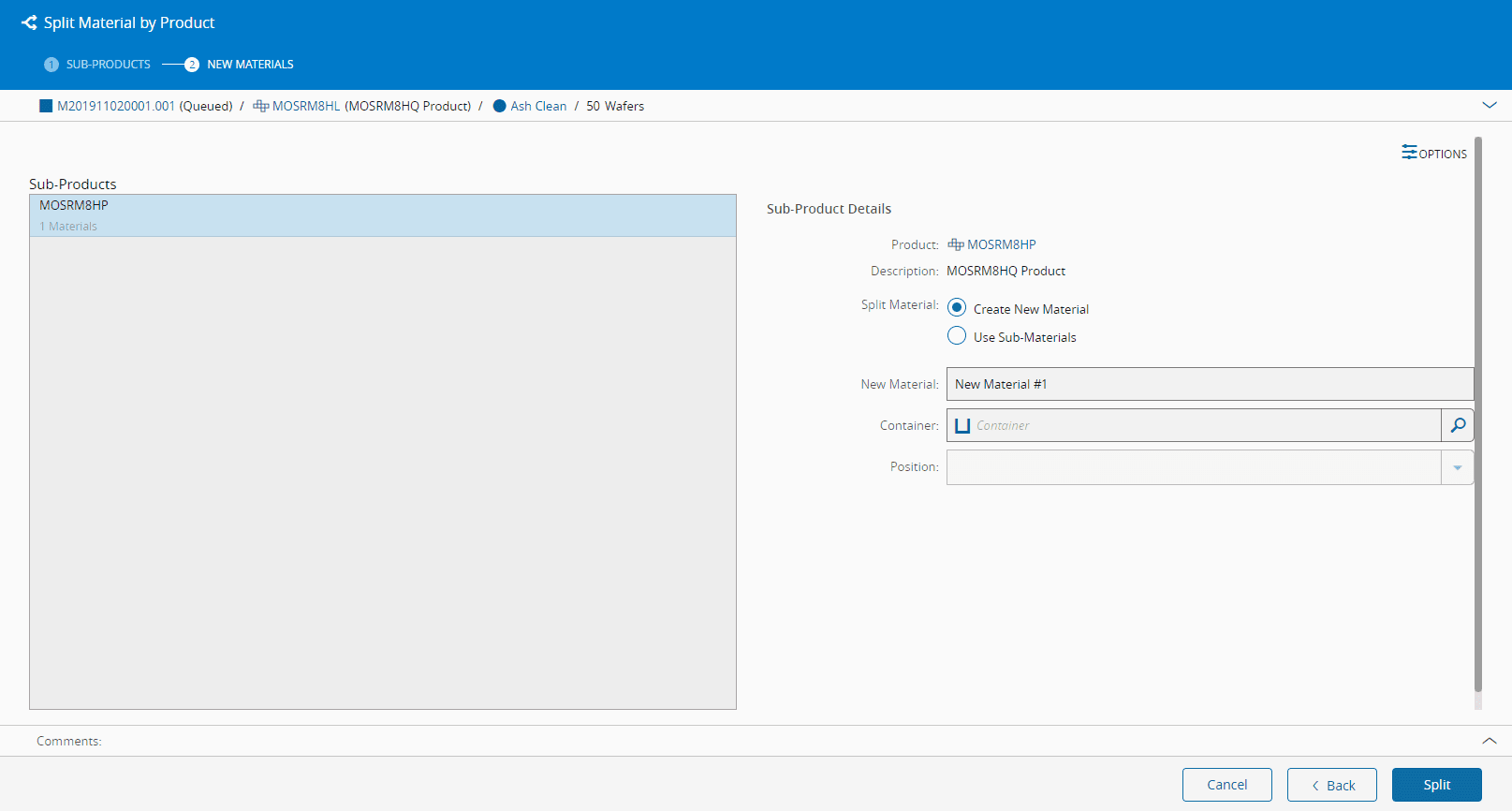

Screenshot showing a product selection interface with "Split" button highlighted.

Info

It is possible to define a default value for the possible collapse, as well as copying contexts, future actions and terminating Material on zero quantity(ies) and no Sub-Materials by editing the entries under the Context = Material.SplitByProduct in the GUIElementDefaultValue Generic Table.

When splitting a Material and opting to Copy Future Splits and Merges, note that Future Actions of type Merge will not be copied. Instead, the new Child Material will be included in the Merge Future Action linked with the Parent Material. Additionally, the system will not copy Future Actions referencing invalid Flow Paths or Logical Flow Paths.

If you opt to Use Sub-Materials during the Material split, be aware that no Future Actions will be copied.
