Track-in Sub-Material#

Overview#

This operation is used to track-in a Sub-Material into a Resource, meaning that the Sub-Material will begin being processed at the physical Resource.This operation can be done both from the Material and from the Resource perspective.

Setup#

No specific setup is required other than to meet the precondition of the transaction.

Preconditions#

• The Sub-Material is in Queued or Processed state.
• The Resource in which the Sub-Material is being tracked into is a Sub-Resource of Resource ProcessingType Process of the Resource where the ParentMaterial is; or if the Resource where the ParentMaterial does not have SubResources of Resource ProcessingType Process the Resource must be Null
• The ParentMaterial is InProcess.
• The current Step's SubMaterialTrackStateDepth property is greater or equal to the current Sub-Material's depth and the LastProcessedResource of the ParentMaterial's IsSubMaterialTrackingEnabled property is set to true.

Sequence of Steps#

Step 1: Resource State#

1. Select the Sub-Material and click the Track-In button.
2. Select the Sub-Material and click on the Track-In button.

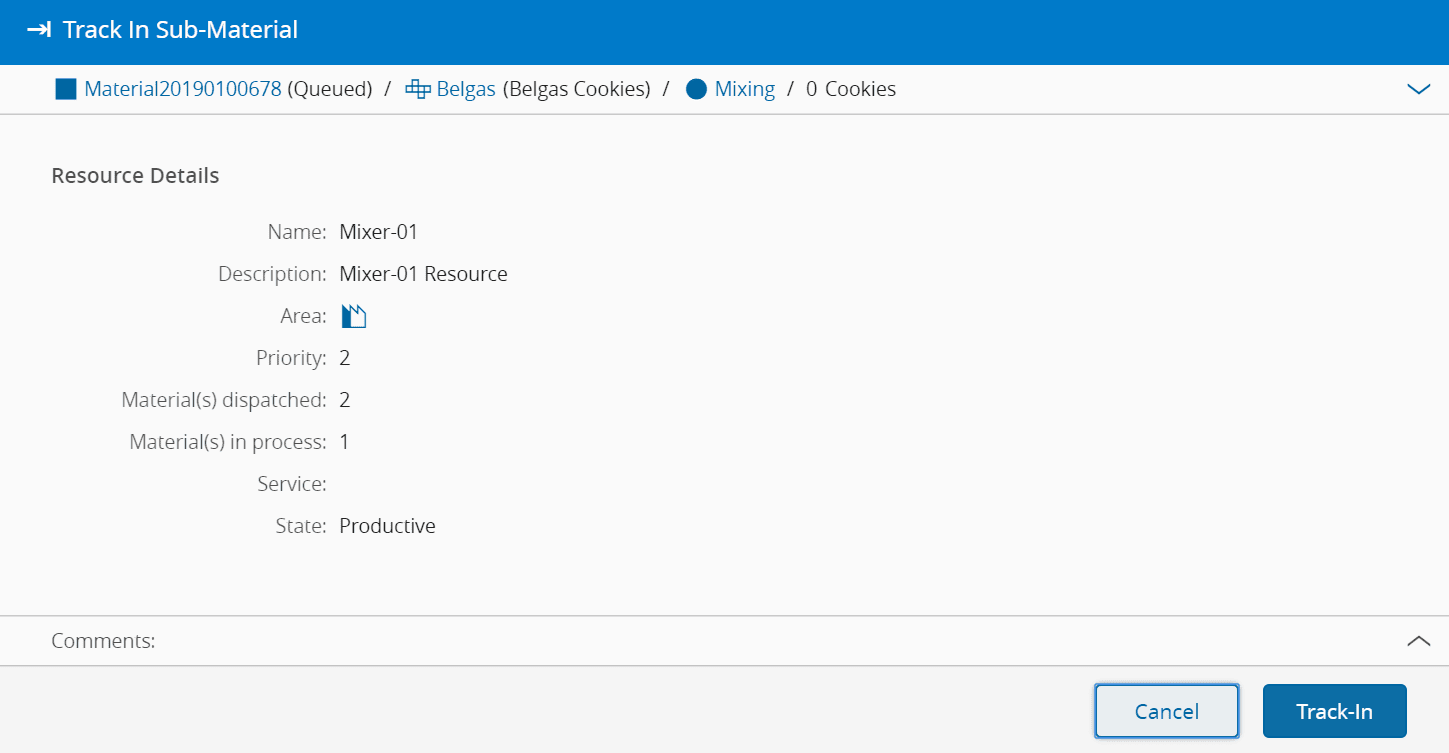

3. Verify the Resource details and define the Resource State.
4. Click Next.

Step 2: Record Loss/Bonus#
