Create Parameter#

Parameter.Create

Parameter.CreateTemplate

Parameter.CreateFromTemplate

Overview#

This operation is used to create a Parameter. A template can also be created using a similar procedure and there is also the possibility of using a template to create the new object as well. This selection can be done in the main entity menu.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Parameter does not currently exist in the system.

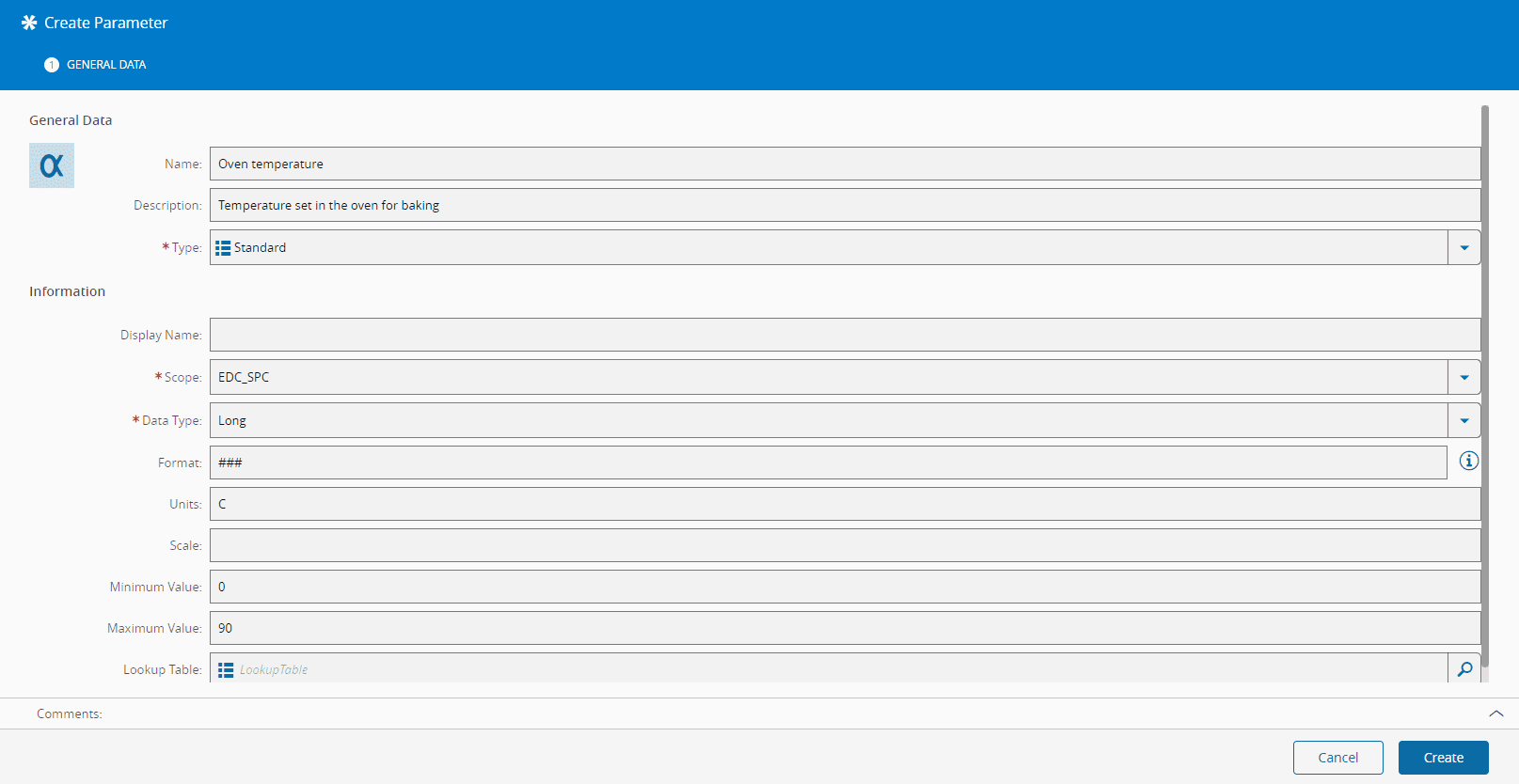

Sequence of Steps#

Step 1: General Data#

1. Provide a name for the Parameter.
2. Optionally, provide a description of the Parameter.
3. Select the Parameter type. The list of possible values is taken from the lookup table ParameterType.

Step 2: Information#

1. Specify the display name - the display name if present will be displayed in the data collection screens.

2. Select the scope of the Parameter:

Table: Parameter Scope possible values

1. Select the data type of the Parameter (if scope is KPI, the data type must be numeric):

   • Boolean
   • DateTime
   • Decimal
   • Duration
   • Long
   • String
   • URL

2. Depending on the data type, specify the format of the Parameter, used for input and display purposes:

   Decimal and LongStringDate and TimeDuration, Boolean and URL

   • 0 - Zero placeholder, replaces the zero with the corresponding digit if one is present; otherwise, zero appears in the result string (example: 1234.5678 ("00000") → 01235).
   • # - Digit placeholder, replaces the "#" symbol with the corresponding digit if one is present; otherwise, no digit appears in the result string (example: 1234.5678 ("#####") → 1235); no digit appears in the result string, if the corresponding digit in the input string is a non-significant 0 (example: 0003 ("####") → 3).
   • . - Decimal point, determines the location of the decimal separator in the result string (example: 0.45678 ("0.00") → 0.46).
   • e - Scientific notation, the number that follows e is the number of decimal places of the base of the result; the exponent of the result will always have three digits (example: 1052.0329112756 ("e2") → 1.05e+003).
   • 0E00- Custom scientific notation format - (example: 86000 ("0.###E00") → 8.6E04).
   • c - Currency pattern (example: 111.23 ("c3") → $111.230).
   • f - Fixed-point pattern (example: 50123.36 ("f3") → 50123.360).
   • g - General, the number that follows g is the maximum number of digits the number will have (example: 100 ("g3") → 100); if the number has more digits than the configured digits in the format, it is displayed in scientific notation (example: 10000 ("g3") → 1e+04).
   • n - Number pattern, this adds the thousand separator whenever necessary (example: 50123.36 ("n3") → 50,123.360).
   • p - Percentage (example: 0.523 ("p2") → 52.30%).
   • \ - Escapes a mask character, turning it into a literal. "\" is the escape sequence for a backslash.
   • "ABC" - Literal string - Characters enclosed in single or double quotes are copied to the result string, and do not affect formatting (example: 1200 ("AB 000") → AB 1200).

   Note

   If the chosen alphanumeric character is reserved to be used to define a pattern, it is necessary to escape it (example: 1200 ("\n000") → n1200).

   Info

   For more information, see Custom numeric format strings and Exponential format specifier (E) ⧉.

   • c - Currency pattern. (example: 111.234 ("c3") → $111.234).
   • n - Decimal pattern, this adds the thousand separator whenever necessary (example: 50123.36 ("n3") → 50,123.360).
   • p - Percentage pattern (example: 111.23 ("p2") → 111.23%).
   • d - Digit pattern, required (example: 111.234 ("d3") → 111).
   • # - Digit pattern, optional. If this position is blank in the mask, it will be rendered as the character in the Placeholder property. You can add and delete signs (example: 111.234 ("#3.1") → 111.2).
   • A - Alphanumeric, required.
   • a - Alphanumeric, optional.
   • L - Letter, required. Restricts input to the ASCII letters a-z and A-Z. This mask element is equivalent to [a-zA-Z] in regular expressions.
   • l - Letter, optional.
   • 0 - Digit. Accepts any digit between 0 and 9.
   • 9 - Digit or space. Accepts any digit between 0 and 9, plus space.
   • & - Character. Accepts any character. The rule is equivalent to S in regular expressions.
   • C - Character or space. Accepts any character. The rule is equivalent to . in regular expressions.
   • < - To lower token. Must be included only once in the beginning of the mask (example: <AAA - ccc).
   • > - To upper token. Must be included only once in the beginning of the mask (example: >AAA - CCC).
   • \ - Escapes a mask character, turning it into a literal. "\" is the escape sequence for a backslash.
   • All other characters - Literals. All non-mask elements will appear as themselves within the editor. Literals always occupy a static position in the mask at run time, and cannot be moved or deleted by the user.

   • y - Year as a one or two digit number.
   • yy - Year as a two digit number.
   • yyyy - Year as a four digit number.
   • M- Month as a number from 1 through 12. A single-digit month is formatted without a leading zero.
   • MM- Month as a number from 1 through 12. A single-digit month is formatted with a leading zero.
   • d- Day of the month as a number form 1 through 31. A single digit day is formatted without a leading zero.
   • dd- Day of the month as a number form 1 through 31. A single digit day is formatted with a leading zero.
   • ddd- Abbreviated name of the day of the day of the week (example: "Fri").
   • dddd- Full name of the day of the day of the week (example: "Friday")
   • h- Hour as a number from 1 through 12. A single-digit month is formatted without a leading zero.
   • hh- Hour as a number from 1 through 12. A single-digit month is formatted with a leading zero.
   • H- Hour as a number from 0 through 23. A single-digit month is formatted without a leading zero.
   • HH- Hour as a number from 0 through 23. A single-digit month is formatted with a leading zero.
   • m- Minute as a number from 1 through 59. A single-digit month is formatted without a leading zero.
   • mm- Minute as a number from 1 through 59. A single-digit month is formatted with a leading zero.
   • s- Seconds as a number from 1 through 59. A single-digit month is formatted without a leading zero.
   • ss- Seconds as a number from 1 through 59. A single-digit month is formatted with a leading zero.
   • f- Tenths of a second in a date and time value.
   • ff- Hundredths of a second in a date and time value.
   • fff- Milliseconds of a second in a date and time value.
   • tt- AM/PM indicator.

   Does not need format specification.

3. Specify the units of the Parameter.

4. Optionally, define a scale for the Parameter in terms of powers of 10.

   Info

   This field is typically used for reporting purposes with no functional effect on the system. As an example, you can create a Megawatt parameter and set the scale to 6 representing 10^6; or a Picoampere and set the scale to -12 representing 10^-12.

5. Optionally, define a minimum value for the Parameter (only for numeric parameters).

6. Optionally, define a maximum value for the Parameter (only for numeric parameters).
7. Optionally, define a lookup table to be used as a source of values for the Parameter (note that depending on the type the lookup table must contain values that match that type).
8. Select Create to complete the operation and the new Parameter will be created.
