Create Printable Document#

PrintableDocument.Create

Overview#

This operation is used to create a Printable Document.

Setup#

No specific setup is required other than to meet the precondition of the transaction.

Preconditions#

• The Printable Document name must be provided and must be unique.

Sequence of Steps#

There are several ways to create a new versioned object. Depending on the level, follow these steps to get started:

• Entity - in the landing page of this entity type in the Business Data menu or in the details page of an existing entity of the same type, select New on the top ribbon. For more information, see Creating Entity Objects.
• Revision - if you want to create a new revision, go to the New dropdown button on the top ribbon and select Revision. For more information, see Revisions.
• Version - if you want to create a version associated to an existing revision, go to the New dropdown button on the top ribbon and select Version. For more information, see Versions.

Step 1: Change Set#

1. Select an existing Change Set or if configured to support implicit Change Sets, it is also possible to select the option Use Automatic Change Set.
2. Select the Approval Role.

Step 2: General Data#

1. Enter the Printable Document name.
2. If you are creating a new version, the revision that was selected when you started the process will be the revision to which this version will be associated. If you are creating a new entity or revision (with a new version associated to it), provide a name for the revision or it will be automatically generated for you. For more information on revision naming, see Revision Naming.
3. Enter the Printable Document description.
4. Select the Printable Document type. The list of possible values is taken from the PrintableDocumentType Lookup Table.

5. Select the Scope to be used for this Printable Document.

   Note

   The Lot Traveler scope carries a special meaning for the system. It means that the Printable Document is intended to be used as a Lot Traveler which works by dynamically assembling the different Step Printable Documents of the Material. Additionally, if the Scope is changed from any value other than Lot Traveler to Lot Traveler, there should not be any version for which the Layout Content Type is set to External.

   Weigh and Dispense Label scopes are to be used exclusively within the Weigh and Dispense Material operations. For more information, see Weigh and Dispense Material.

6. Optionally, select an Entity Type to which the Printable Document applies to. Take the following into account:

   • If the Scope is Label, any Entity Type can be selected.
   • If the Scope is Lot Traveler, the Material Entity Type is pre-selected and cannot be changed.
   • If the Scope is Packing, the Package Entity Type is pre-selected and cannot be changed.
   • If the Scope is Weigh And Dispense Label, the Material Entity Type is pre-selected and cannot be changed.

7. Select the Layout Content Type:

   • Internal (default)

   • External (optionally provide External Layout information)

     Info

     For more information, see User Interactions.

8. Select whether the Print History is to be stored or not.

   Note

   The Print History is stored but you can only visualize it in the Reprint Material Documents page, Step 1: Documents, and only if you also enabled the Store Layout History property.

9. Select whether the Layout History should be stored together with the Print History.

   Note

   The Layout History is stored but you can only visualize it in the Reprint Material Documents page, Step 2: Printer, and only if you also enabled the Store Print History property.

10. Select the Printer Type. The list of possible values is taken from the PrinterType Lookup Table. If the type is Lot Traveler, then the printer type General is pre-selected and cannot be changed.

11. Optionally, select a Default Printer. The list of available printers is defined in the PrinterTypePrintersContext Smart Table.

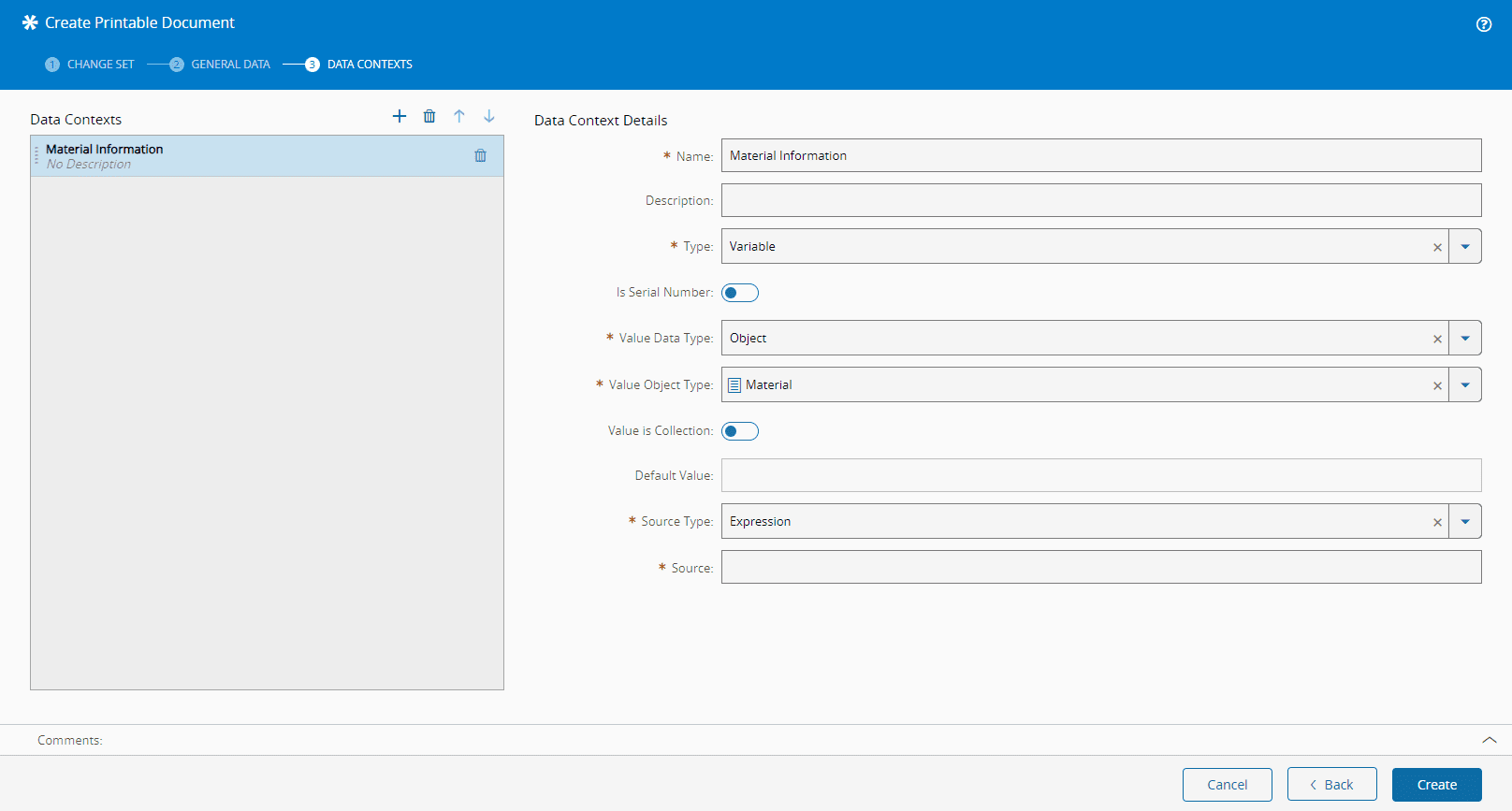

Step 3: Data Context#

This step is used to define the context that is supplied to the Printable Document. In case of Lot Traveler types, the context is pre-defined (although it only appears once the wizard is closed) and cannot be changed.

1. Specify as many data context items as necessary (using the toolbar and buttons to add and remove items) and for each of them, provide:

   • The data context name.
   • The data context description.
   • Select the data context item's type:
     • Input for items whose values are to be input by the user.
     • Variable for items whose values will be automatically calculated.
   • Select whether the data context represents a Serial Number or not.
   • Select the Value Data Type of the data context value.
   • Select the item Value Object Type, only in case the value data type is Object.

   • Select whether the item Value is a collection of values or a single value.

     Note

     Context items of type Input can only be used as collections for PrintableDocuments of type Weigh And Dispense Label.

   • Optionally, enter a Default Value, in case the Value Data Type is not Object.

   • Select the Source Type, which depends on the Type and Value Data Type and can be:
     • Free or LookupValue for items of Type Input and Value Data Type different from Object.
     • Free or Query for items of Type Input and Value Data Type equal to Object.
     • Rule or Expression for items of Type Variable and Value Data Type different from Object.
     • Rule, Expression or Query for items of Type Variable and Value Data Type equal to Object.
     • NameGenerator for items of Type Variable, Is Serial Value set to true, and Value Data Type set to String.
   • Select or enter the Source:
     • For LookupValue Source Types select a Lookup Table.
     • For Rule Source Types select a Rule.
     • For Query Source Types select a Query.
     • For NameGenerator Source Type select a Name Generator instance.
     • For Expression Source Types enter an expression in the form:
       • $AppliesToValue[.Property][.Property] - to access properties of the Object of Type Value Object Type.
       • $DataContextItemName[.Property][.Property] - to access properties of the Data Context item.
         • Some examples:
           • $AppliesToValue.Facility.Name - to access the Facility name if the Applies To Object is a Material.
           • $AppliesToValue.Product - to access the Product if the Applies To Object is a Material.
   • Define the input/calculation order by using the toolbar and .
