Cancel Line Setup#

🔒 Resource.CancelLineSetup

Overview#

This operation is used to Cancel an ongoing setup in the Sub-Resource(s) of a Line Resource.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The main Resource is of processing type Line.
  • The Sub-Resource property In Setup must be true.
  • The Sub-Resource property Current Material is defined.

Sequence of Steps#

Step 1: Cancel Setup#

  1. Select a Resource matching the preconditions.

  2. Select the Cancel Line Setup button on the top ribbon to open the wizard:

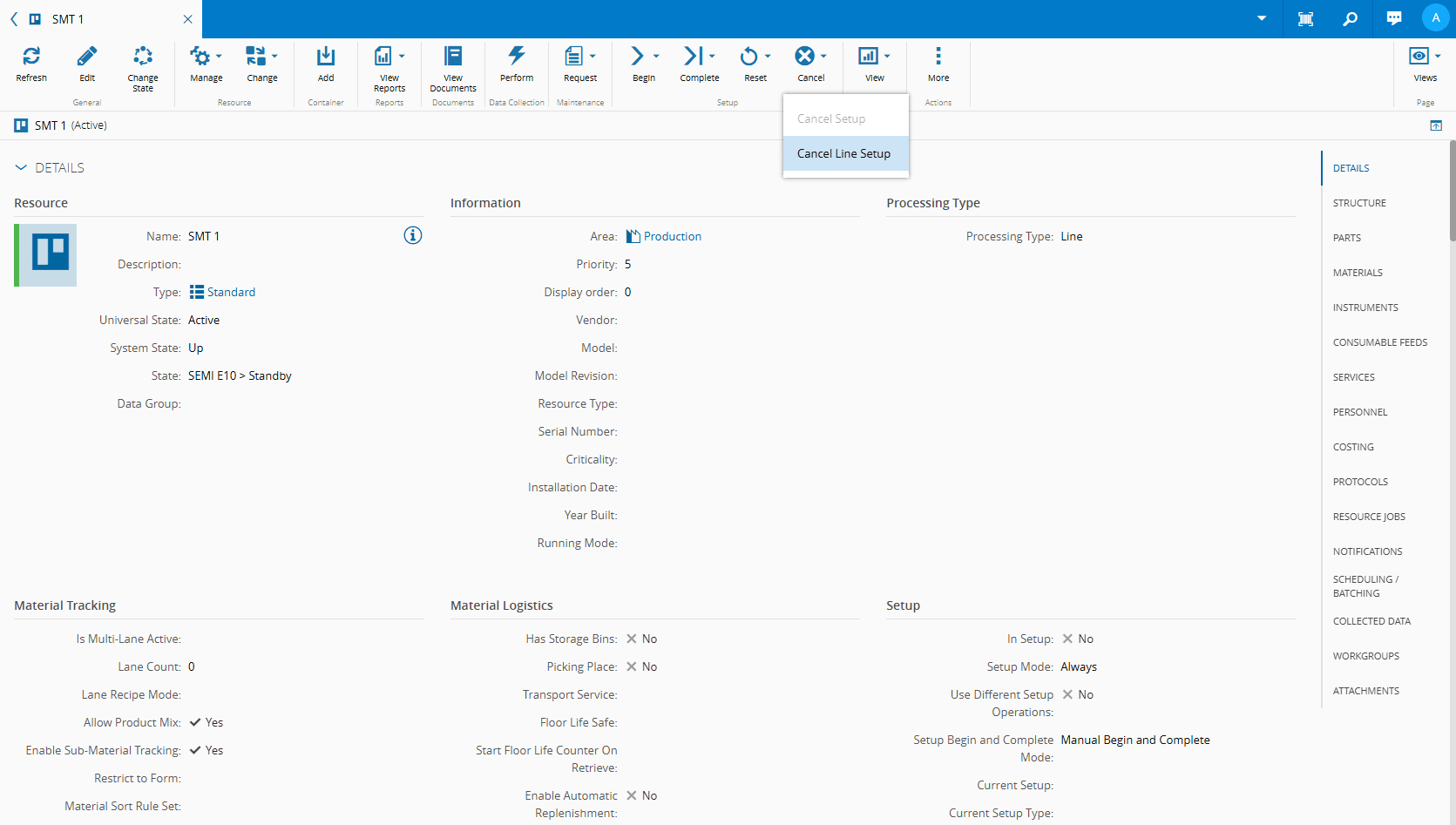

    Screenshot showing the Cancel Line Setup button on the top ribbon.

  3. In the Cancel Line Setup (Sub-Resources) wizard select the Resource(s) you want:

    Screenshot showing a Cancel Line Setup wizard with selected resources.

  4. Optionally, enter a comment.

  5. Select Cancel Setup to complete the operation.

Info

You can also access the Cancel Line Setup button through the Resource View.
