Manage Resource Instruments#

Resource.ManageInstruments

Overview#

This operation is used to associate Resources of Processing Type Instrument to a specific Resource of Processing Type Process or Line.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Resource where the Instrument is to be associated exists, is Active, Non-Template, and is of Processing Type Process Or Line.
• All Instruments to be associated with the Resource are Active, Non-Template, and in the same Facility as the Resource.
• An Instrument which is marked as InstrumentExclusiveUsage must not already be associated with another Resource.

Sequence of Steps#

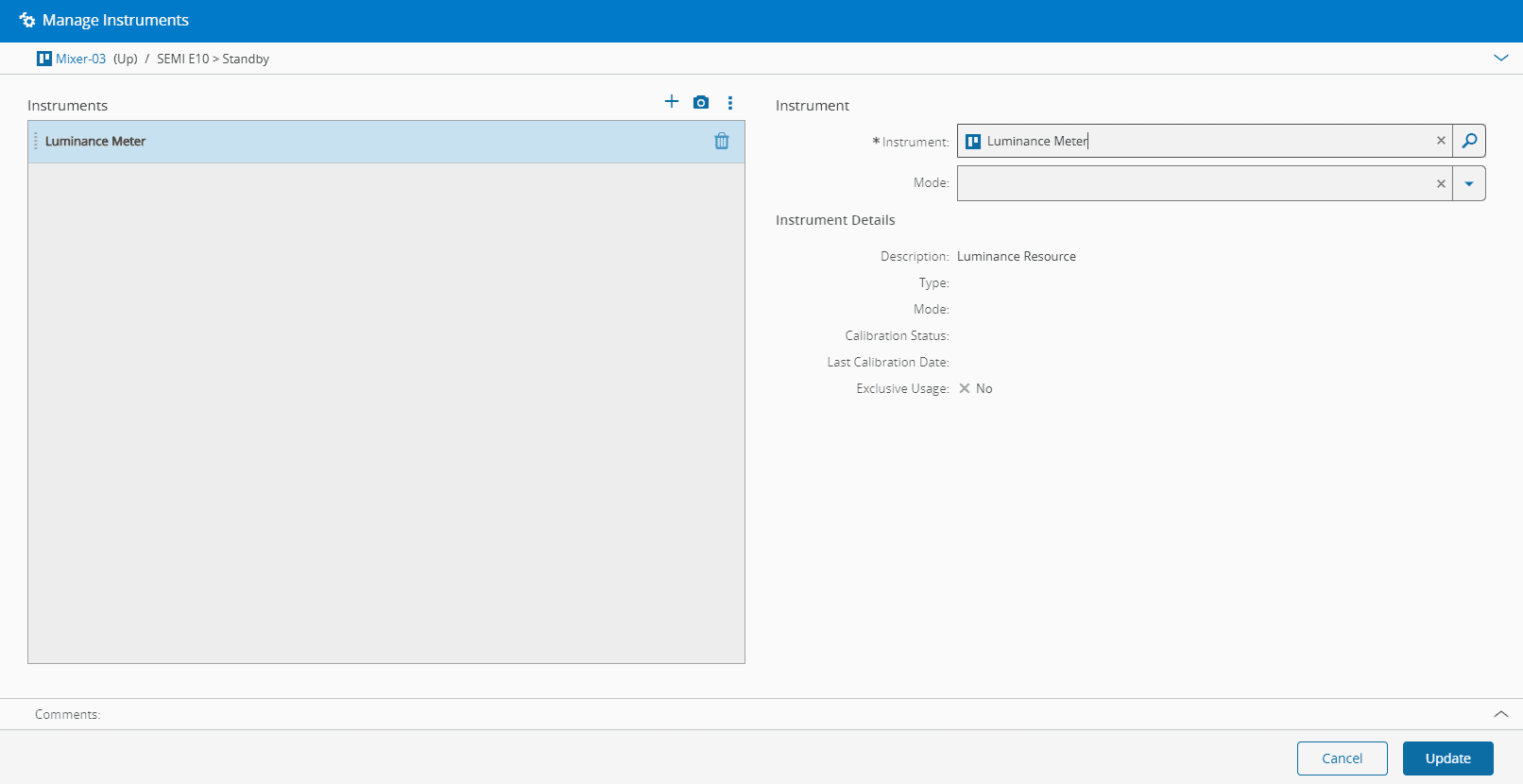

1. Select an appropriate Resource, navigate to the Instruments section and press the Manage button.

2. Add as many instruments as desired (press in the top right of the grid to add, and to remove, ordering the items with the and buttons) - specifying one item minimum - providing for each item the following information:

   • A specific instrument Resource to be measured.
   • The Measurement mode, if available.

   Info

   Details on the Resource will be displayed for each individual item.

3. Select Update to complete the operation.

Apply One Instrument to All Applicable Parameters#

If an Instrument is used to measure multiple Parameters, you can choose the Apply to All option, as shown in the wizard below.
