View Line Setup#

🔒 Resource.ViewLineSetup

Overview#

This operation is used to View an ongoing setup in the Sub-Resource(s) of a Line Resource.

Note

This use-case can only be triggered from the Resource View as it requires both the context of a Material and a Resource.

For more information see, View Setup.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The main Resource is of processing type Line.
  • The Material must be tracked in.

Sequence of Steps#

Step 1: General Data#

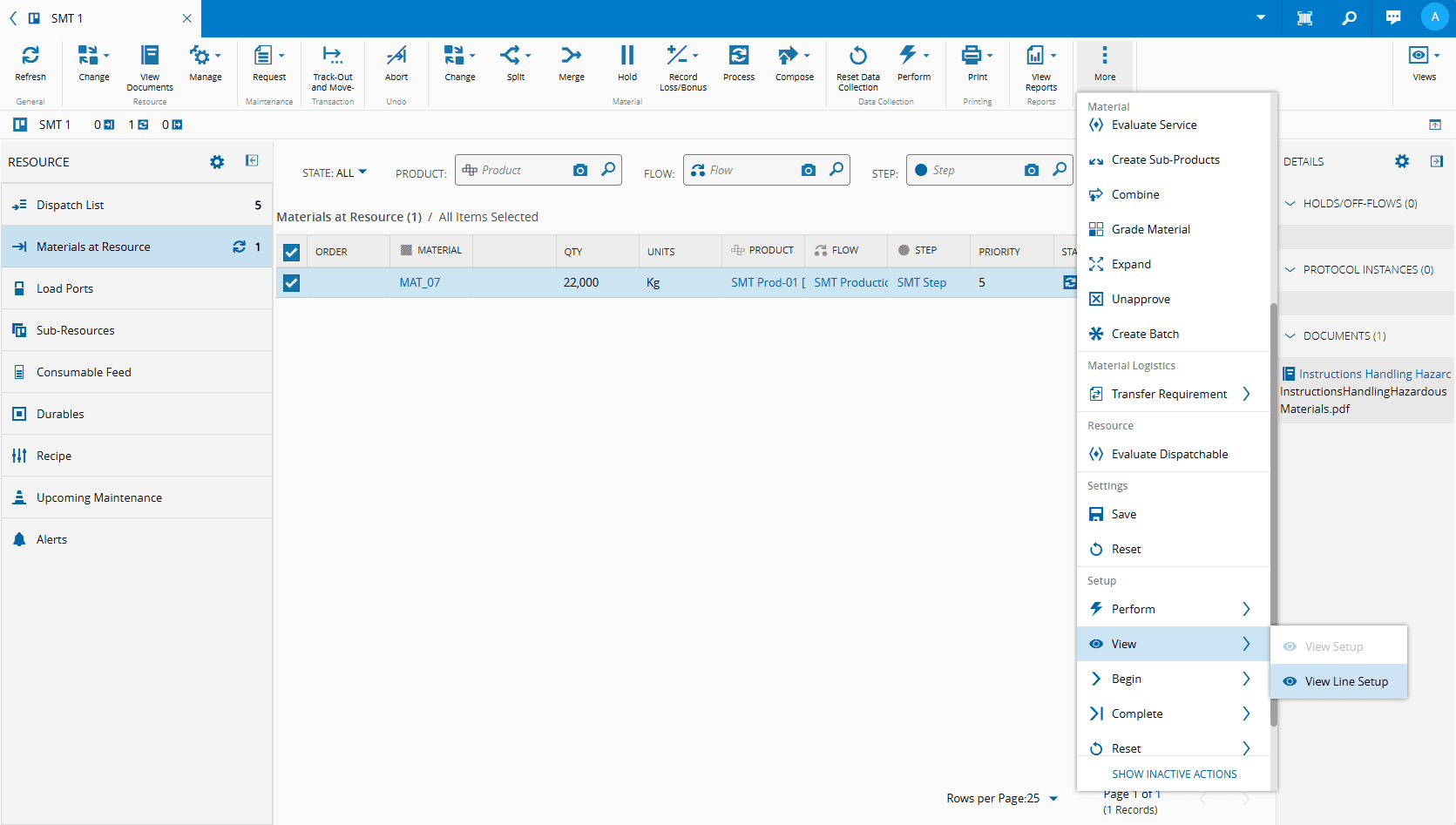

  1. Select a Resource and then select View Line Setup:

    Screenshot showing a UI with a selection of a Resource and View Line Setup options.

  2. In the View Line Setup wizard the available information is displayed:

    Screenshot showing a UI with no specific details mentioned, illustrating the step for general data in the View Line Setup wizard.

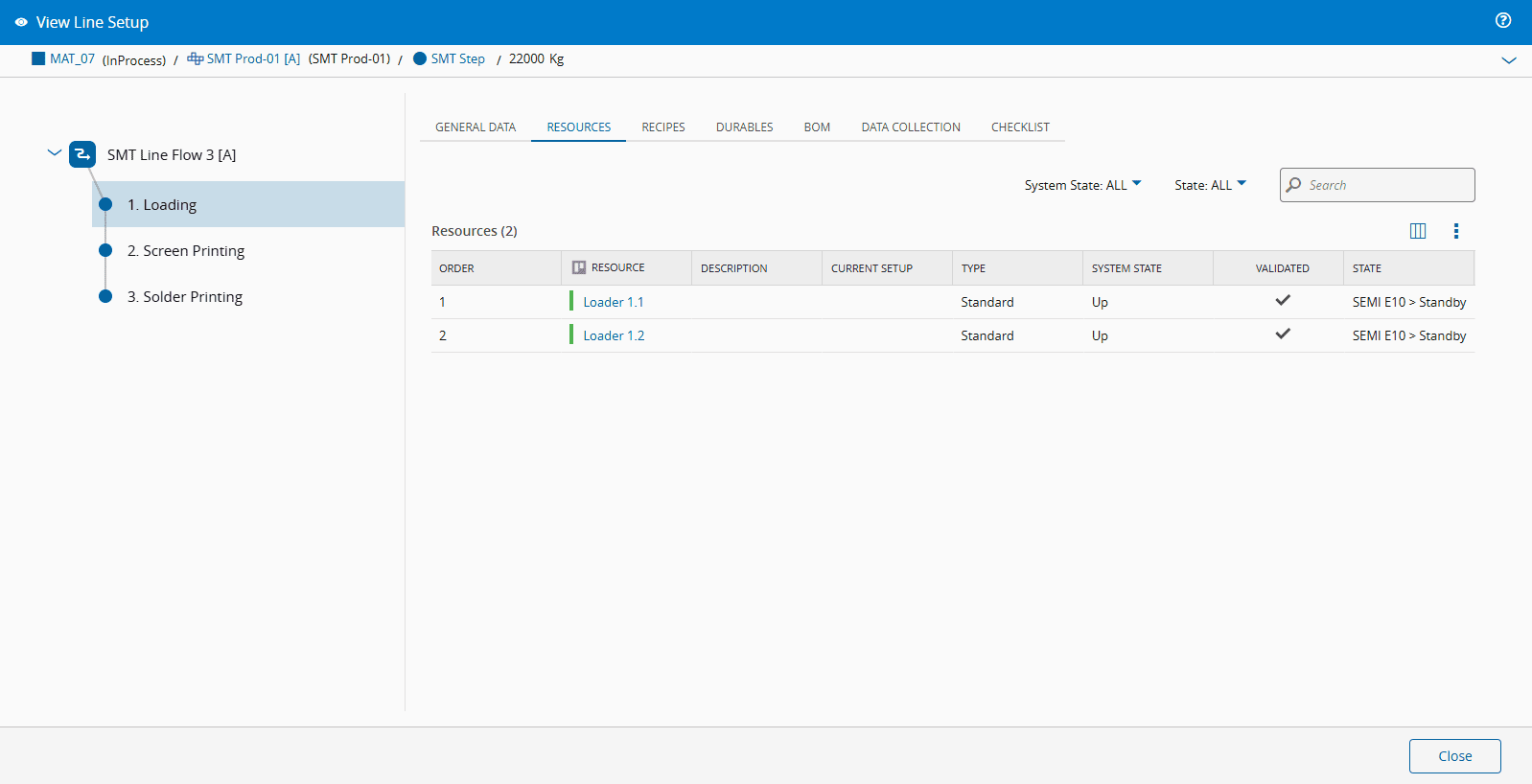

  3. If you select an individual tab, in this case Resources, which lists the available Sub-Resources for setup, you will be able to access its information:

    Screenshot showing a UI with general data fields.

    The following images are examples of some of the other available tabs.

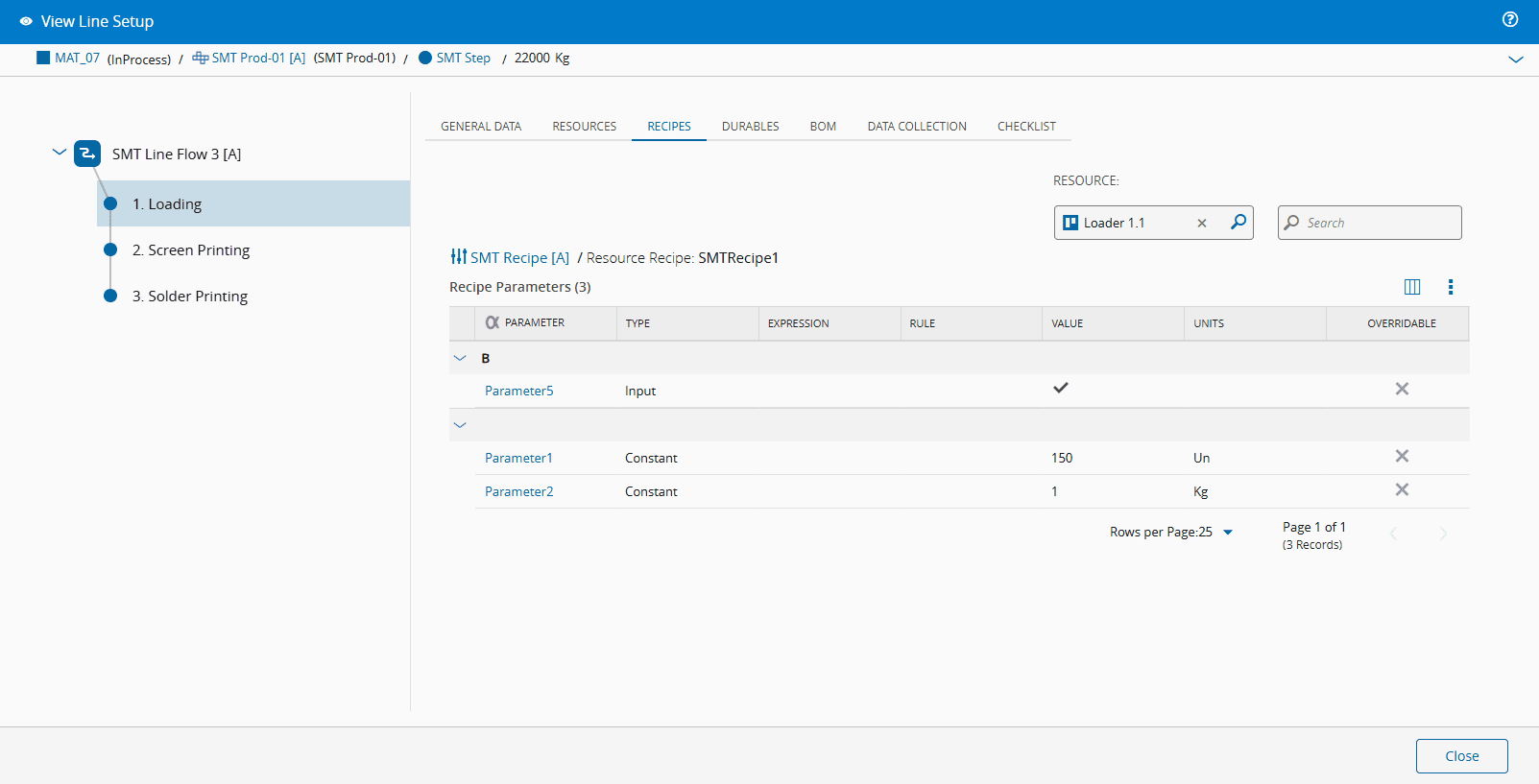

    This image shows the Recipe and its configurations:

    Screenshot showing a tabbed interface with "Resources" selected.

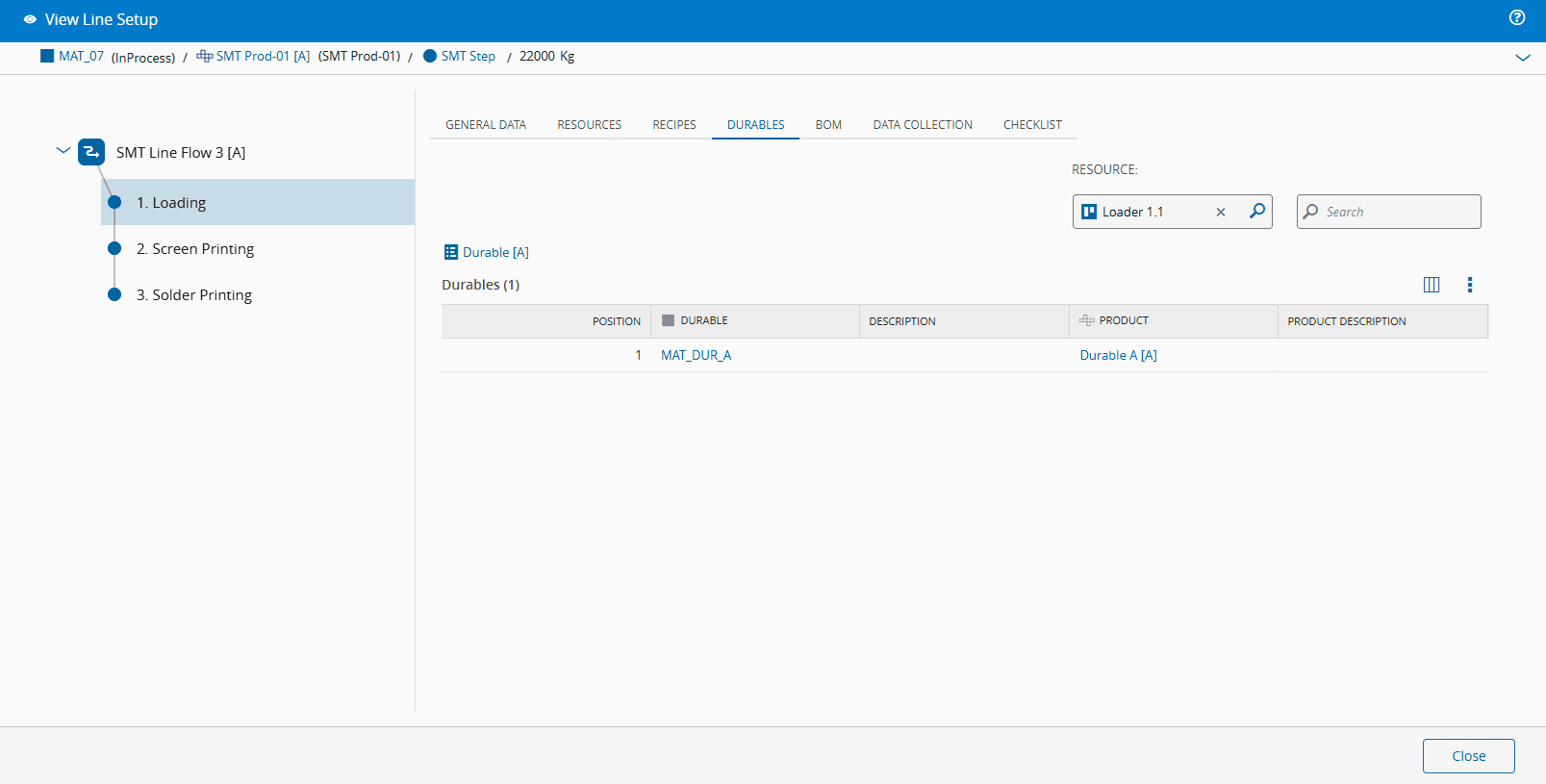

    This image provides you with information on Durables:

    Screenshot showing a UI with individual tabs, including "Resources" and "Sub-Resources", used for setting up available resources.

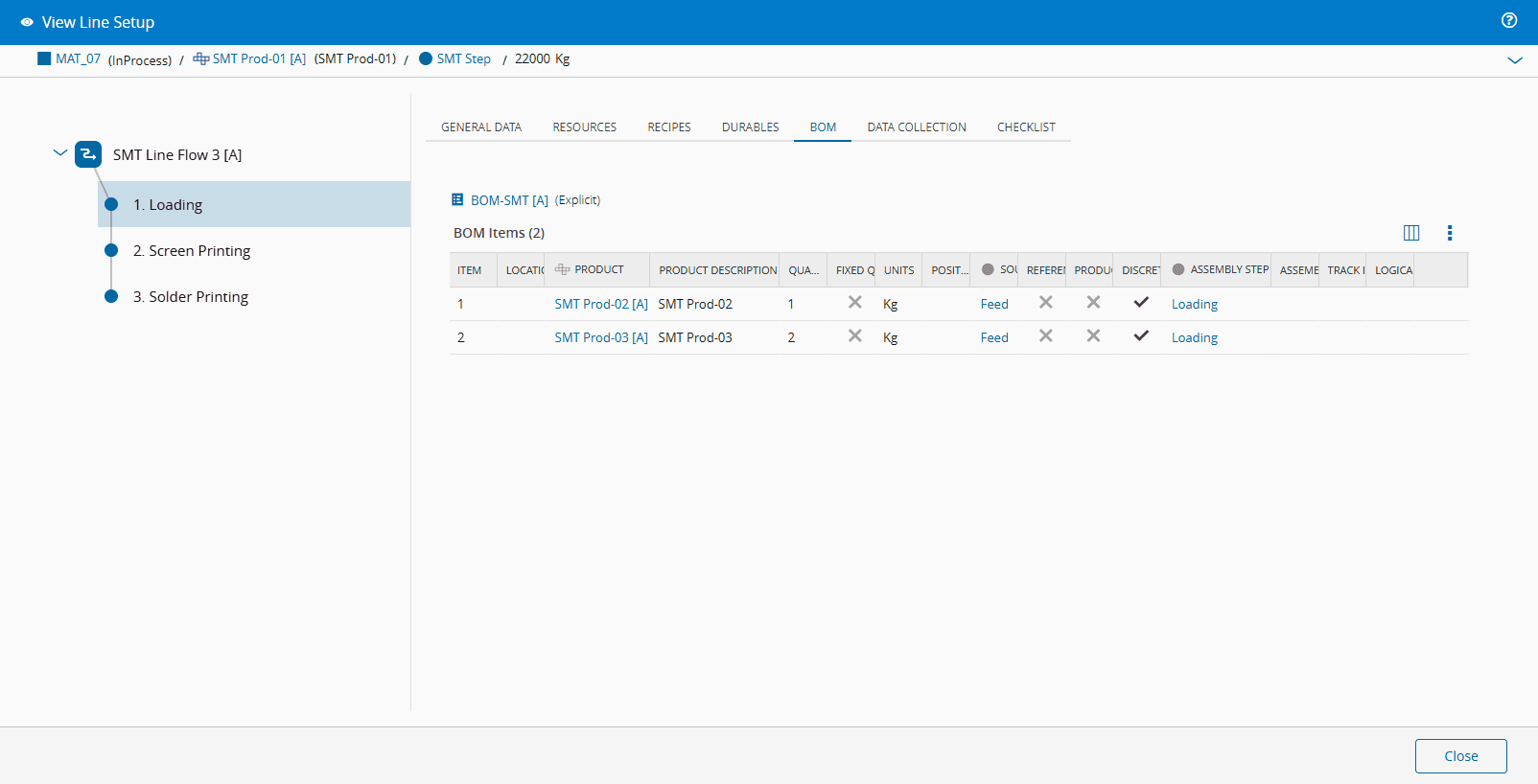

    This image displays the BOM settings:

    Screenshot showing a data entry screen with a field labeled "YB suri cian 3141".

  4. Review the information and then select Close.
