Create Service#

Service.Create

Service.CreateTemplate

Service.CreateFromTemplate

Overview#

This operation is used to create a Service. A template can also be created using a similar procedure and there is also the possibility of using a template to create the new object as well. This selection can be done in the main entity menu.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Service does not currently exist in the system.

Sequence of Steps#

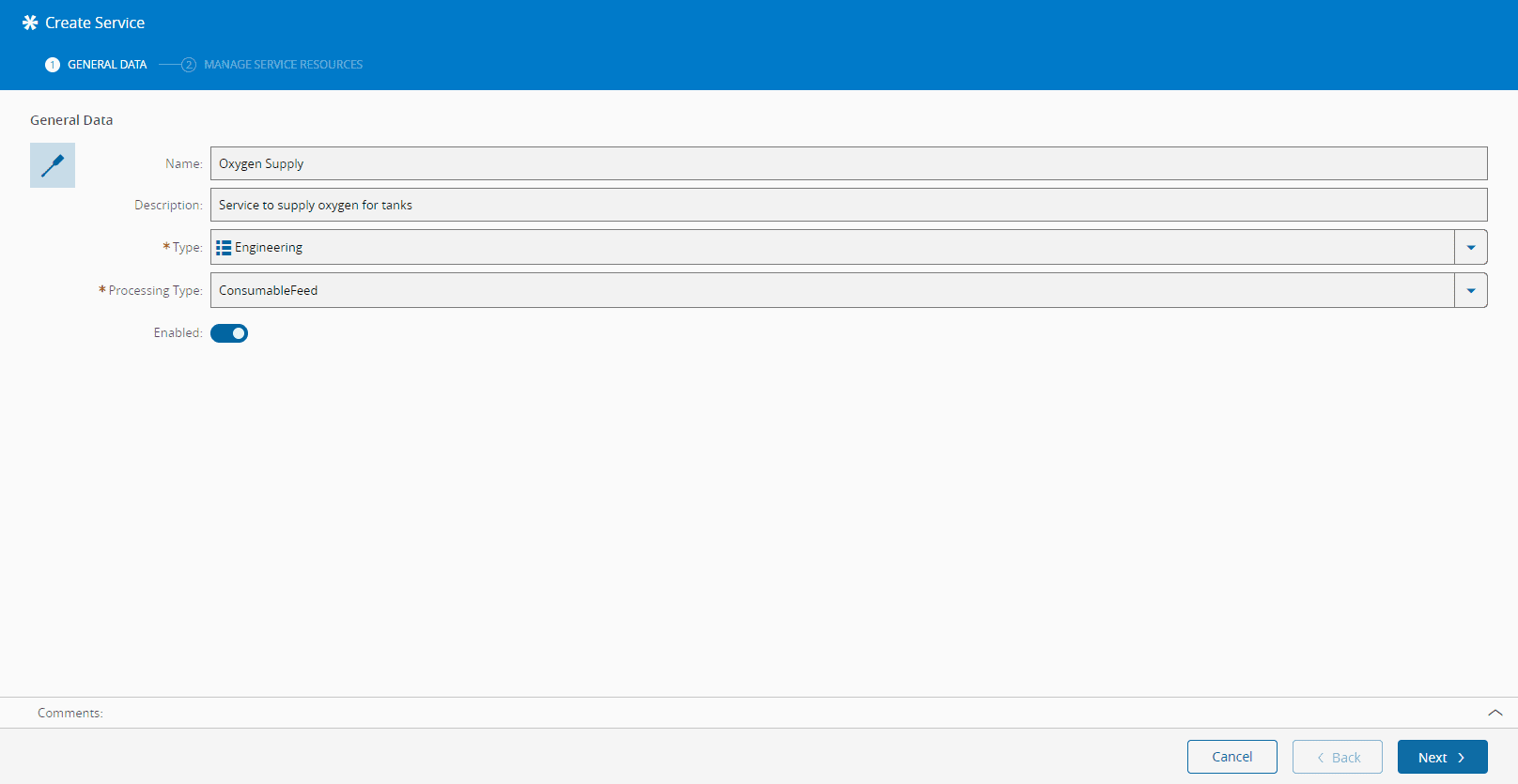

Step 1: General Data#

1. Provide a Name for the Service.
2. Optionally, enter a Description.
3. Select the Type (the values are taken from the lookup table ServiceType).
4. Optionally, select the Data Group.
5. Select the Processing Type:
   • Consumable Feed - for Resources that are used to provide consumables to other Resources.
   • Instrument - for a Resource that is used for measuring a value in a certain unit of measure.
   • Process - for Resources that can process Material.
   • Storage - for Resources that can be used to store and retrieve Material.
   • Transport - for Resources used as a means of transport.
6. Select whether or not the Service is Enabled.

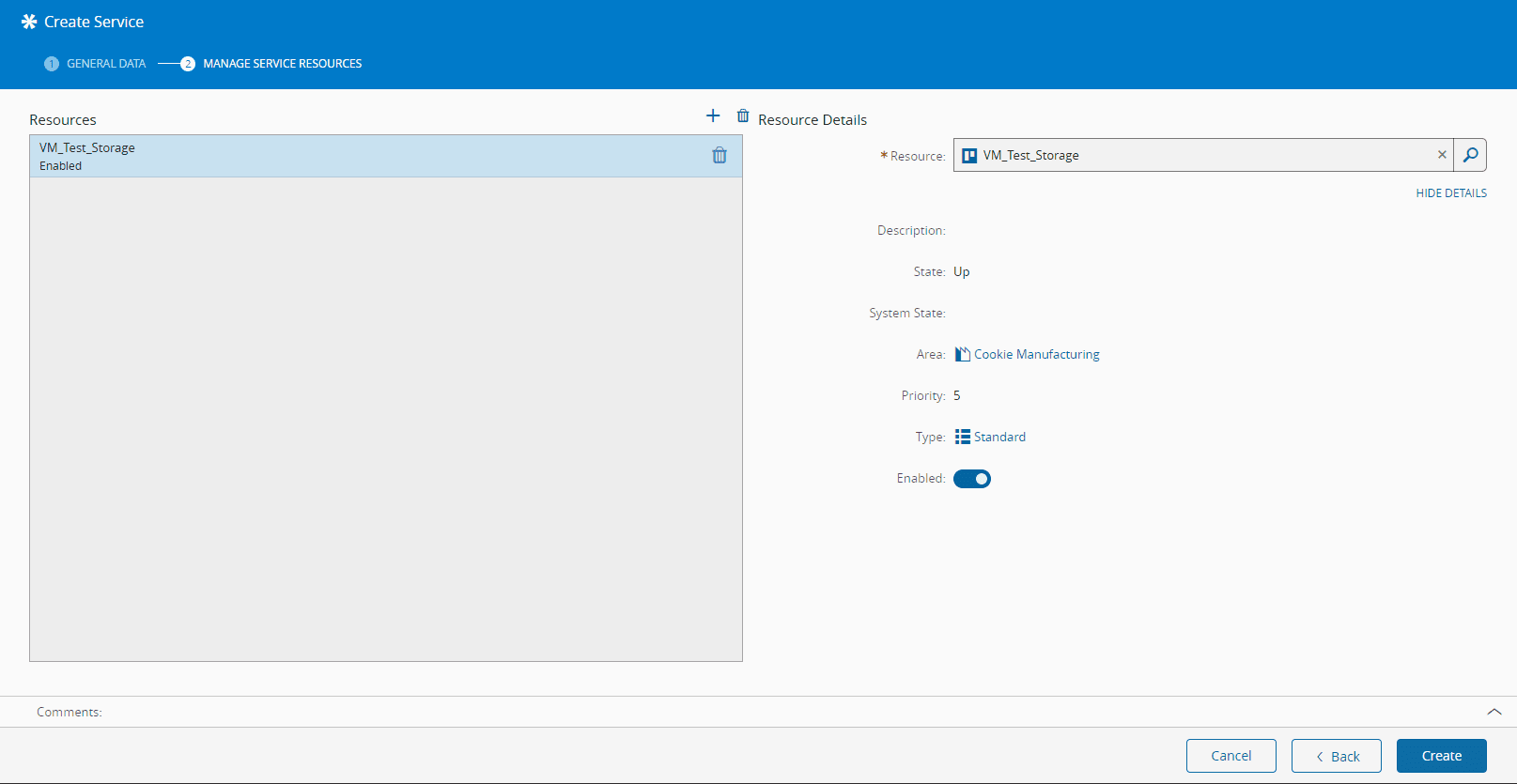

Step 2: Manage Service Resources#

1. Add one entry in the left side panel for each of the Resources that will provide the Service. Each entry should be configured on the right side panel by selecting the Resource and by setting the Service as enabled or disabled in that specific Resource.

2. Select Create to complete the operation and the new Service will be created.
