Create Sort Rule Set#

🔒 SortRuleSet.Create

🔒 SortRuleSet.CreateTemplate

🔒 SortRuleSet.CreateFromTemplate

Overview#

This operation is used to create a Sort Rule Set. A template can also be created using a similar procedure and there is also the possibility of using a template to create the new object as well. This selection can be done in the main entity menu.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The Sort Rule Set does not currently exist in the system.

Sequence of Steps#

Step 1: General Data#

  1. Provide a name for the Sort Rule Set.
  2. Optionally, provide a description of the Sort Rule Set.
  3. Select the Sort Rule Set type. The list of possible values is taken from the lookup table SortRuleSetType.

  4. Select scope:

    • Material - for Get Resource List For Material.
    • Resource - for Get Material List For Resource and Get Material List for Step.

Info

The Material sort rules always have an implicit sort rule that gives more priority to Hot Materials.

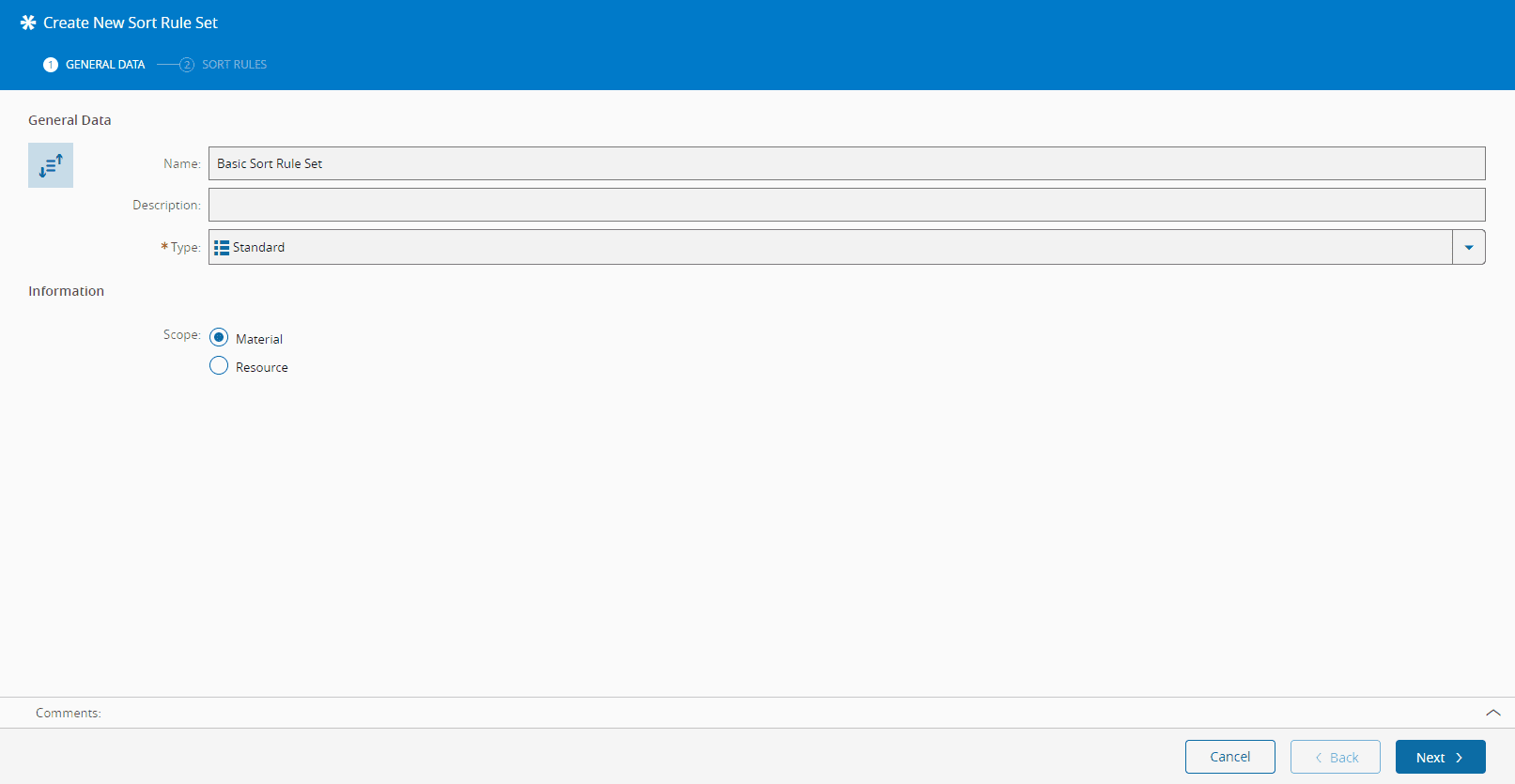

create_sort_rule_set_step_one

Step 2: Sort Rules#

  1. Add as many Sort Rules as needed, specifying:

    • Sort Rule
    • Sorting Direction - Ascending or Descending

Info

Use the Up and Down buttons to change the order of the Sort Rules. The Sort Rules are applied in the defined sequence.

create_sort_rule_set_step_two
