Manage Inspection Information#

Step.Edit

Overview#

This operation is used to edit the settings for the inspection information associated to the Step.

Setup#

No specific setup is required other than to meet the precondition of the transaction.

Preconditions#

• The Step exists and it is Active.

Sequence of Steps#

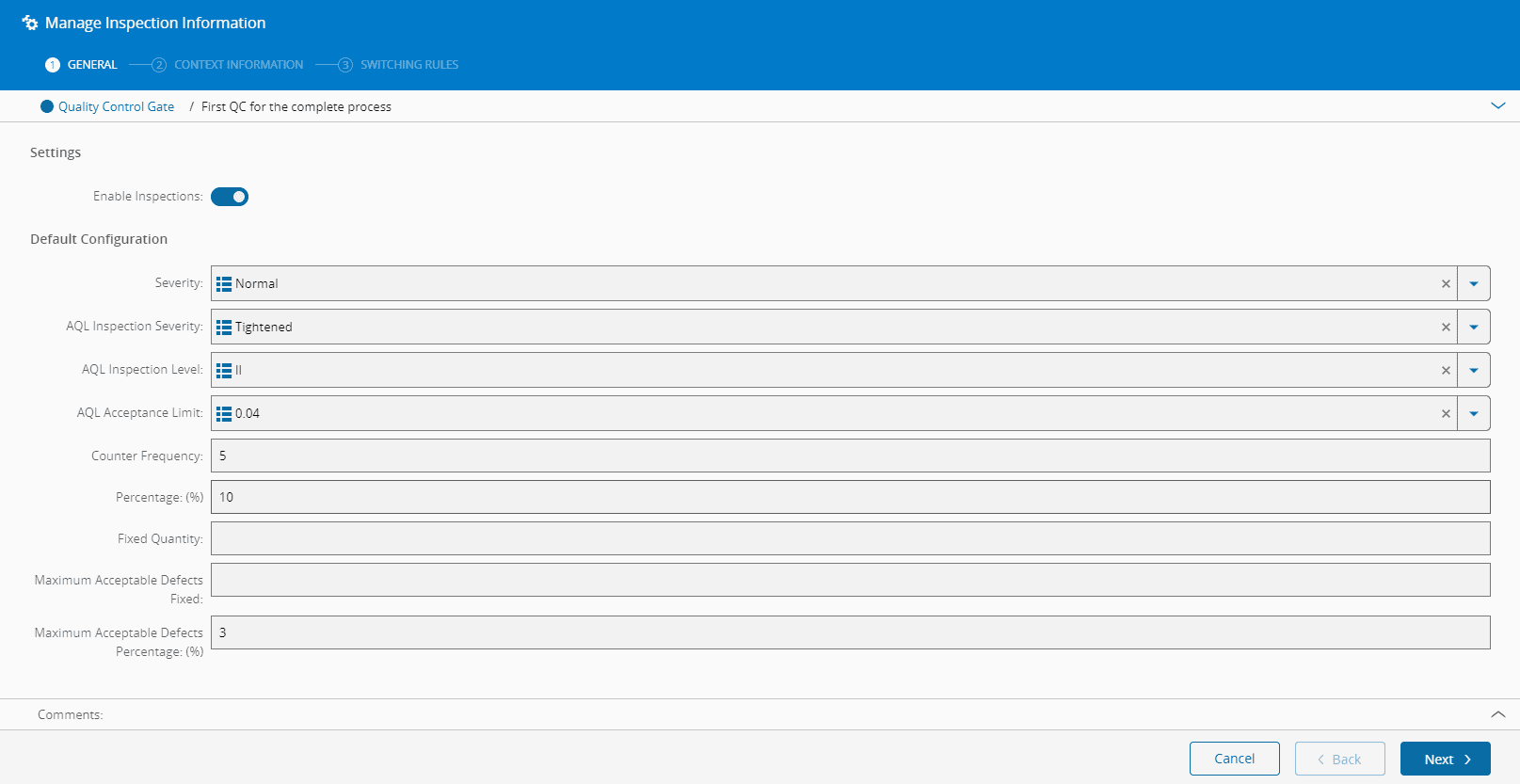

Step 1: General#

1. Select if the Step will allow Inspections.

2. If the Enable Inspections option is selected, choose the following information to add to the Step inspection severity properties:

   • Severity (values retrieved from the InspectionSeverity Lookup Table).
   • AQL Inspection Severity (values retrieved from the AQLSeverity Lookup Table).
   • AQL Inspection Level (values retrieved from the AQLInspectionLevel Lookup Table).
   • AQL Acceptance Limit (values retrieved from the AQLAcceptanceLimit Lookup Table).
   • The default inspection Counter Frequency, used for automatic configurations (must be greater than 1).
   • The default inspection Percentage, used for automatic configurations.
   • Fixed Quantity (must be greater than 0).
   • Maximum Acceptable Defects Fixed (must be equal or greater than 0).
   • Maximum Acceptable Defects Percentage (must be a value between and including 0 and 100).

3. If the Enable Inspections option is selected, two further panels will be available and selecting Next will allow editing the remaining information, otherwise select the Update button to close the wizard.

Step 2: Context information#

Select one or more contexts from the possible items listed in the panel. Each of the singular contexts comprise a property of the StepInspectionPlanContext Smart Table:

• Material Type
• Product
• Product Group
• Resource
• Model
• Resource Type
• Flow
• Logical Flow Path

Step 3: Switching Rules#

1. A set of Inspection Severity switching rules can be specified. For each switching rule, specify:

   • From Inspection Severity (values retrieved from the InspectionSeverity Lookup Table)
   • To Inspection Severity (values retrieved from the InspectionSeverity Lookup Table)

   • Direction of the switch:

     • Tightening
     • Reducing

   • Rule:

     • If the Direction is Tightening, the Rule must be of scope Inspection Tightening.
     • If the Direction is Reducing, the Rule must be of scope Inspection Reducing.

   • Rule Parameter, which will complete the definition of the N variable in the possible rules. The available rules are listed in the Step Inspection Rules page.

   • Filter Type:

     • Time - in this case, define also the time interval to determine the filter.
     • Last Occurrences (must be greater than zero).

   • New default values can be set for the To Inspection Severity.

2. Select Update to complete the operation.
