Substrate Map Mask Page#

🔒 SubstrateMapMask.Show

The Substrate Map Mask page displays general information on the specific Substrate Map Mask. In addition it enables you to perform all the operations that can be performed on a specific Substrate Map Mask.

Details View#

Depending on the optional modules that are licensed in the system, the Details view will display some or all of the following page sections:

  • Details - displays general information on the Substrate Map Mask.
  • Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information, see Attributes.
  • Attachments - shows the documents that are attached to the Substrate Map Mask and enables you to attach additional documentation to it.

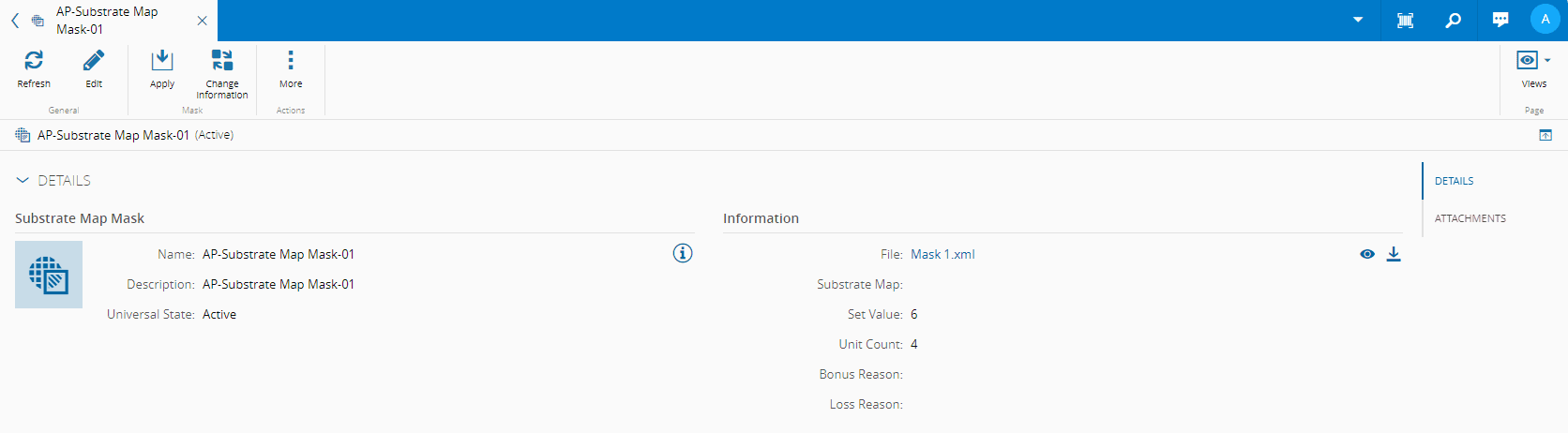

Screenshot showing the Details View of a Substrate Map Mask, displaying attached documents.

Content View#

This view displays a visual representation of the contents of the Substrate Map Mask.

On the right panel of the Substrate Map Mask you will have access to general information, such as:

  • Navigator
  • Settings
  • Details

It is also possible to pan, reset view, flip vertically/horizontally, zoom in, zoom out, and rotate the Substrate Map Mask. Additionally, by selecting a cell, a pop-up will provide you with information that is specific to that cell:

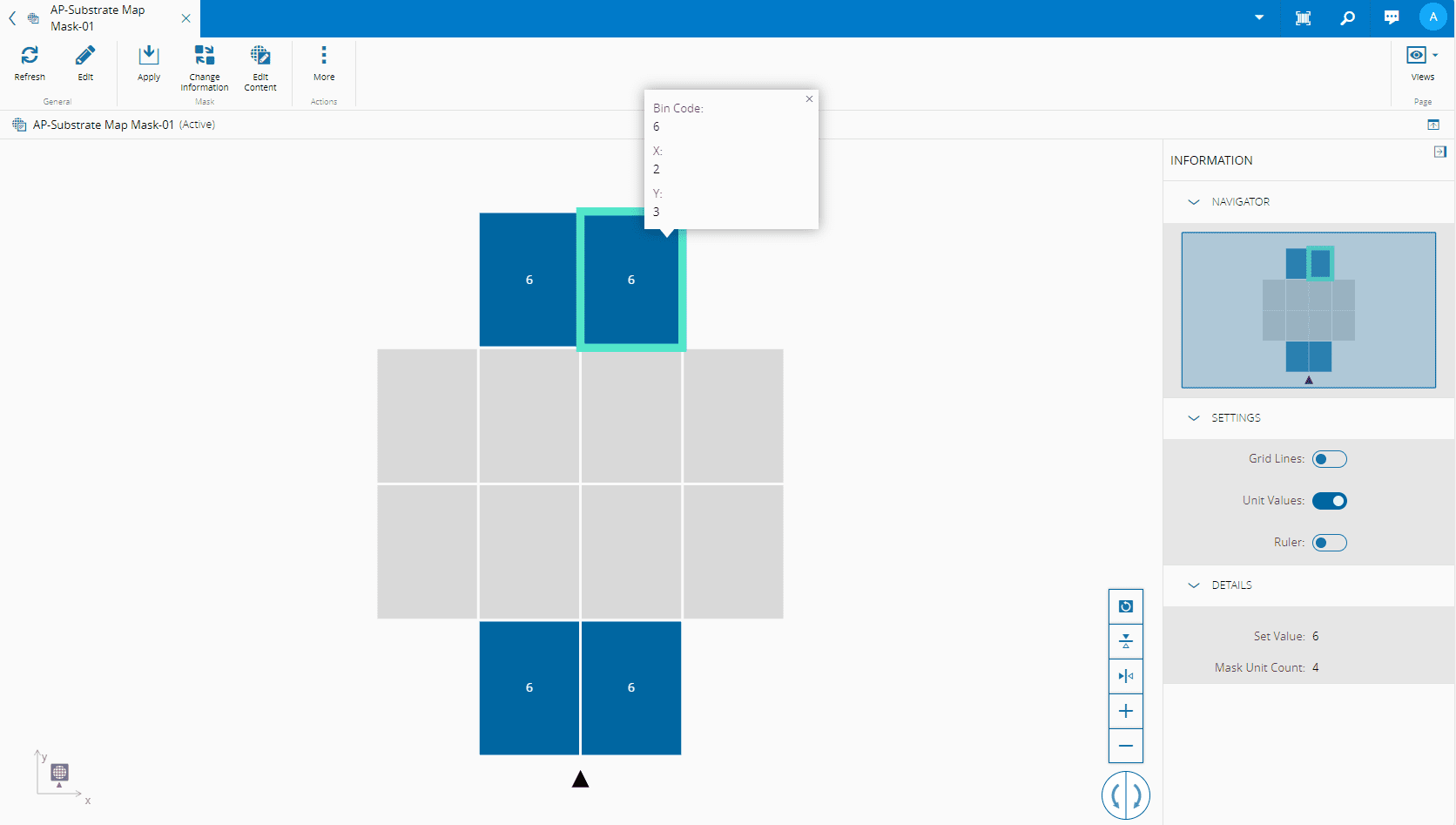

Diagram showing a submap mask content view.

Example of Substrate Map Mask File#

Here you can access a sample Substrate Map Mask xml file.

It may also be useful to look at CM SEMI E142 schema.

Compare View#

🔒 SubstrateMapMask.Compare

This view provides a quick visual comparison between the selected entity version and any other version that can be selected through it. You can also export the comparison results to a PDF file through the Export Comparison button on the top ribbon. For more information, see Compare Entity Versions.

Screenshot showing a comparison view with options, including a checkbox labeled "SHOW MODIFIED ONLY".

Info

In this view, you can choose to see only the modified items by selecting the SHOW MODIFIED ONLY box at the top of the page.

References View#

This view combines information concerning other objects that have references to the current object:

  • Relations - displays the existing Relations between the Substrate Map Mask and other entities and enables the user to edit them. For more information on Relations, visit the section Relations.
  • Where Used - displays the set of relationships between the Substrate Map Mask and the other objects used throughout the system.

History View#

This view combines information concerning other objects that have references to the current Substrate Map Mask object:

  • History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
