Maintenance Information#

Overview#

The Maintenance Overview dashboard provides insights about open maintenance activities, including both corrective and preventive Maintenance Activity Orders (MAOs), as well as resource reliability metrics. It supports maintenance planning, identification of equipment with the most corrective work, and monitoring of recovery times and time between failures.

Folder#

  • Performance

Database#

  • DWH (queried via Cube using GraphQL)
  • CDM (queried via OData)

Data#

  • Pending Corrective MAOs
  • Pending Preventive MAOs
  • Mean Time Between Failures (MTBF)
  • Mean Time To Recovery (MTTRec)

Example#

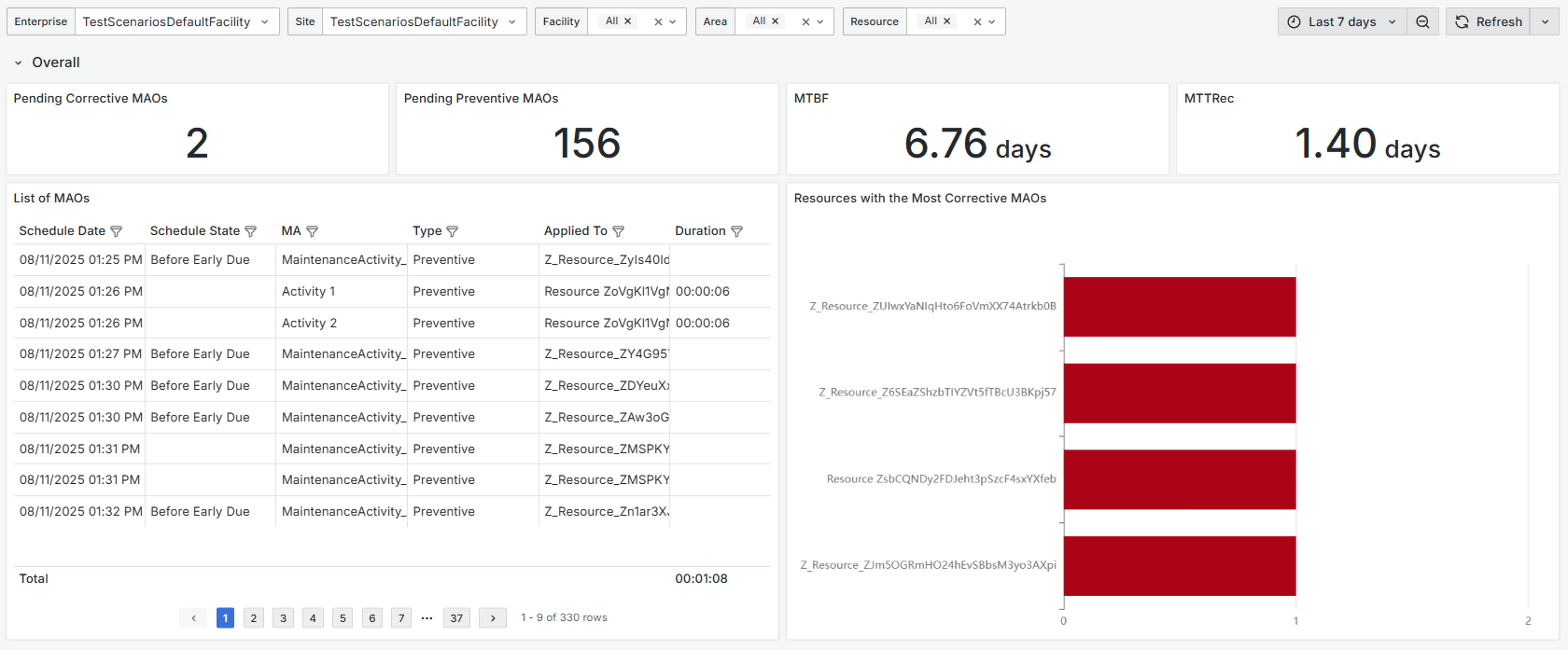

Example of the Maintenance Information dashboard

Data Breakdown#

KPI Description Formula Datasource
Pending Corrective MAOs Measures the number of Corrective Maintenance Activity Orders that have been requested but not completed. None Maintenance Order Data Set
Pending Preventive MAOs Measures the number of Preventive Maintenance Activity Orders that have been requested but not completed. None Maintenance Order Data Set
Mean Time Between Failures (MTBF) Quantifies the average uptime of a system before a failure occurs. It reflects reliability - the higher the MTBF, the more time the equipment stays operational between failures. The data shown in this KPI is the average of the time that a Resource spends between Unscheduled/Scheduled Down states. (Total available time − Total downtime) ÷ Number of failures resource_states in Resource Cube
Mean Time To Recovery (MTTR) Reflects how long, on average, it takes to recover from a failure, that is, how long the machine remains unavailable. The data shown in this KPI is the average of the total downtime that a Resource spends between Unscheduled/Scheduled Down states. Total downtime ÷ Number of failures resource_states in Resource Cube

Data Visualization#

Panel Description Threshold Values Datasource
Overall KPIs Displays values for Pending Corrective MAOs, Pending Preventive MAOs, MTBF, and MTTRec. MTBF should be as high as possible and MTTRec as low as possible. MaintenanceOrder (IoT Event Definition) and resource_states cube in Resource Cube
List of MAOs Table showing active MAO details: Schedule Date, Schedule State, Maintenance Activity (MA), Type, Applied To, and Duration. It excludes canceled MAOs. N/A MaintenanceOrder (IoT Event Definition)
Resources with Most Corrective MAOs Horizontal bar chart ranking resources by corrective MAO count. Longest bar represents the highest number of corrective MAOs. resource_maintenance cube in Resource Cube

Entity Filters#

Single selection#

  • Enterprise
  • Site

Multiple/All selection#

  • Facility
  • Area
  • Resource

Time/Date Filter#

The system provides a time/date filter with an Absolute time range option and a list of quick ranges, which you can apply as shown in the image below.

Time and Date

Date Filter Options#

  • Changing Time Zone
  • Changing Fiscal Year

Refresh Button Options#

The system provides a Refresh button with various options to select.
