OEE Information#

Overview#

The OEE Information dashboard provides a real-time overview of the performance and efficiency of one or more Resources.

Folder#

  • Performance

Database#

  • DWH (queried via Cube using GraphQL)

Data#

  • OEE - Overall Equipment Effectiveness (%)
  • Availability (%)
  • Quality (%)
  • Performance (%)
  • Rate Efficiency (%)
  • Operational Efficiency (%)

Example#

OEE Information 01

OEE Information 02

Data Breakdown#

KPI Description Formula Datasource
OEE - Overall Equipment Effectiveness Measures equipment effectiveness based on Availability, Performance, and Quality. Availability x Performance x Quality resource_states_non_working_times in Resource Cube
Availability Indicates how much of the scheduled production time a resource was operating, excluding downtime. Operating Time ÷ Potential Production Time x 100 resource_states_non_working_times in Resource Cube
Quality Measures the percentage of good (non-defective) units produced compared to the total units processed. Total Processed Primary Quantity ÷ (Total Processed Primary Quantity + Total Primary Quantity Losses) x 100 material_movement in Material Cube
Performance Measures how efficiently a Resource operates by comparing the actual operating speed to its ideal cycle time during productive time. Ideal Cycle Time ÷ Operating Time x 100 resource_states_non_working_times in Resource Cube
Rate Efficiency Indicates the efficiency of the operating speed of a Resource compared to its ideal rate during the period. Ideal Cycle Time ÷ Net Operating Time x 100 resource_states_non_working_times in Resource Cube
Operational Efficiency Measures the proportion of actual productive time a resource uses compared to total operating time available, excluding planned and unplanned downtime. Net Operating Time ÷ Operating Time x 100 resource_states_non_working_times in Resource Cube

Data Visualization#

Panel Description Threshold Values Datasource

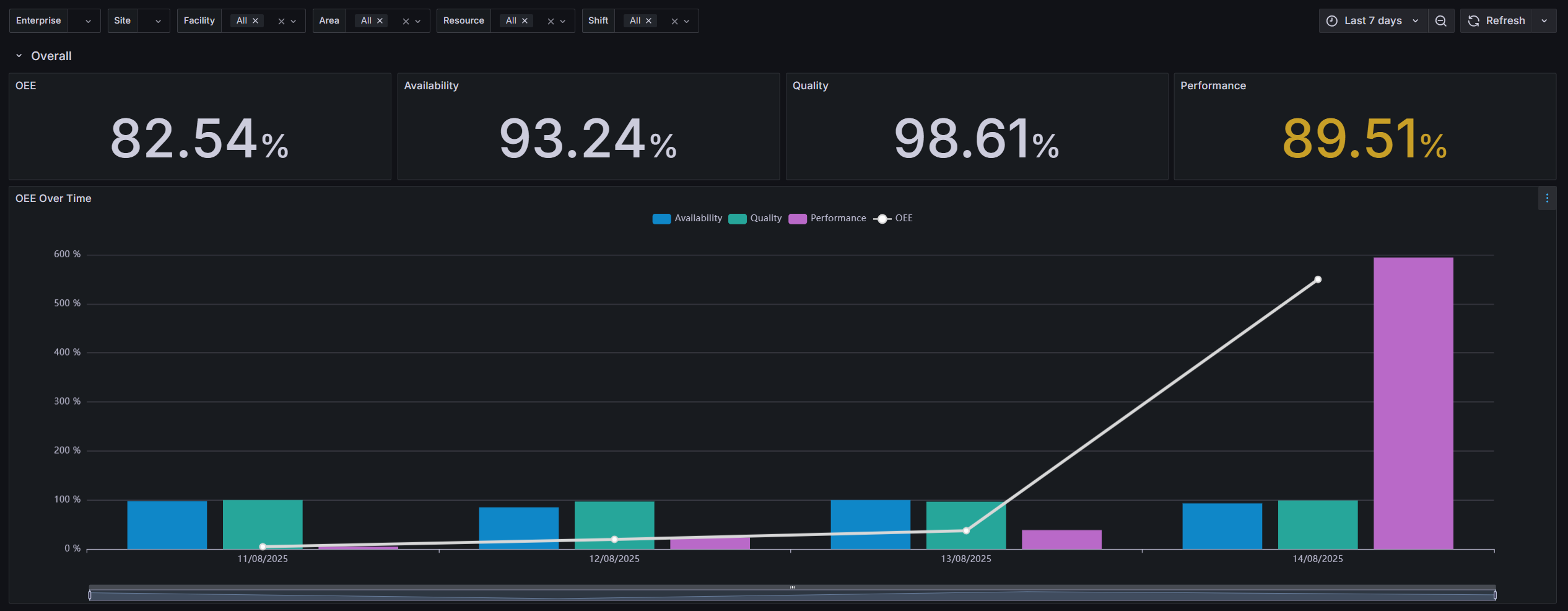

Overall Contains key statistics and a summary chart. The available metrics (four) evolve over time. Color threshold:
- Values below 80% are red.
- Values between 80% and 90% are yellow.
- Values above 90% are not highlighted.
Additionally, the OEE metric is less demanding and has a deviation of 10% in relation to the other thresholds.		 resource_states_non_working_times in Resource Cube
material_movement in Material Cube

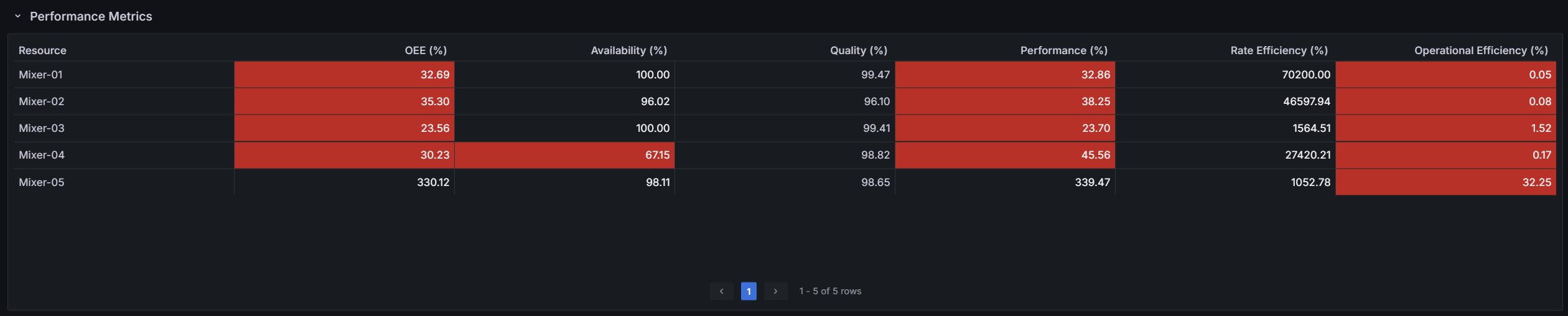

Performance Metrics Features a resource-oriented table. Color threshold:
- Values under 80% have a red background.
Additionally, the OEE metric is less demanding and has a deviation of 10% in relation to the other threshold.		 resource_states_non_working_times in Resource Cube

Entity Filters#

Single Selection#

  • Enterprise, Site

Multiple/All Selection#

  • Facility, Area, Resource, Shift

Time/Date Filter#

The system provides a time/date filter with an Absolute time range option and a list of quick ranges, which you can apply as shown in the image below.

Time and Date

Date Filter Options#

  • Changing Time Zone
  • Changing Fiscal Year

Refresh Button Options#

The system provides a Refresh button with various options to select.
