Resource Efficiency#
Overview#
The Resource Efficiency dashboard provides a real-time overview of the performance and efficiency of one or more Resources over a selected period of time.
Folder#
- Performance
Database#
- DWH (queried via Cube using GraphQL)
Data#
- OEE - Overall Equipment Effectiveness (%)
- Availability (%)
- Quality (%)
- Performance (%)
- Mean Time Between Failures (MTBF)
- Mean Time To Recovery (MTTRec)
- Operating Time/Down Time
- Resource States

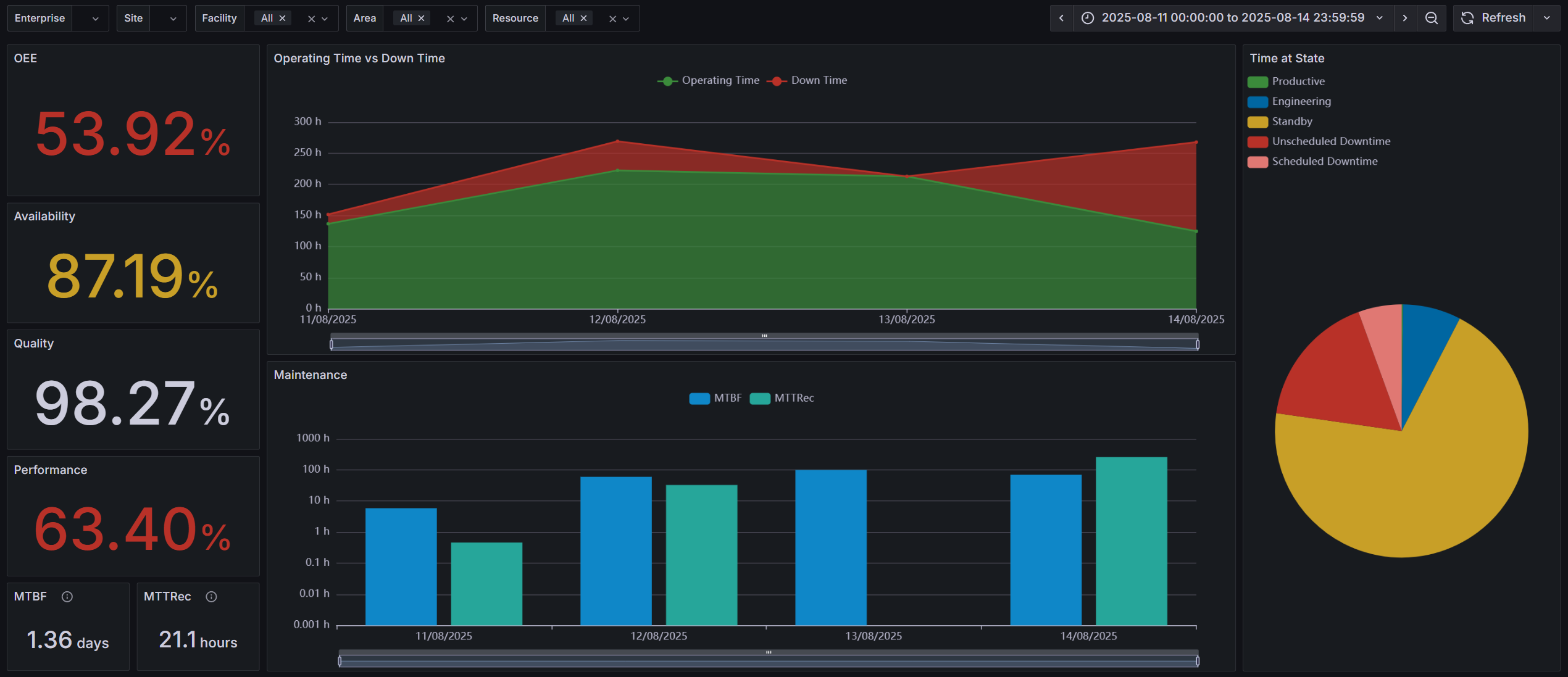

Example#
Data Breakdown#
| KPI | Description | Formula | Datasource |
|---|---|---|---|
| OEE - Overall Equipment Effectiveness | Measures equipment effectiveness based on Availability, Performance, and Quality. | Availability x Performance x Quality | resource_states_non_working_times in Resource Cube |
| Availability | Indicates how much of the scheduled production time a resource was operating, excluding downtime. | Operating Time ÷ Potential Production Time x 100 | resource_states_non_working_times in Resource Cube |
| Quality | Measures the percentage of good (non-defective) units produced compared to the total units processed. | Total Processed Primary Quantity ÷ (Total Processed Primary Quantity + Total Primary Quantity Losses) x 100 | material_movement in Material Cube |
| Performance | Measures how efficiently a Resource operates by comparing the actual operating speed to its ideal cycle time during productive time. | Ideal Cycle Time ÷ Operating Time x 100 | resource_states_non_working_times in Resource Cube |
| Mean Time Between Failures (MTBF) | Quantifies the average uptime of a system before a failure occurs. It reflects reliability - the higher the MTBF, the more time the equipment stays operational between failures. The data shown in this KPI is the average of the time that a Resource spends between Unscheduled/Scheduled Down states. | Operating Time ÷ Number of Failures | resource_states in Resource Cube |
| Mean Time To Recovery (MTTRec) | Reflects how long, on average, it takes to recover from a failure, that is, how long the Resource remains unavailable. The data shown in this KPI is the average of the total downtime that a Resource spends between Unscheduled/Scheduled Down states. | Total Downtime ÷ Number of Failures | resource_states in Resource Cube |
| Operating Time | Shows the time the Resource is running. Operating Time is represented in green. | N/A | resource_states_non_working_times in Resource Cube |
| Down Time | Shows the time the Resource is down. Down Time is represented in red. | N/A | resource_states_non_working_times in Resource Cube |
| Resource States | Shows the time the Resource is in each state (Productive, Engineering, Standby, Unscheduled Downtime, and Scheduled Downtime). | N/A | resource_states_non_working_times in Resource Cube |
For more information, see Resource.
Data Visualization#
| Panel | Description | Threshold Values | Datasource |
|---|---|---|---|
| OEE - Overall Equipment Effectiveness | Measures equipment effectiveness based on Availability, Performance, and Quality. | Color threshold: - Values below 70% are red. - Values between 70% and 80% are yellow. - Values above 80% are not highlighted. | resource_states_non_working_times in Resource Cube |
| Availability | Indicates how much of the scheduled production time a resource was operating, excluding downtime. | Color threshold: - Values below 80% are red. - Values between 80% and 90% are yellow. - Values above 90% are not highlighted. | resource_states_non_working_times in Resource Cube |
| Quality | Measures the percentage of good (non-defective) units produced compared to the total units processed. | Color threshold: - Values below 80% are red. - Values between 80% and 90% are yellow. - Values above 90% are not highlighted. | material_movement in Material Cube |
| Performance | Measures how efficiently a Resource operates by comparing the actual operating speed to its ideal cycle time during productive time. | Color threshold: - Values below 80% are red. - Values between 80% and 90% are yellow. - Values above 90% are not highlighted. | resource_states_non_working_times in Resource Cube |
| Mean Time Between Failures (MTBF) | Quantifies the average uptime of a system before a failure occurs. It reflects reliability - the higher the MTBF, the more time the equipment stays operational between failures. The data shown in this KPI is the average of the time that a Resource spends between Unscheduled/Scheduled Down states. | N/A | resource_states in Resource Cube |
| Mean Time To Recovery (MTTRec) | Reflects how long, on average, it takes to recover from a failure, that is, how long the Resource remains unavailable. The data shown in this KPI is the average of the total downtime that a Resource spends between Unscheduled/Scheduled Down states. | N/A | resource_states in Resource Cube |
| Operating Time vs Down Time | This line chart shows the balance between the time the Resource is running versus the time the Resource is down. Operating Time is represented in green, and Down Time in red. | N/A | resource_states_non_working_times in Resource Cube |
| Maintenance | This bar chart tracks two maintenance metrics over time: MTBF and MTTRec. Together, they give a picture of equipment reliability and repair efficiency. | N/A | resource_states in Resource Cube |
| Time at State | This pie chart shows how the total time of the Resources is distributed across the different states: Productive, Engineering, Standby, Unscheduled Downtime, and Scheduled Downtime. | N/A | resource_states_non_working_times in Resource Cube |
Entity Filters#
Single Selection#
- Enterprise, Site
Multiple/All Selection#
- Facility, Area, Resource
Time/Date Filter#

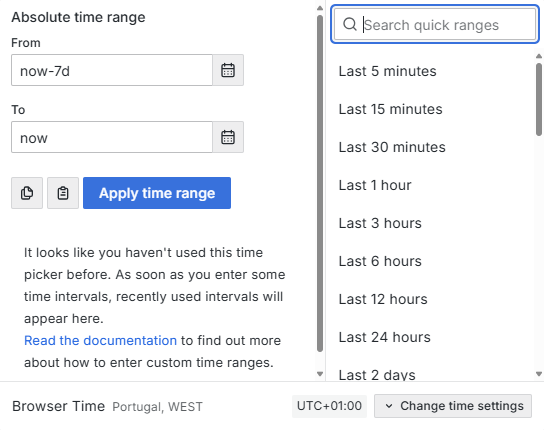

The system provides a time/date filter with an Absolute time range option and a list of quick ranges, which you can apply as shown in the image below.
Date Filter Options#
- Changing Time Zone
- Changing Fiscal Year
Refresh Button Options#
The system provides a Refresh button with various options to select.
