Resource OEE#

Overview#

The Resource OEE dashboard provides a view of the historical performance of Resources using the Overall Equipment Effectiveness (OEE) metric.

Folder#

  • Performance

Database#

  • DWH (queried via Cube using GraphQL)

Data#

  • OEE (%)
  • Availability (%)
  • Quality (%)
  • Performance (%)
  • Rate Efficiency
  • Operational Efficiency (%)

Example#

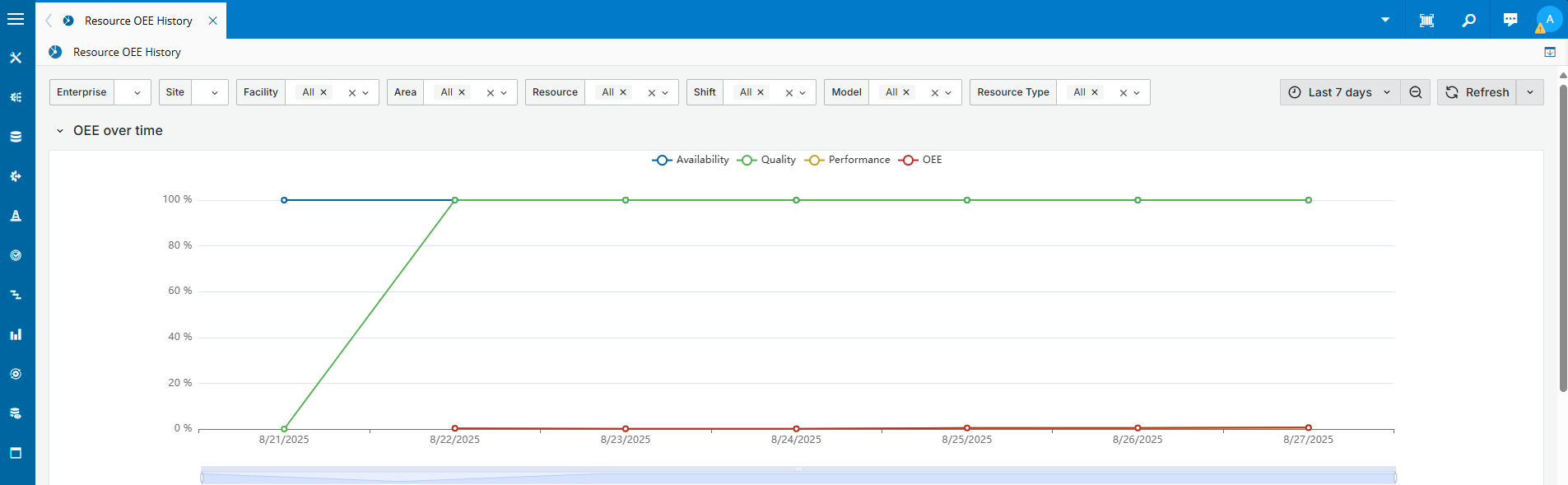

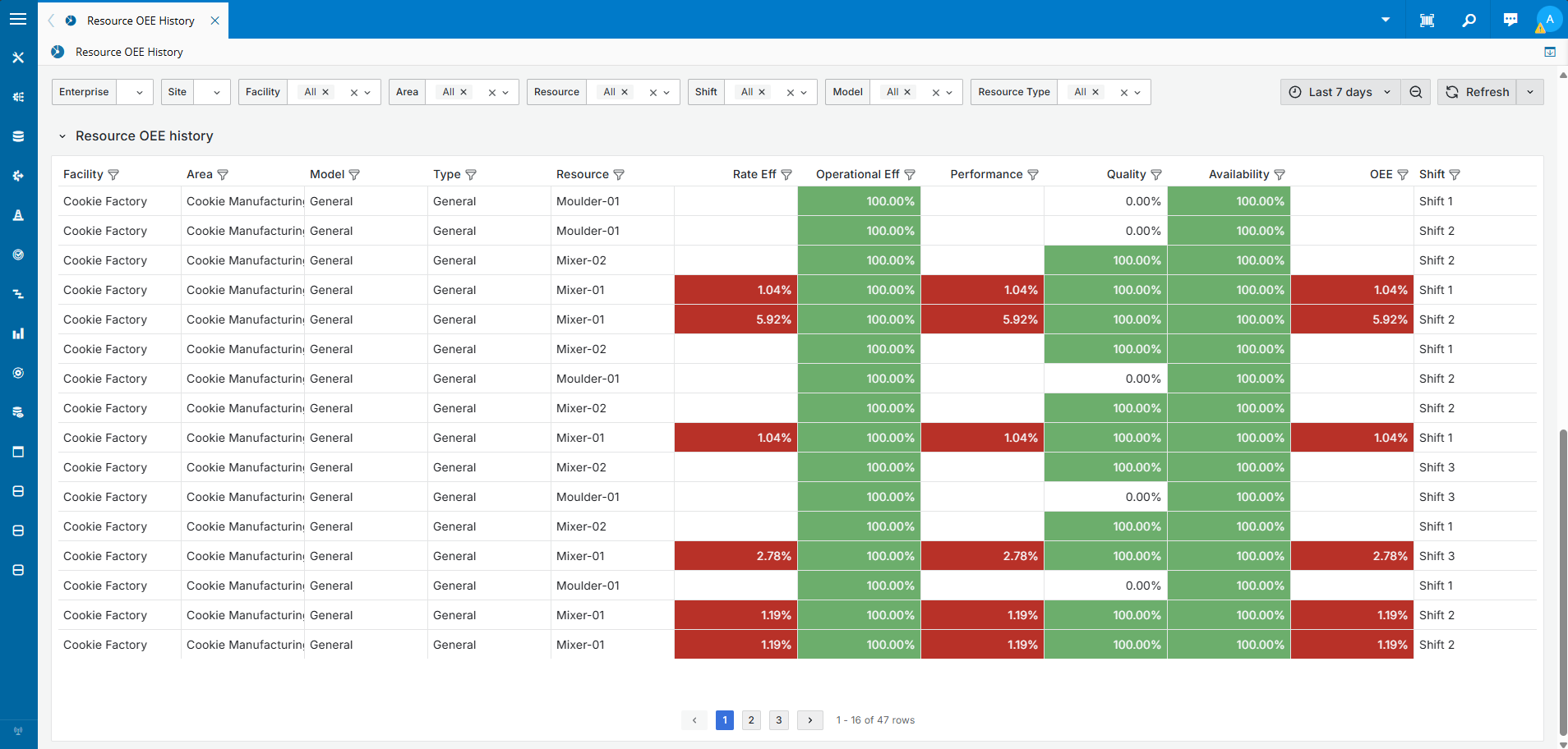

Resource OEE dashboard showing the OEE over time line chart with Availability, Quality, Performance, and OEE Resource OEE dashboard showing the OEE components and Performance components charts Resource OEE dashboard showing the Resource OEE History table with OEE values per Resource and Shift

Data Breakdown#

KPI Description Formula Datasource
OEE Measures equipment effectiveness based on Availability, Performance, and Quality. Availability x Performance x Quality resource_states_non_working_times in Resource Cube
Availability Indicates how much of the scheduled production time a Resource was operating, excluding downtime. Operating Time ÷ Potential Production Time x 100 resource_states_non_working_times in Resource Cube
Quality Measures the percentage of good (non-defective) units produced compared to the total units processed. Total Processed Primary Quantity ÷ (Total Processed Primary Quantity + Total Primary Quantity Losses) x 100 material_movement in Material Cube
Performance Measures how efficiently a Resource operates by comparing the actual operating speed to its ideal cycle time during productive time. Ideal Cycle Time ÷ Operating Time x 100 resource_states_non_working_times in Resource Cube
Rate Efficiency Indicates the efficiency of the operating speed of a Resource compared to its ideal rate during the period. Ideal Cycle Time ÷ Net Operating Time x 100 resource_states_non_working_times in Resource Cube
Operational Efficiency Measures the proportion of actual productive time a Resource uses compared to total operating time available, excluding planned and unplanned downtime. Net Operating Time ÷ Operating Time x 100 resource_states_non_working_times in Resource Cube

Data Visualization#

Panel Description Threshold Values Datasource
OEE over time Time Series displaying the evolution of Availability, Performance, Quality, and OEE across the selected time period. N/A resource_states_non_working_times in Resource Cube and material_movement in Material Cube
OEE components Circular Bar Chart displaying KPIs: OEE, Availability, Performance, and Quality. N/A resource_states_non_working_times in Resource Cube and material_movement in Material Cube
Performance components Circular Bar Chart displaying KPIs: Performance, Rate Efficiency, and Operational Efficiency. N/A resource_states_non_working_times in Resource Cube
Resource OEE History Table showing historical OEE values Colors representing ranges: red (0–70%), yellow (70–100%), green (100%) resource_states_non_working_times in Resource Cube

Entity Filters#

Single selection#

  • Enterprise
  • Site

Multiple/All selection#

  • Facility
  • Area
  • Resource
  • Shift
  • Model
  • Resource Type

Time/Date Filter#

The system provides a time/date filter with an Absolute time range option and a list of quick ranges, which you can apply as shown in the image below.

Time and Date

Date Filter Options#

  • Changing Time Zone
  • Changing Fiscal Year

Refresh Button Options#

The system provides a Refresh button with various options to select.
