Yield Loss Information#
Overview#
The Yield Loss Information dashboard provides a detailed analysis of Material efficiency by tracking Loss patterns and performance deviations throughout the production process.
Folder#
- Performance
Database#
- DWH (queried via Cube using GraphQL and OData)
Data#
- Yield Loss (%)
- Loss Quantity
- Loss Reason
Example#
Data Breakdown#
| KPI | Description | Formula |
|---|---|---|
| Yield Loss | The percentage Loss of Material during processing, compared to the total amount of Material that entered the process. | 100 - (Processed Primary Quantity / (Processed Primary Quantity + Primary Quantity Losses)) * 100 |
| Loss Reason | Reasons recorded when a Loss occurs during a Step. | N/A |
| Loss Quantity | The total primary quantity of Material and Sub-Material Losses, representing the amount of Material lost during the processing steps. | N/A |
Data Visualization#

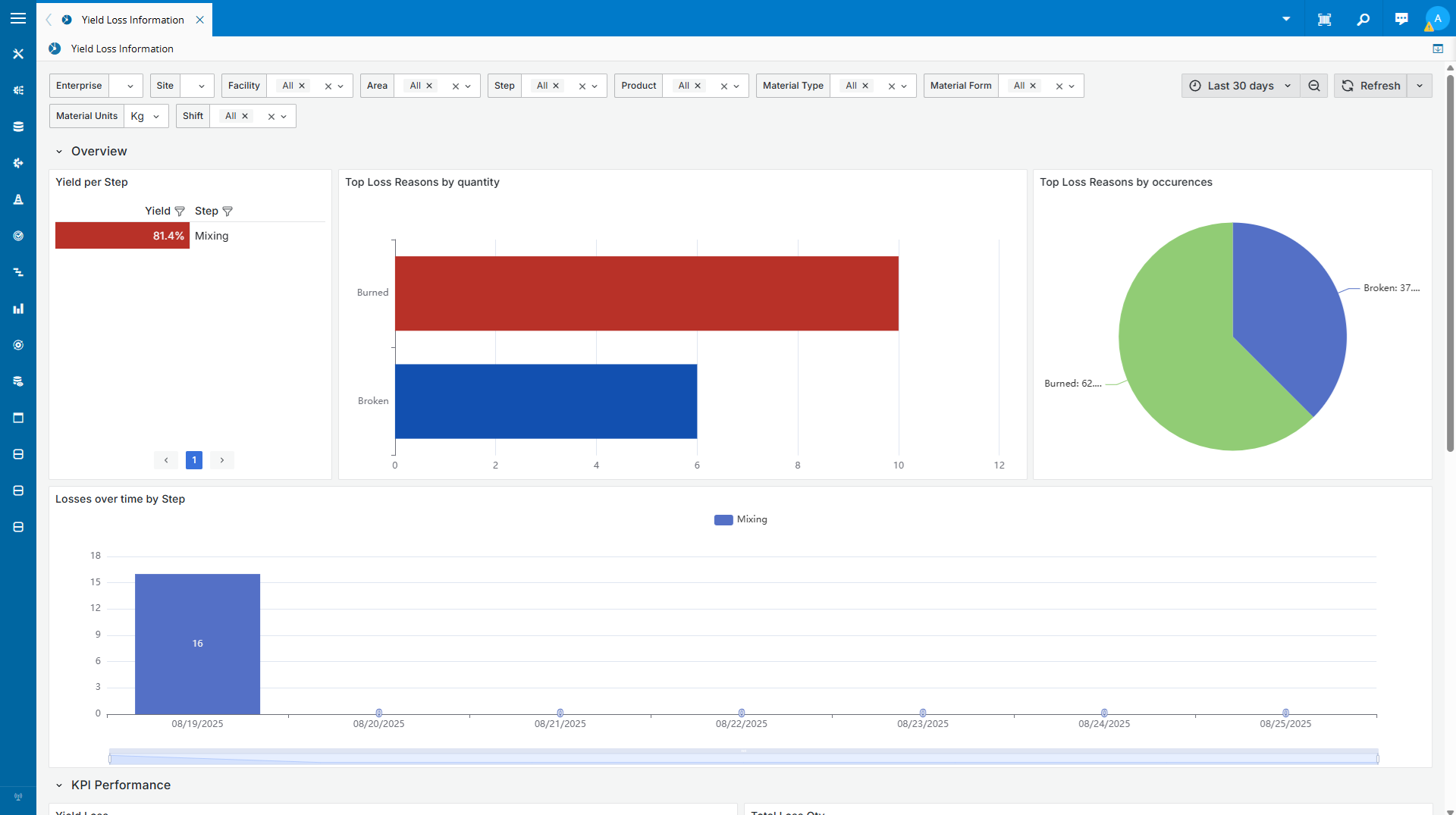

| Panel | Description | Threshold Values | Datasource |
|---|---|---|---|
| Yield per Step | Tabular view of Yield per Step. | Color-coded by thresholds: green (100%–95%), yellow (95%–90%), red (90%–0%). | material_movement in Material Cube |
| Top Loss Reasons by Quantity | Horizontal Chart displaying the top Loss Reasons by quantity. | The Top Loss Reason is displayed on top and marked in red. | Material Loss Bonus Dataset |
| Top Loss Reasons by Occurrences | Pie chart displaying the percentage of occurrences for each Loss Reason. | N/A | Material Loss Bonus Dataset |
| Losses Over Time by Step | Stacked bar chart displaying daily Loss quantities by color-coded Steps. | N/A | material_movement in Material Cube |

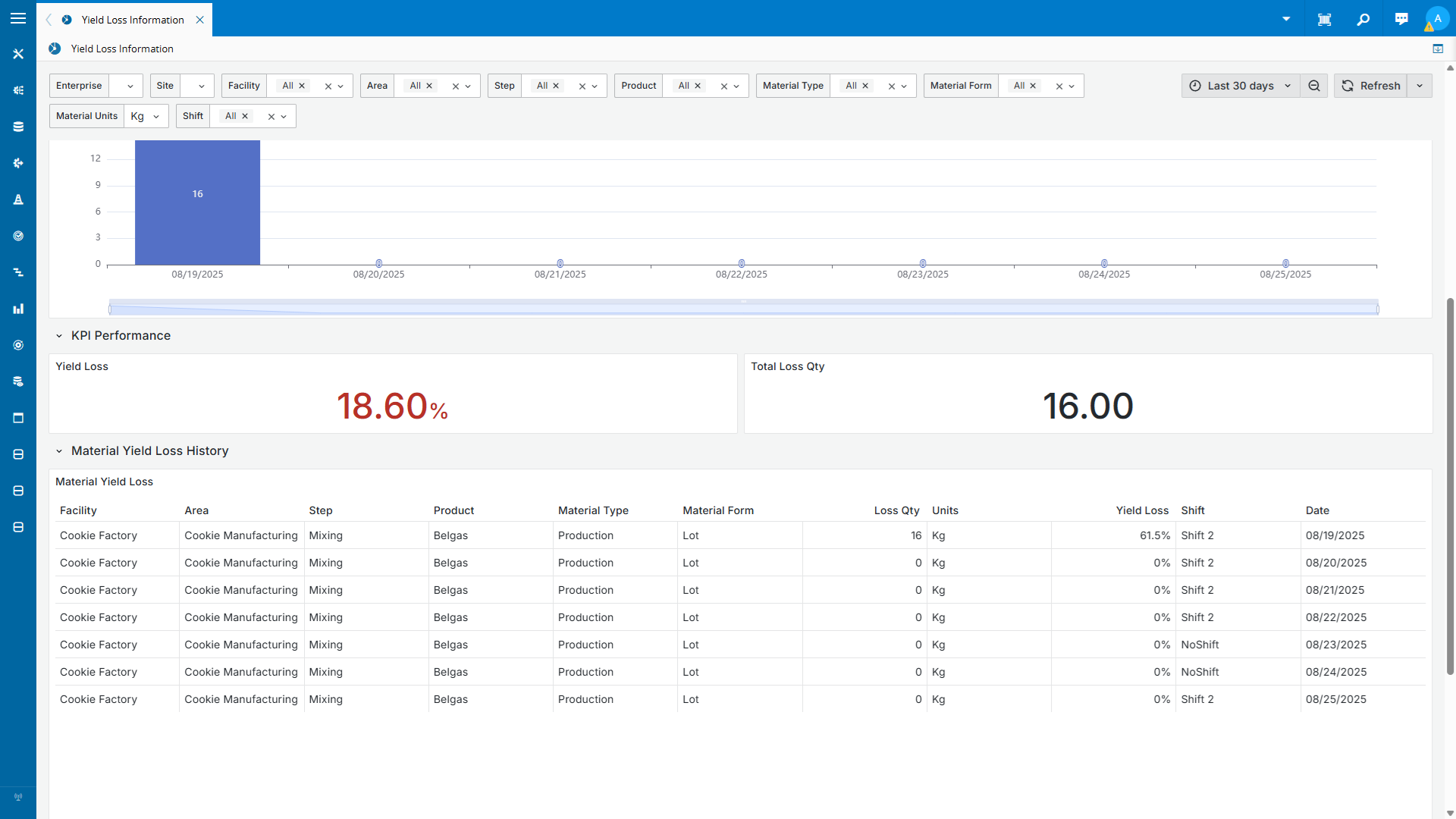

| Yield Loss | KPI monitoring Material inefficiency during production. | Color-coded by thresholds: grey (0–2%), red (2–100%). | material_movement in Material Cube |
| Total Loss Quantity | KPI measuring the total amount of Material lost during production. | N/A | material_movement in Material Cube |
| Material Yield Loss History | Table presenting the historical record of daily Material Loss transactions. | N/A | material_movement in Material Cube |
Entity Filters#
Single selection#
- Enterprise
- Site
- Units
Multiple/All selection#
- Facility
- Area
- Step
- Product
- Material Type
- Material Form
- Shift
Time/Date Filter#
The system provides a time/date filter with an Absolute time range option and a list of quick ranges, which you can apply as shown in the image below.
Date Filter Options#
- Changing Time Zone
- Changing Fiscal Year
Refresh Button Options#
The system provides a Refresh button with various options to select.
