Resource State Time Distribution#
Overview#
The Resource State Time Distribution dashboard provides information on how production Resources spend their time in different operational states over a selected period, enabling performance monitoring, downtime analysis, and resource utilization assessment.
Folder#
State folder.
Database#
DWH (queried via Cube using GraphQL).
Data#
The dashboard displays metrics (both as total hours and as percentages of total recorded time) for the following states:
- Productive
- Engineering
- Standby
- Unscheduled Down
- Scheduled Down
Example#
Data Breakdown#
| KPI | Description | Formula | Datasource |
|---|---|---|---|
| Productive (%) | Percentage of total recorded time spent producing to total recorded time. | (Productive hours ÷ Total hours) × 100 | resource_states in Resource Cube |
| Engineering (%) | Percentage of total time in engineering activities or technical interventions to total recorded time. | (Engineering hours ÷ Total hours) × 100 | resource_states in Resource Cube |
| Standby (%) | Percentage of time the resource is available but not producing, to total recorded time. | (Standby hours ÷ Total hours) × 100 | resource_states in Resource Cube |
| Unscheduled Down (%) | Percentage of unplanned downtime (due to failures or unexpected stops) to total recorded time. | (Unscheduled Down hours ÷ Total hours) × 100 | resource_states in Resource Cube |
| Scheduled Down (%) | Percentage of planned downtime (for maintenance or other scheduled activities) to total recorded time. | (Scheduled Down hours ÷ Total hours) × 100 | resource_states in Resource Cube |
Data Visualization#
| Panel | Description | Threshold Values | Datasource |
|---|---|---|---|

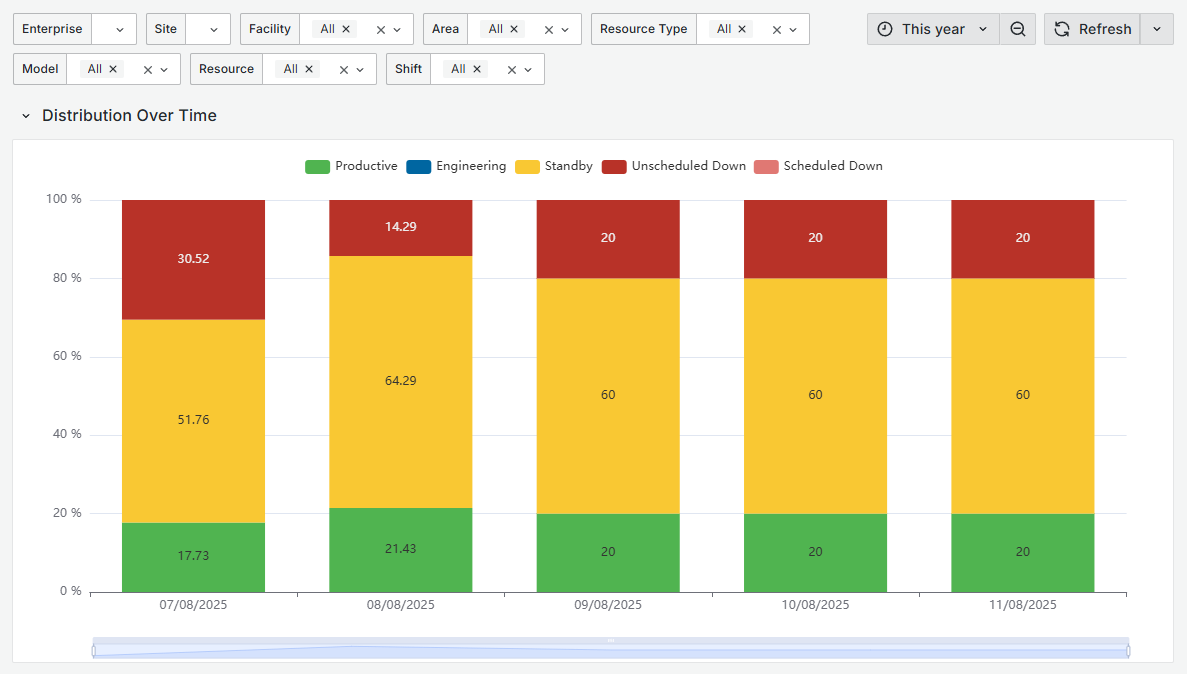

| Distribution Over Time | Stacked bar chart showing the daily percentage of each state (Productive, Engineering, Standby, Unscheduled Down, Scheduled Down) over the selected time range. Helps identify patterns or anomalies in operational distribution. | Productive ≥ 85%, Unscheduled Down ≤ 5% | resource_states in Resource Cube |

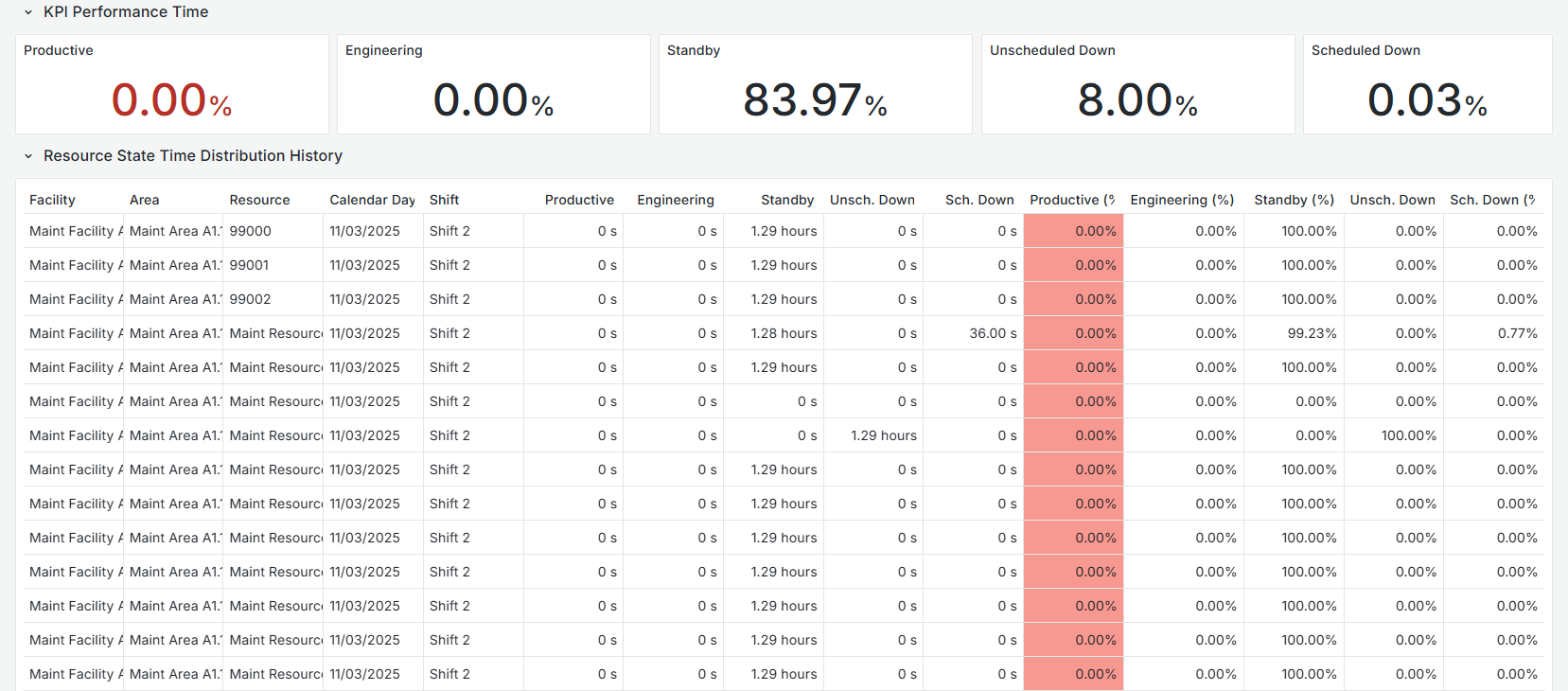

| KPI Performance Time | Displays the overall percentage of time spent in each state for the selected period. | Productive: Green ≥ 90%, Yellow 80–90%, Red < 80% | resource_states in Resource Cube |
| Resource State Time Distribution History | Breakdown of state hours and percentages for each resource, including facility and area information. Useful for pinpointing underperforming assets. | Minimal variance in productive values between similar resources | resource_states in Resource Cube |
Entity Filters#
Single selection
- Enterprise, Site
Multiple/All selection
- Facility, Area, Resource Type, Model, Resource, and Shift.
Time/Date Filter#
The system provides a time/date filter with an Absolute time range option and a list of quick ranges, which you can apply as shown in the image below.
Date Filter Options#
- Changing Time Zone
- Changing Fiscal Year
Refresh Button Options#
The system provides a Refresh button with various options to select.
