Data Grid#

A data grid is used to display data in tabular form, thus allowing for easy data structuring and segmenting.

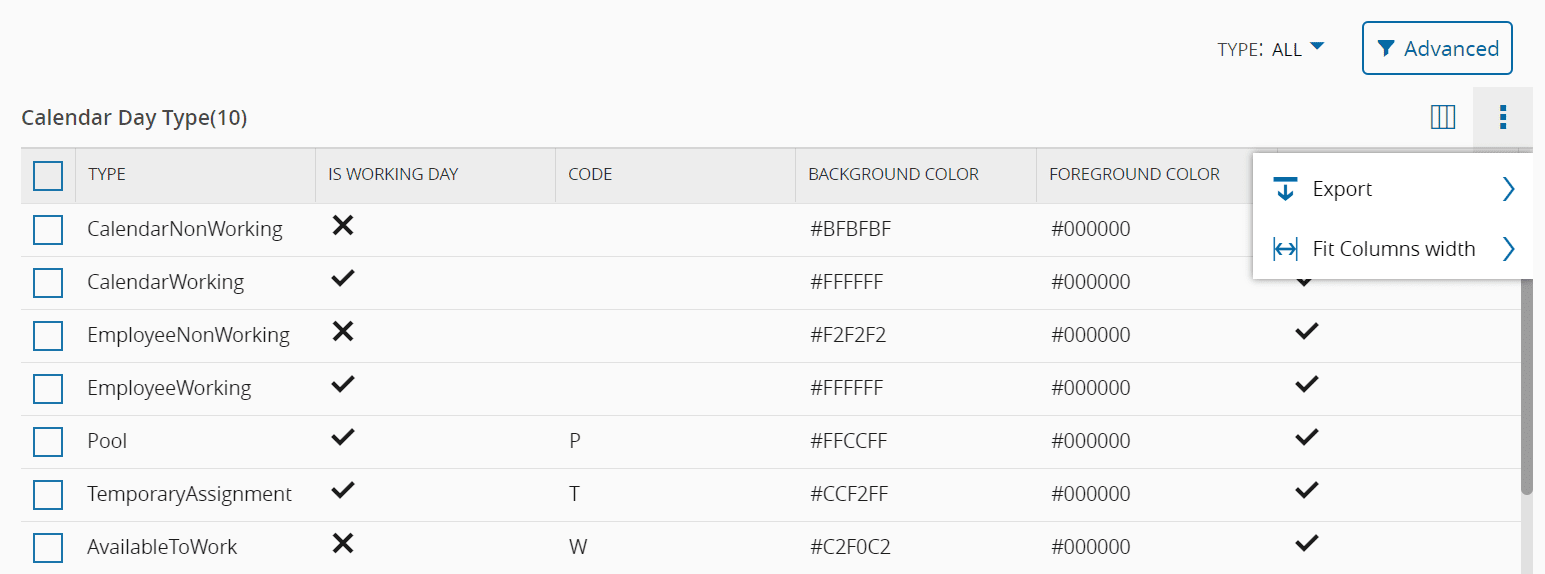

data_grid_main_options

Column Options#

All data grids include the icon, which opens the Column Options wizard. From this wizard, you can:

  • Add additional columns by selecting the required properties.
  • Change the order of the selected columns by dragging and dropping them or by using the and arrows.
  • Remove columns using the icon.

After customizing the data grid, select Apply to implement the changes.

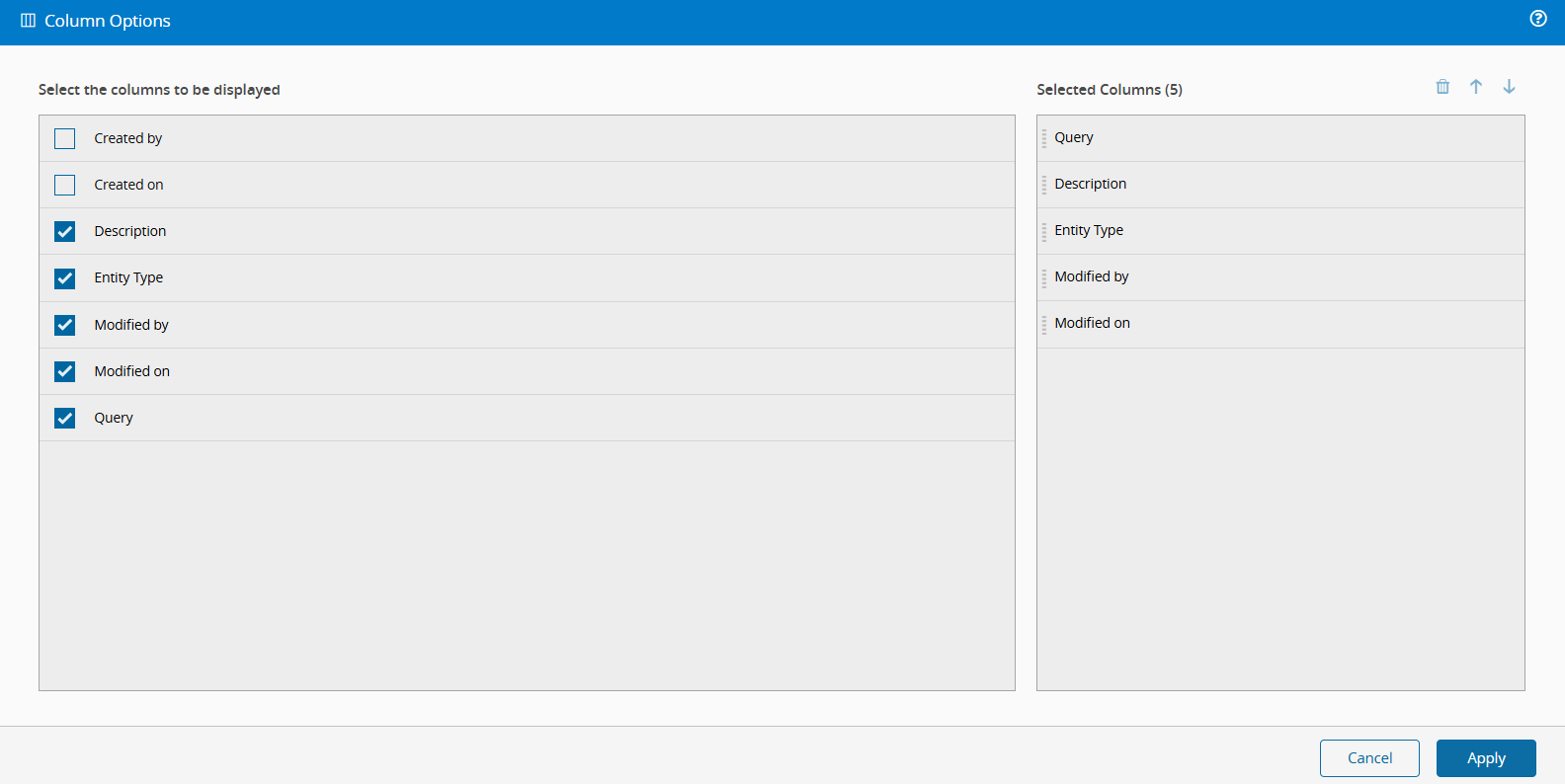

Screenshot showing how to customize the data grid using the Column Options.

Column Sizing#

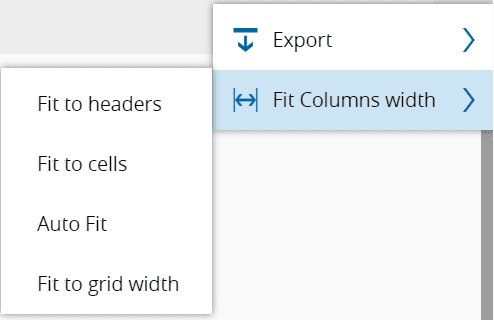

data_grid_fit_options

There are several options available to change the size of the columns in a Data Grid:

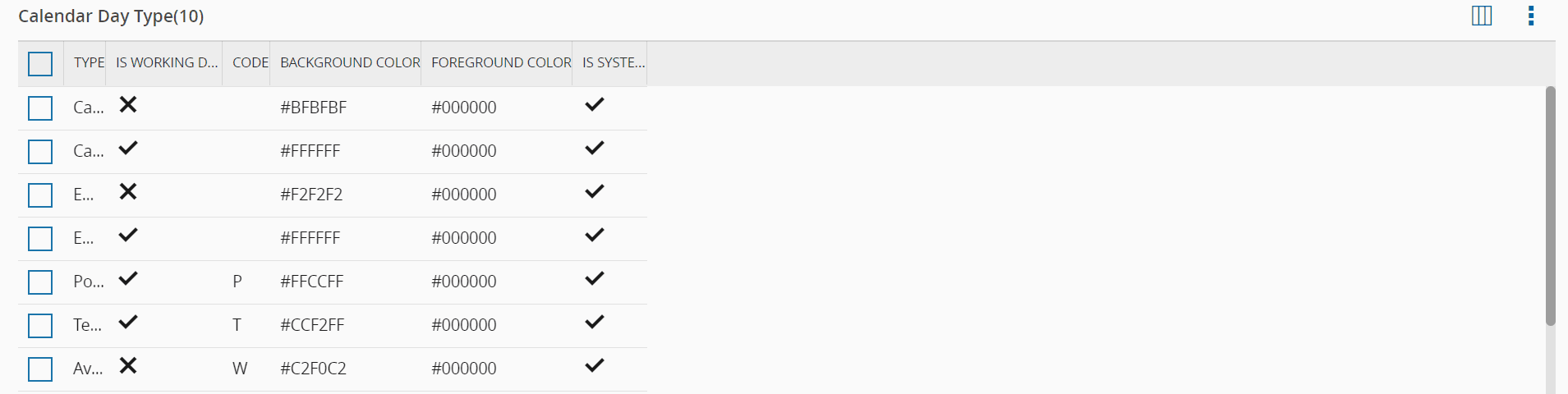

  • Fit to headers - the grid will be resized so that the column width matches the maximum size of the current header content.

    data_grid_fit_to_headers

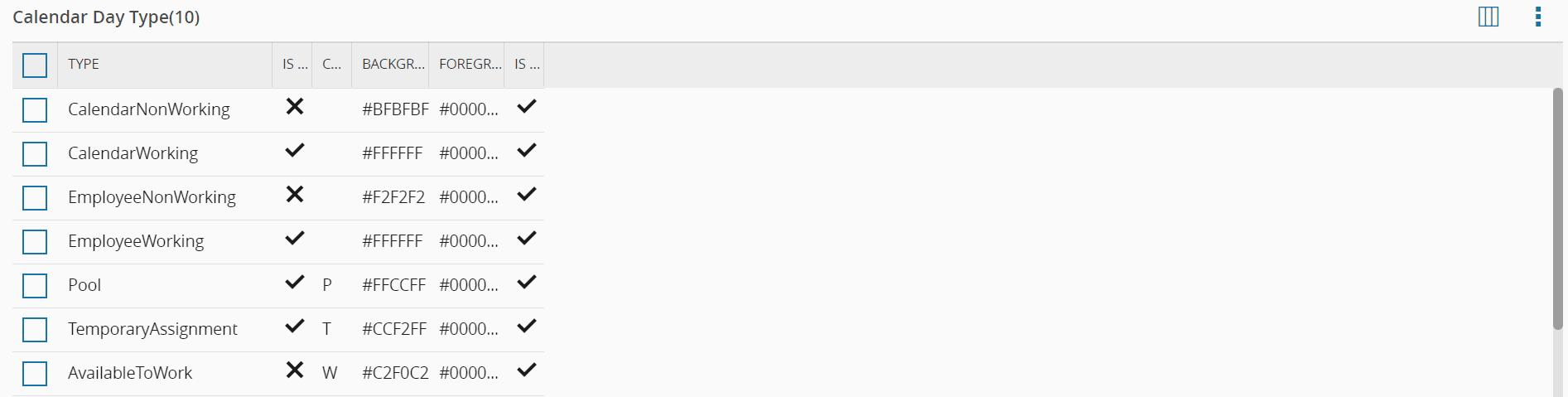

  • Fit to cells - the grid will be resized so that the column width matches the size of the maximum content present in the data section of the grid.

    data_grid_fit_to_cells

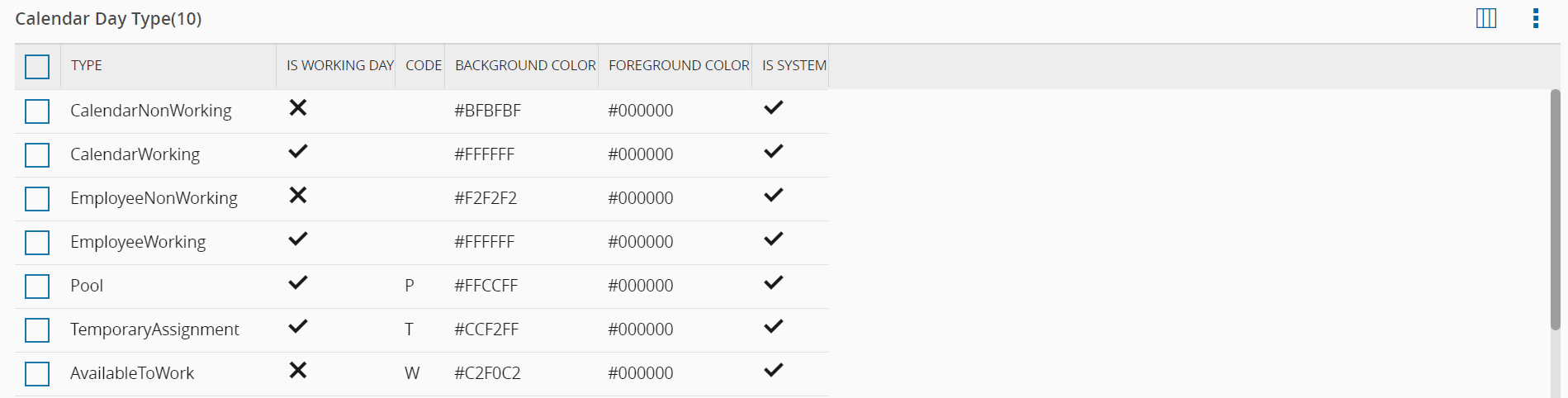

  • Auto fit - the grid will be resized so that it can achieve a balance between header width and data width.

    data_grid_autofit

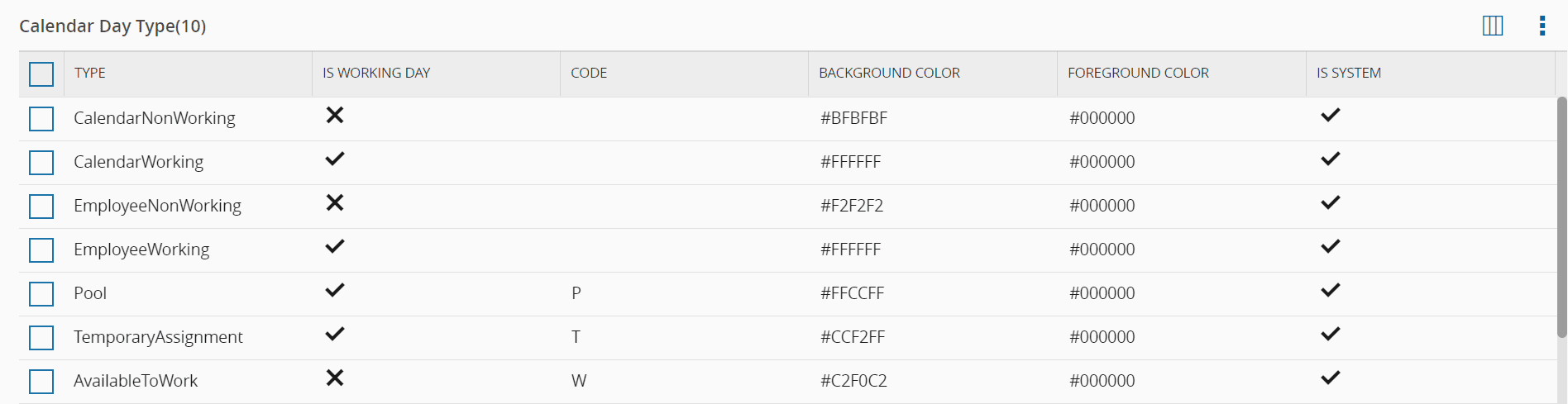

  • Fit to grid width - the grid will be resized so that it can occupy the maximum possible space in the screen.

    data_grid_fit_to_grid_width

Exporting Grid Data#

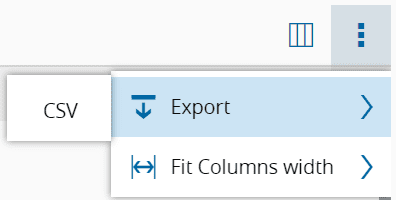

The system also allows exporting the current data from the grid to a comma-separated value formatted file by selecting the More button and selecting the Export option together with the appropriate format.

data_grid_export_options
