Barcodes#

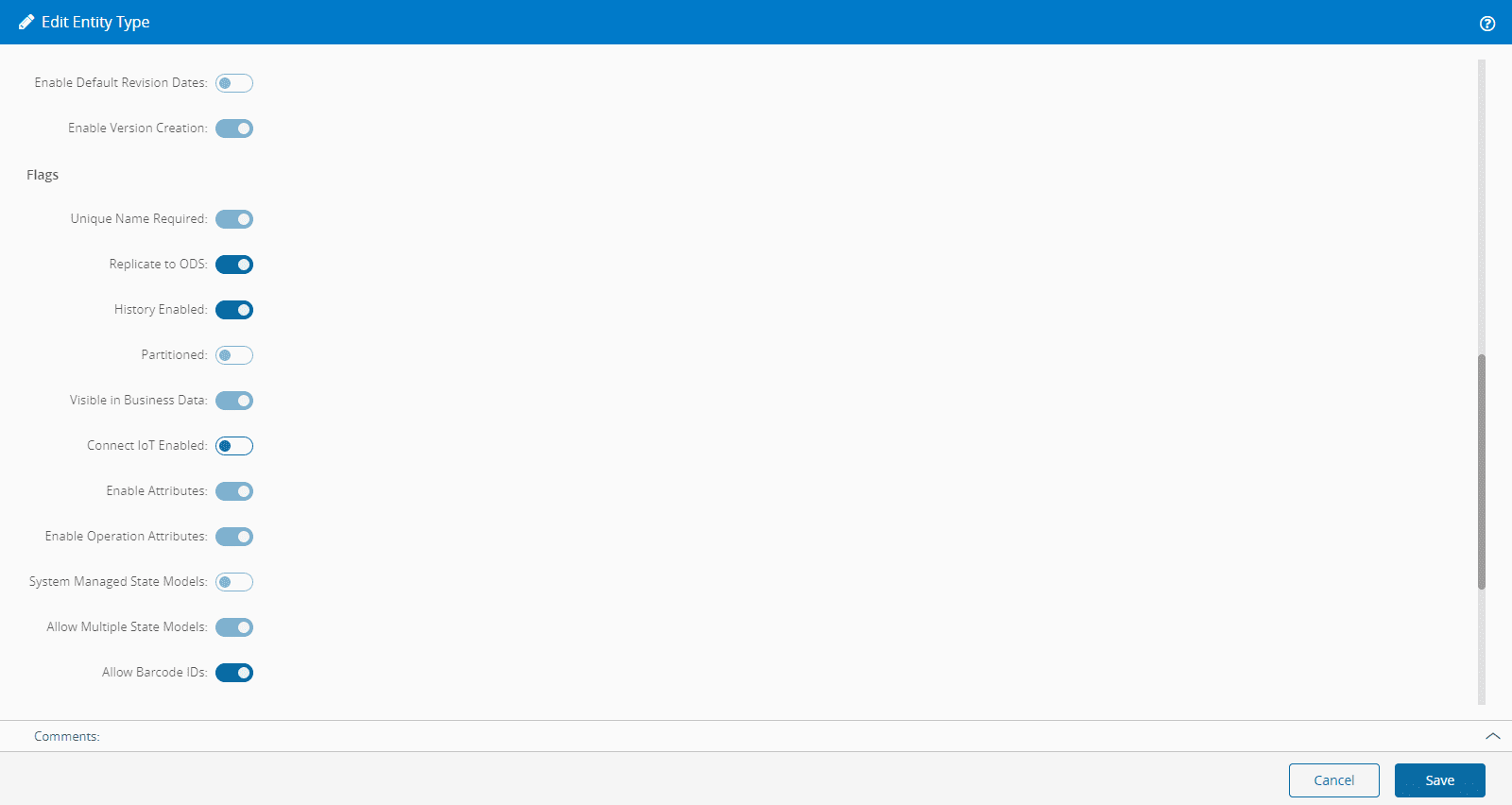

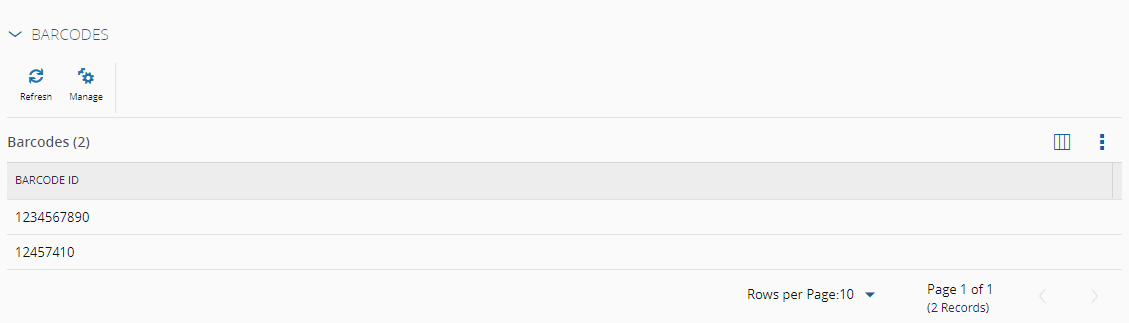

The Barcodes section appears in any Entity Page with the Allow Barcode IDs property enabled. It displays available Barcodes for identifying specific entities, such as Materials, Resources, and Containers. To view this section, navigate to the Administration panel, select Entity Types, and enable the Allow Barcode IDs property.

Barcodes are used to register Materials, in Weigh and Dispense scenarios or in Connect IoT/Factory Automation scenarios, as well as authentication strategies in Security Portal, but they can be integrated into any custom UI Page using a specific widget.

For more information on how to use Barcodes, see Find Entity Control and Barcode Identification.

In addition, it enables you to manage and edit these barcode IDs through a specific section within the Entity page.

Manage Barcodes#

EntityType.ManageBarcodes

Overview#

This operation is used to manage the barcode IDs associated to a specific Entity.

Setup#

No setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Entity must have the Allow Barcode IDs flag enabled.

Sequence of Steps#

Step 1#

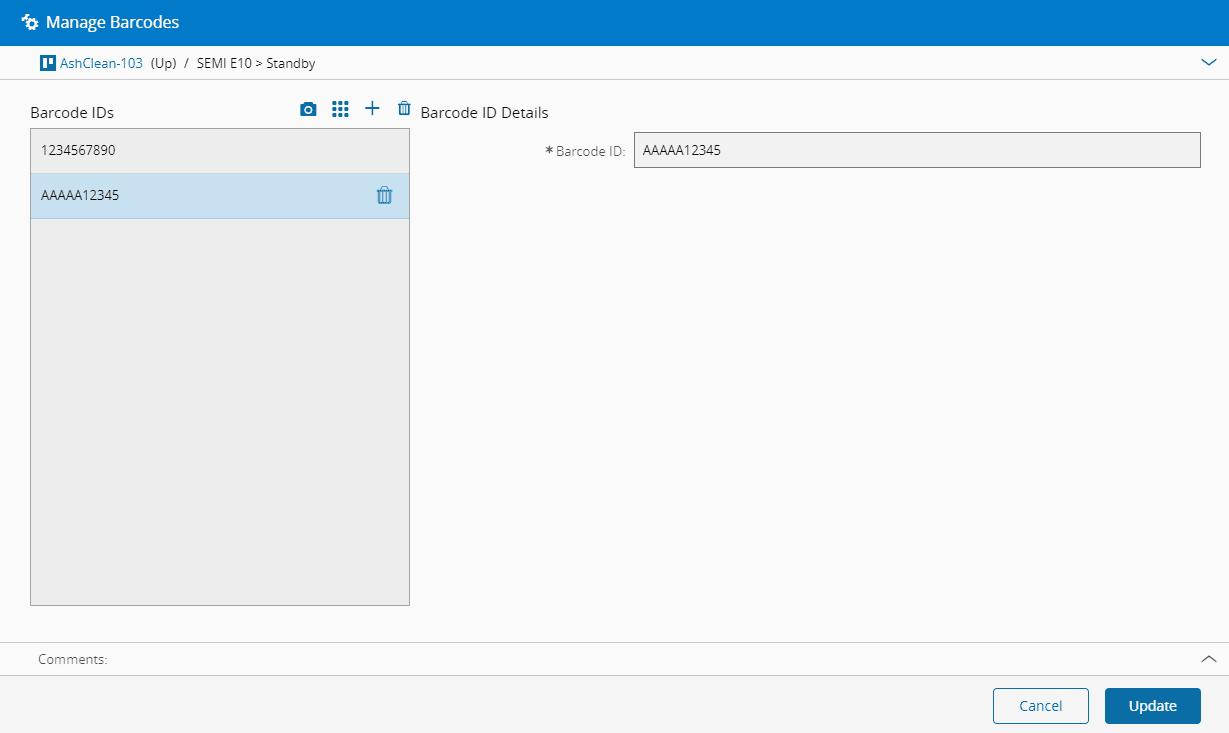

1. Choose an appropriate Entity, navigate to the Barcodes section and select the Manage button.

2. Add as many barcode IDs as desired using one of the available methods in the top right of the grid:

3. Select to add a new barcode ID through text entry.

4. Select to add a new barcode ID by scanning it through an available webcam.
5. Select to add a new barcode ID through text entry or using a barcode reader.

6. Select to remove an existing barcode ID.

7. Select Update to complete the operation.
