Load Port E30
Load Port Integration with E30#

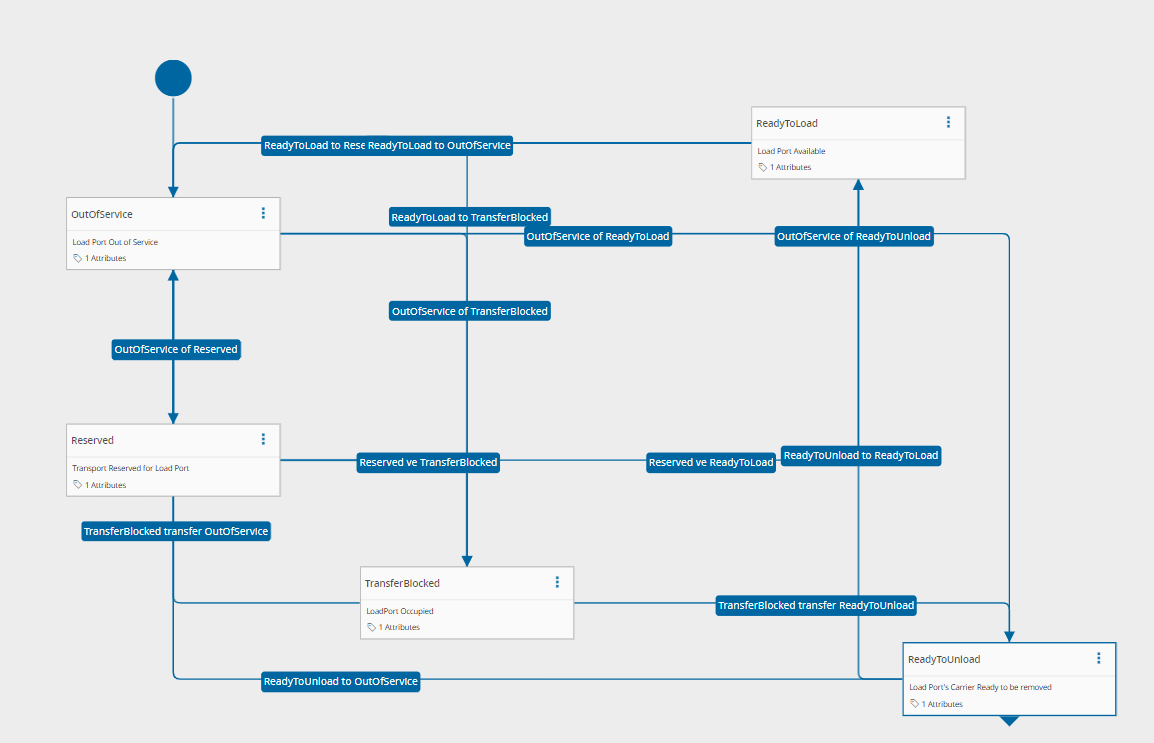

E30 does not define Load Port Transfer State Model, to drive the template Semi Load Port State Model on the image below you will need to find the correct event.
Normally the following events, or their equivalent should be available, and using the following workflows:
| Event | Event Description | Workflow | Action Description | Possible equivalents |
|---|---|---|---|---|
| Material Received | Material Received on the Tool | MaterialReceived_01_MaterialReceivedEvent | Changes Load Port State to Transfer Blocked | Material Arrival Sensed, Material Present, Carrier Arrived, Carrier Clamped (note: avoid using it) |
| Carrier Ready To Unload | Carrier is Ready to be removed from tool | ReadyToUnload_01_EventReceived | Changes Load Port State to Ready To Unload | Carrier Unloaded, Material Unload, Cassette Unload, Carrier Closed, Carrier Unclamped |
| Material Removed | Material Removed from Tool | MaterialRemoved_01_MaterialRemovedEvent | Changes Load Port State to Ready to Load, if Load Port Resource has Automation Mode Online, Undocks the Docked Container | Carrier Removed |
