Auto Terminate and Ship on Last Step#

Overview#

The Auto Terminate and Ship on Last Step feature aims to streamline the shipping of materials to a shipping facility when they reach the end of their flow.

Concept#

When a Material is moved into the last Step of the flow, the Material will be automatically shipped to the to the first Facility that has TerminateOnShip enabled.

Preconditions

  • The last Flow Step must have Allow Shipping and Marks Product Completion enabled
  • All selected Materials must have the same ProductionOrder and FlowPath

Setting Up#

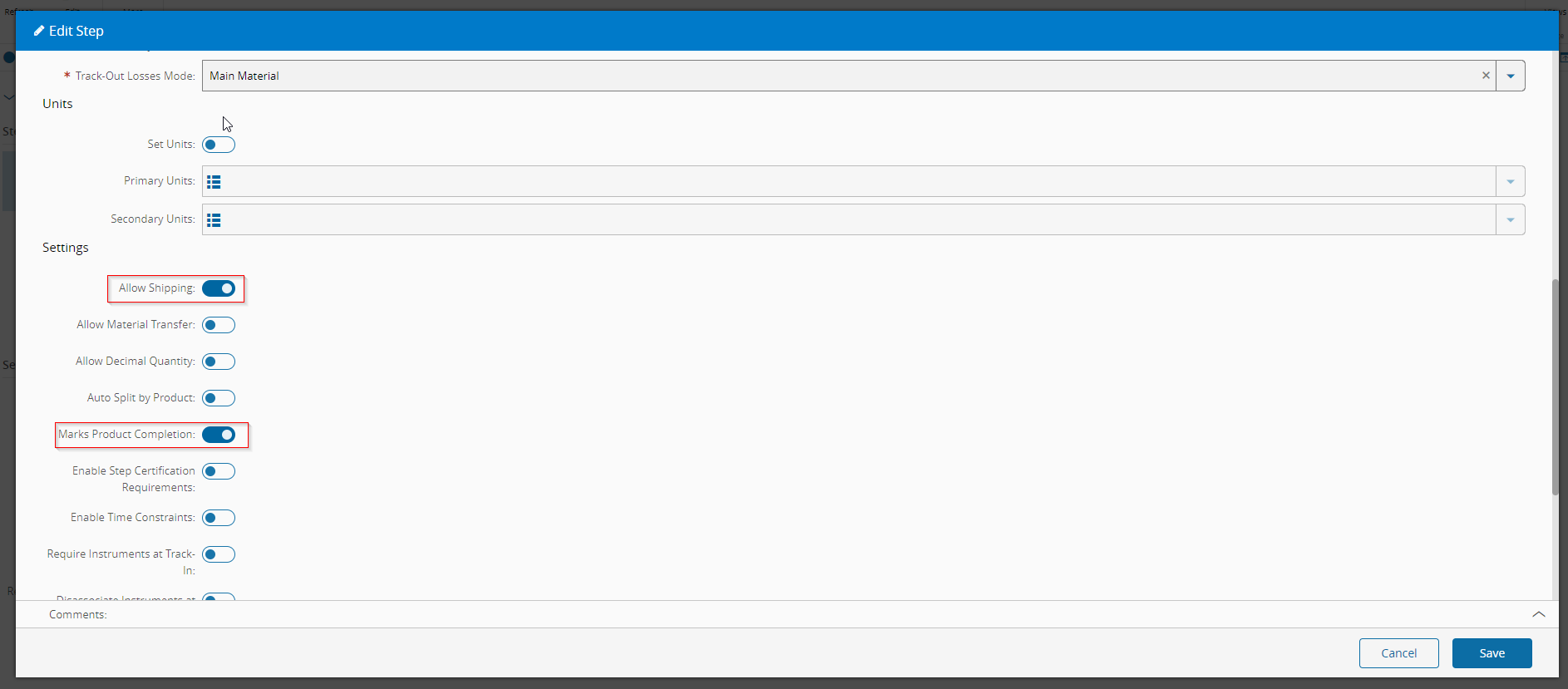

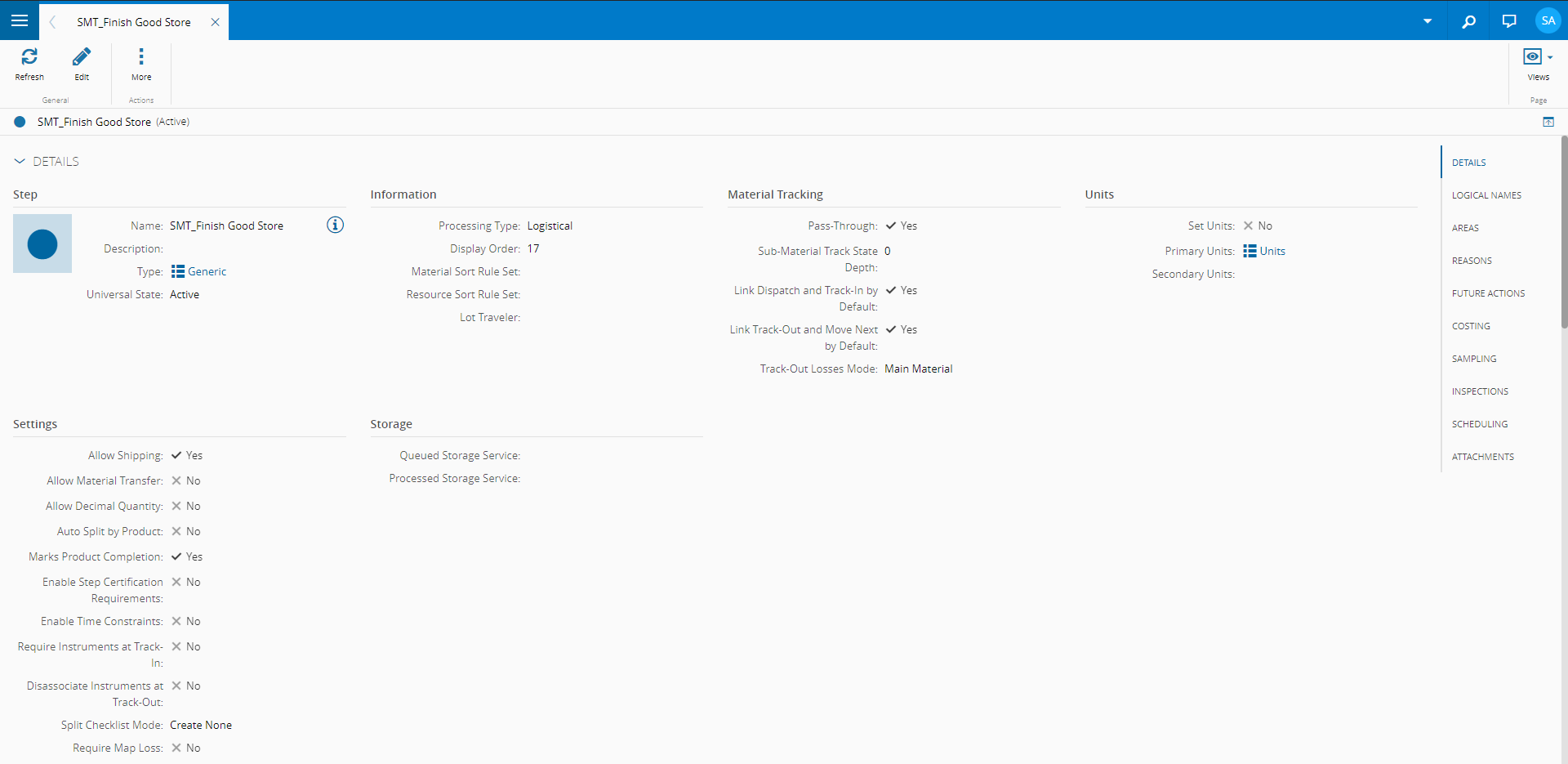

As previously mentioned, the last Step of the Flow must have Allow Shipping and Marks Product Completion enabled

AutoShip-1

AutoShip-2

Executing#

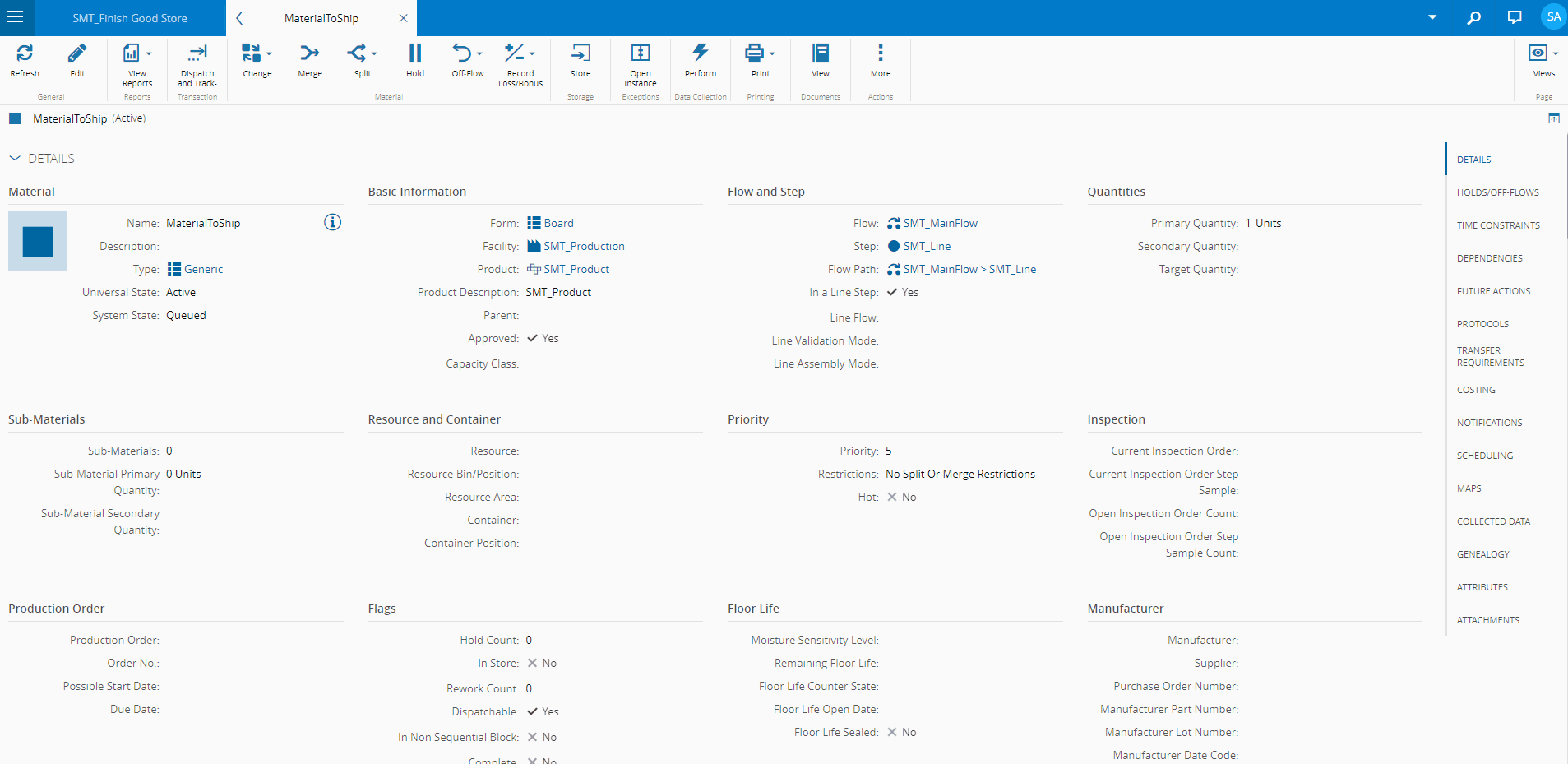

To execute this feature, one simply has to move the material to the final step of the flow. The example below shows:

  • The Material being created.
  • The Material being moved through the Flow Path.
    • On the Last Step, the Material will automatically Ship.

AutoShip

Administration#

To use this feature, the config /SMT/MaterialTracking/AutoTerminateAndShipOnLastStep must be enabled.
