Add Items to Packing Container#

Overview#

After creating a Material to be packed and creating a Packing Container Material, the user can add new items to the Container.

Concept#

In order to add items to a Packing Container, the user should go to the Resource page and open the Resource View and select the option Add Items. Then, a wizard should open with the current material associated with the Container, and in order to add, the user can select Materials manually.

As soon as the MES captures the selected Material it will automatically be added to a temporary list of materials. By clicking in the Add option it adds Materials to the Container and generate the Labels for those Materials.

Lastly, the user has the option to Close the Container if desired, Close the Container and TrackOut that performs the TrackOut after closing the container and the Leave button.

Setting up#

Follow the steps described in the Open Packing Container section

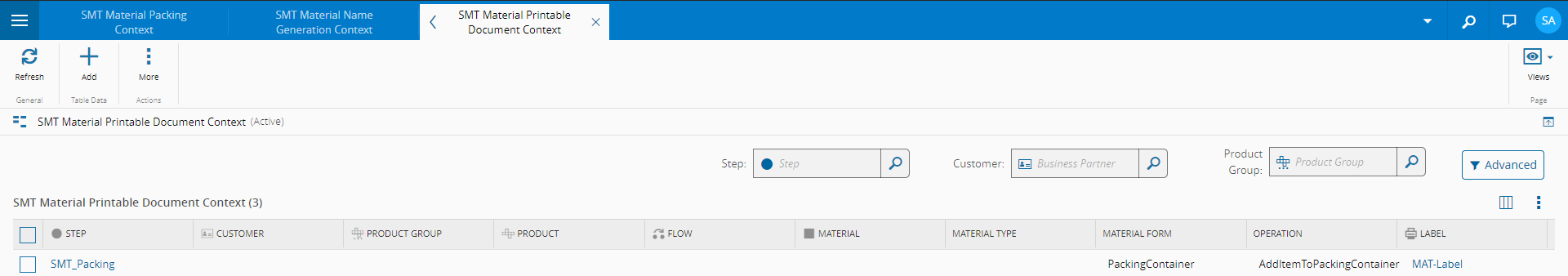

Set the SMTMaterialPrintableDocumentContext for the Add items to Container operation, the PackingContainer material Form, the packing Step and the desired Label:

Executing#

After opening, the user can add items to a packing container. For that the user should:

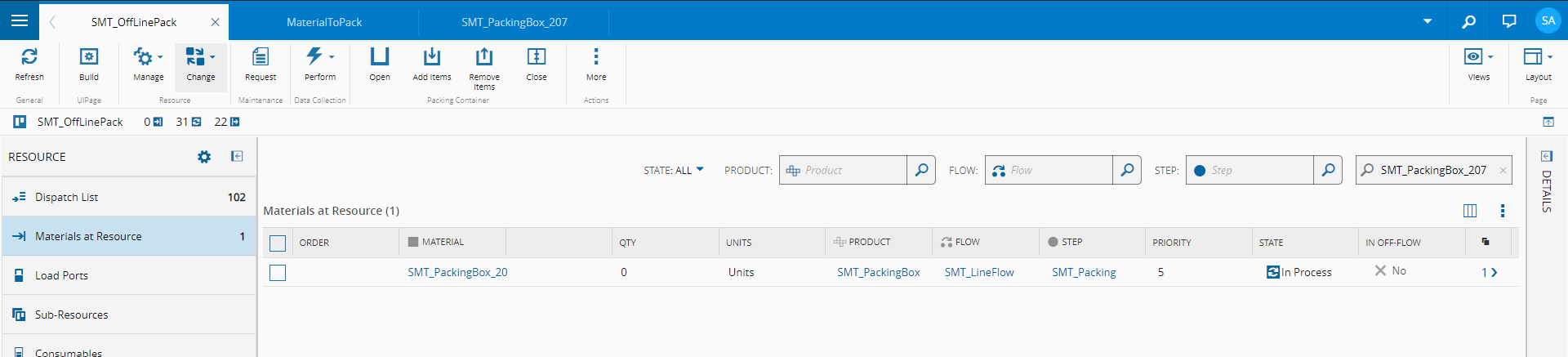

Open the Resource View of the Resource where the packing operation will occur and search for the Packing Container where the Material will be packed:

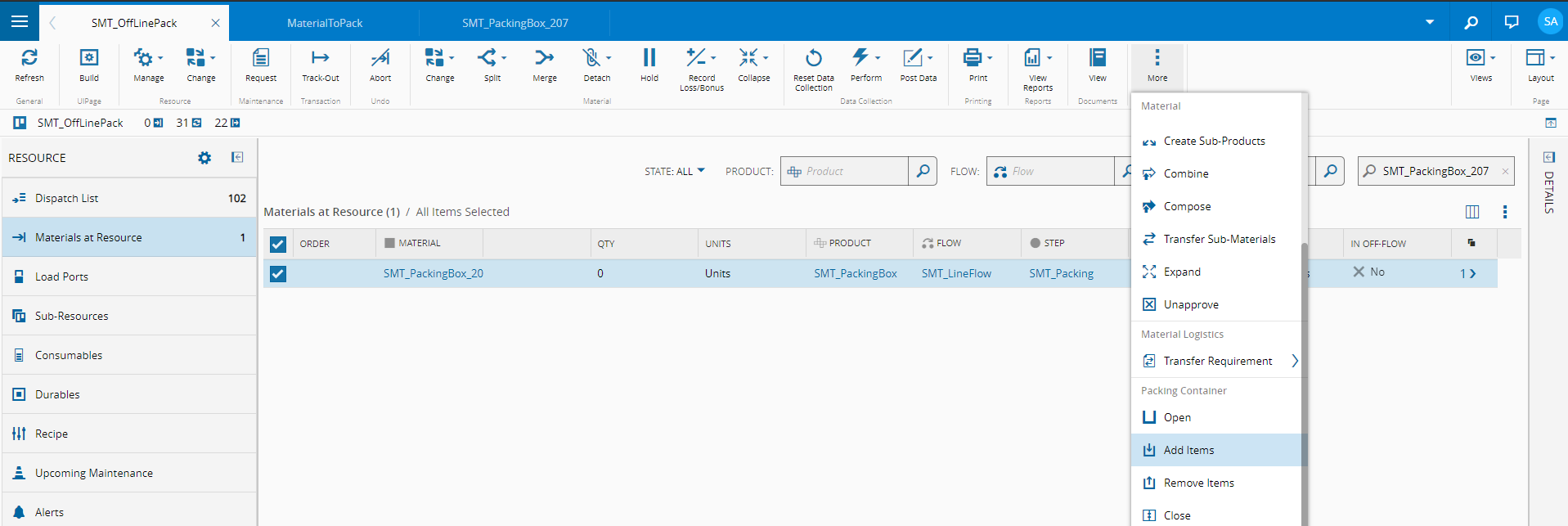

Click in Add items to Packing Container

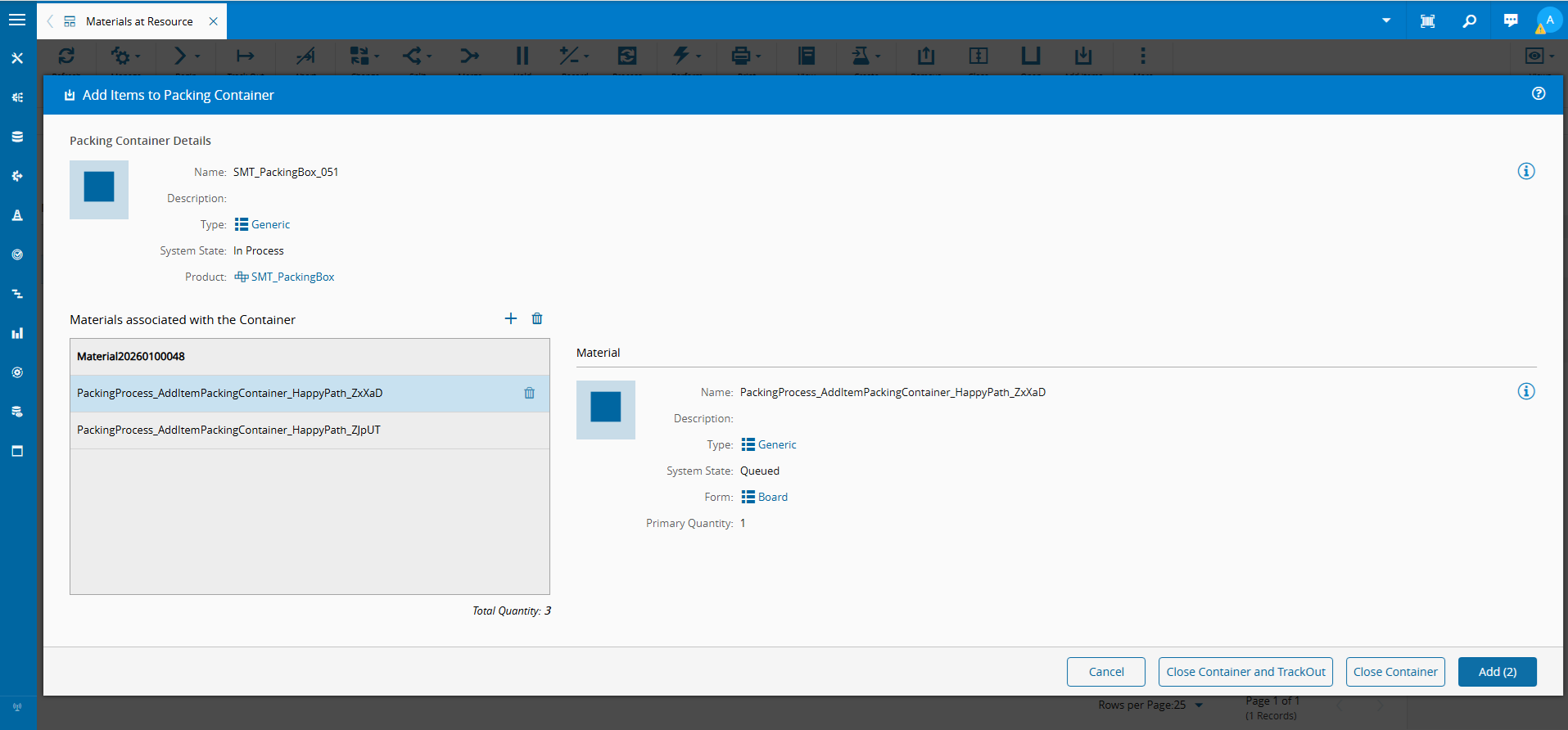

The Add items to Packing Container Wizard shall appear, giving the option to add Materials manually using a dropdown

Lastly, the user has the option to close the wizard, Close the Container and Close the container and TrackOut
