Rework#
The task allows the user send a Material to Rework.

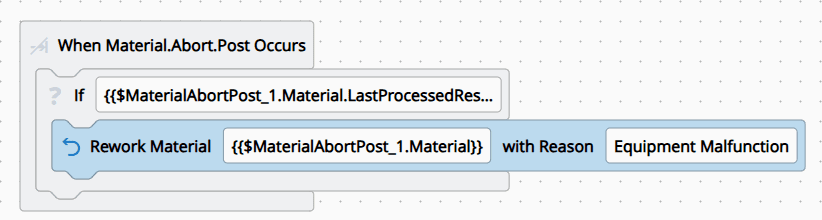

Example
Trigger:
- Task Name:
MaterialAbortPost_1 - Meaning: After performing Abort Material.
Condition:
- Input Expression:
{{$MaterialAbortPost_1.Material.LastProcessedResource.Type=="Legacy"}} - Meaning: If the last Resource where the Material was processed is of type "Legacy".
Action:
- Input:
{{$MaterialAbortPost_1.Material}}"Equipment Malfunction""Repack:A:1/Repack Step:1"
- Meaning: The Material that was aborted is sent to the rework path
"Repack:A:1/Repack Step:1", with reason"Equipment Malfunction".
Behavior#
The user will define a Material, a Rework Reason and a Rework Flow Path.
Inputs#
| Name | Data Type | Description | Expression |
|---|---|---|---|
Material | Material | The Material that will be sent to Rework | - {{$<task_name>.Material}} - <material_name> |
ReworkReason | Reason | The Reason which is applicable to Rework | - <reason_name> |
ReworkFlowPath | String | The Flow Path where the Material will be sent | - <flow_path> |
Comment | String | An optional comment that will be associated with the operation that is being executed |
Outputs#
| Name | Data Type | Description |
|---|---|---|
Material | Material | The Material that was sent to Rework |
Remarks#
The Material input can be defined by the user as a simple name or an expression, such as {{$task.Material}} where task is the name of a block that has the Material as input/output.
