Ship#
The task allows you to send a Material to a different Facility.

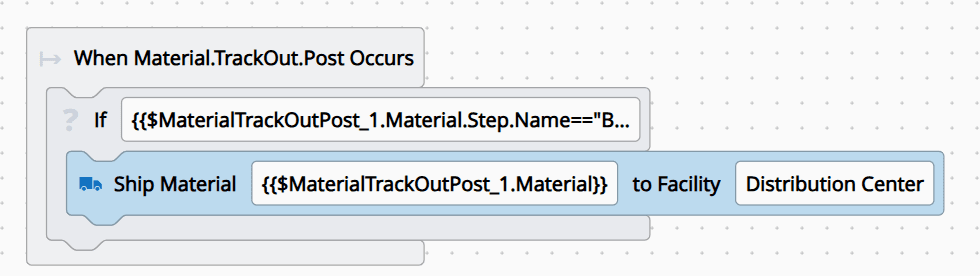

Example
Trigger:
- Task Name:
MaterialTrackOutPost_1 - Meaning: After performing Track-Out Material.
Condition:
- Input Expression:
{{$MaterialTrackOutPost_1.Material.Step.Name=="Baking"}} - Meaning: If the Material that was tracked out is at the Baking Step.
Action:
- Input:
{{$MaterialTrackOutPost_1.Material}}"Distribution Center"
- Meaning: The Material that was tracked out is shipped to the Distribution Center Facility.
Behavior#
The user will define a Material and a Facility.
Inputs#
| Name | Data Type | Description | Expression |
|---|---|---|---|
Comment | String | An optional comment that will be associated with the operation that is being executed | |
Material | Material | The Material that will be shipped | - {{$<task_name>.Material}} - <material_name> |
Facility | Facility | The Facility where the Material will be sent to | - <facility_name> |
Outputs#
| Name | Data Type | Description |
|---|---|---|
Material | Material | The Material that was shipped |
Remarks#
The Material and Facility inputs can be defined by the user as a simple name or an expression, such as {{$task.Material}} where task is the name of a block that has the Material as input/output.
