Track-In#

The task allows the user to Track-In a Material.

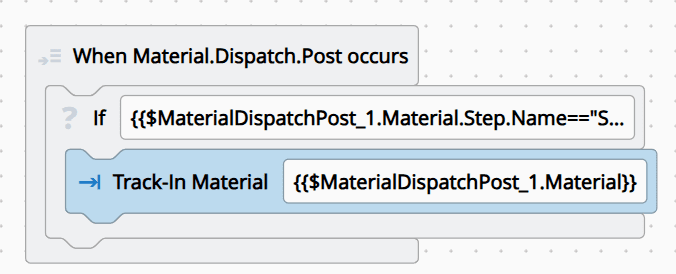

Screenshot showing a business workflow task for tracking materials.

Example

Trigger:

  • Task Name: MaterialDispatchPost_1
  • Meaning: After performing Dispatch Material.

Condition:

  • Input Expression: {{$MaterialDispatchPost_1.Material.Step.Name=="Storage Preparation"}}
  • Meaning: If the Material that was dispatched is at the Storage Preparation Step.

Action:

  • Input: {{$MaterialDispatchPost_1.Material}}
  • Meaning: The Material that was dispatched is tracked in.

Behavior#

The user will define a Material.

Inputs#

Name Data Type Description Expression
Material Material The Material that will be tracked in -{{$<task_name>.Material}} - <material_name>
Comment String An optional comment that will be associated with the operation that is being executed

Outputs#

Name Data Type Description
Material Material The Material that was tracked in
Resource Resource The Resource where the material was tracked in

Remarks#

The Material input can be defined by the user as a simple name or an expression, such as {{$task.Material}} where task is the name of a block that has the Material as input/output.
