Track-Out#

The task allows the user to Track-Out a Material.

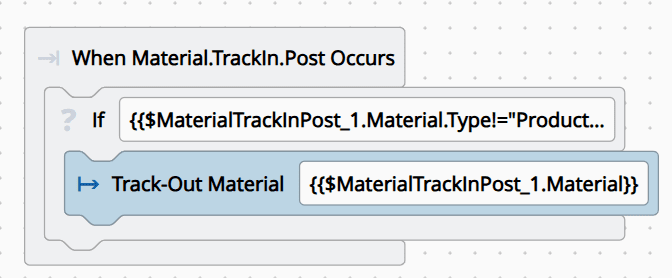

Screenshot showing a business workflow task for tracking out materials, labeled "MaterialTrackInPost1".

Example

Trigger:

  • Task Name: MaterialTrackInPost_1
  • Meaning: After performing Track-In Material.

Condition:

  • Input Expression: {{$MaterialTrackInPost_1.Material.Type!="Production"}}
  • Meaning: If the Material that was tracked in is not of Type "Production".

Action:

  • Input: {{$MaterialTrackInPost_1.Material}}
  • Meaning: The Material that was tracked in is tracked out.

Behavior#

The user will define a Material.

Inputs#

Name Data Type Description Expression
Material Material The Material that will be tracked out - {{$<task_name>.Material}} - <material_name>
Comment String An optional comment that will be associated with the operation that is being executed

Outputs#

Name Data Type Description
Material Material The Material that was tracked out

Remarks#

The Material input can be defined by the user as a simple name or an expression, such as {{$task.Material}} where task is the name of a block that has the Material as input/output.
