Electronic Failure Catalogue#

Quality.ElectronicFailureCatalogue

The Electronic Failure Catalogue page provides access to a collection of visual images generated automatically in the system based on information from Multimedia objects of scope Loss and the associations between Multimedia objects and Loss Reasons. This information is used to create a visual structured catalogue, which is also used when recording Material losses.

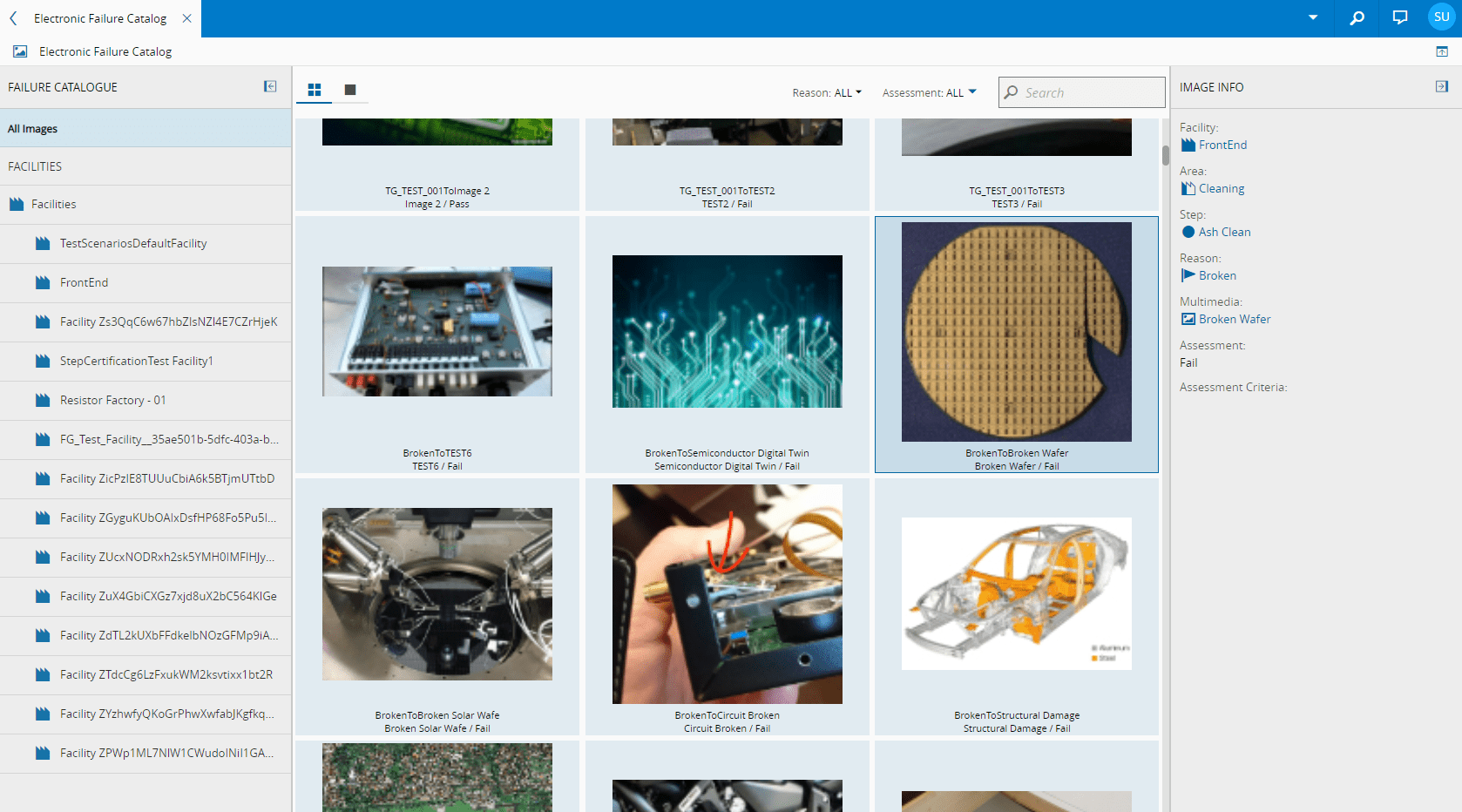

You can interact with the viewer panel by selecting the desired category on the left-hand panel and drill down through the Facility, Area, Step and Reason tree. From there, each sub-category will have a subset of associated images that can be seen in the center panel, and information will be displayed on the right-hand panel. The default view is a thumbnail view but you can view a single image on-screen by switching the view type on the top-left corner of the central panel. From here, you can:

• See detailed information on the image in the right-hand panel.
• Drag the image by selecting it and dragging it to the center panel.
• Zoom in and out using the bottom slider or the mouse wheel (if available).
• Move to the previous image.
• Move to the next image.
• Navigate to the entities that compose the context of the image, when available:
  • Facility
  • Area
  • Step
  • Reason
  • Multimedia

Create Electronic Failure Catalogue#

1. In the Administration menu, Create Multimedia by selecting New on the top ribbon:



2. Provide the necessary information, select Loss for the Scope and attach an image:

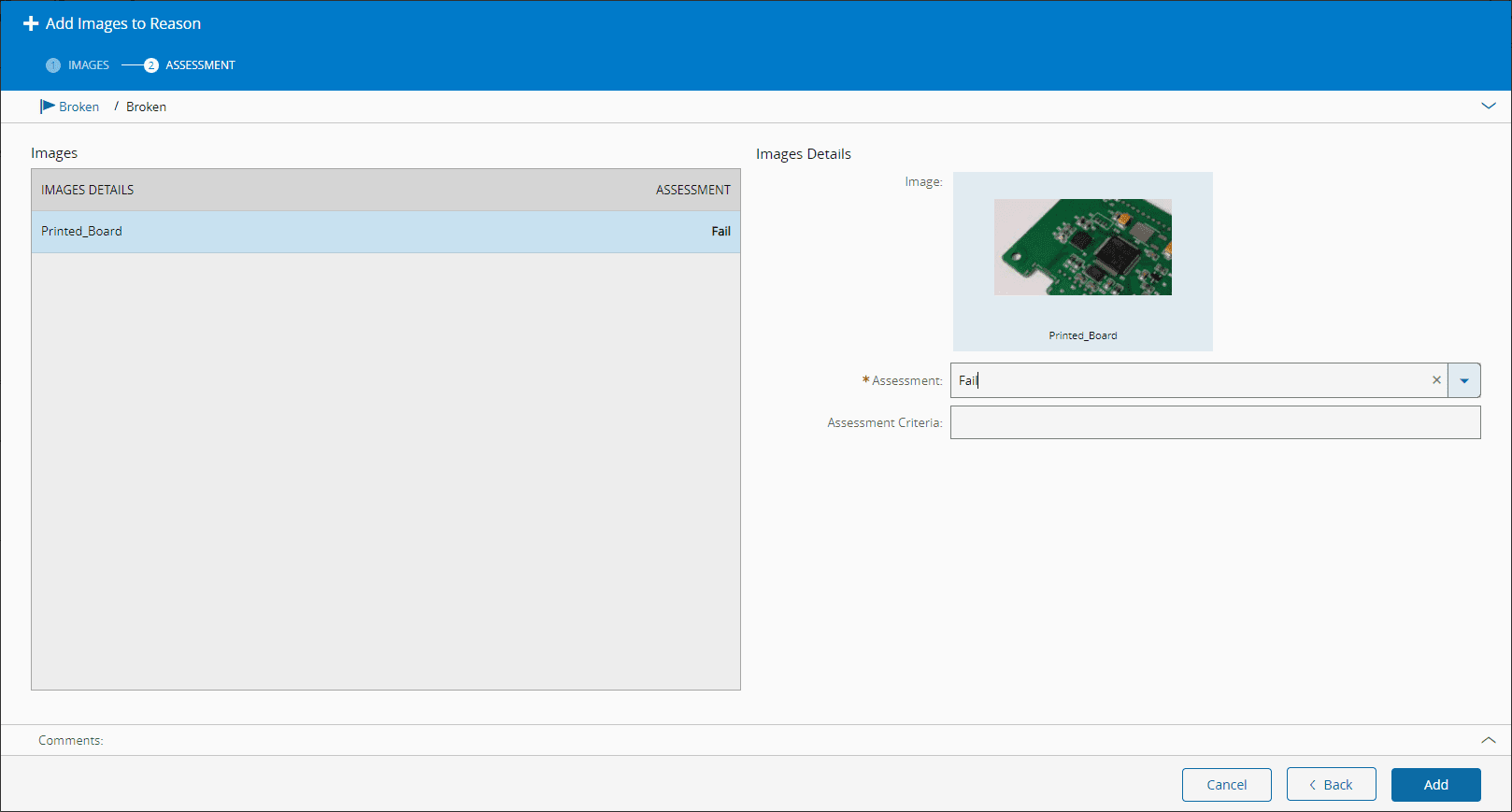

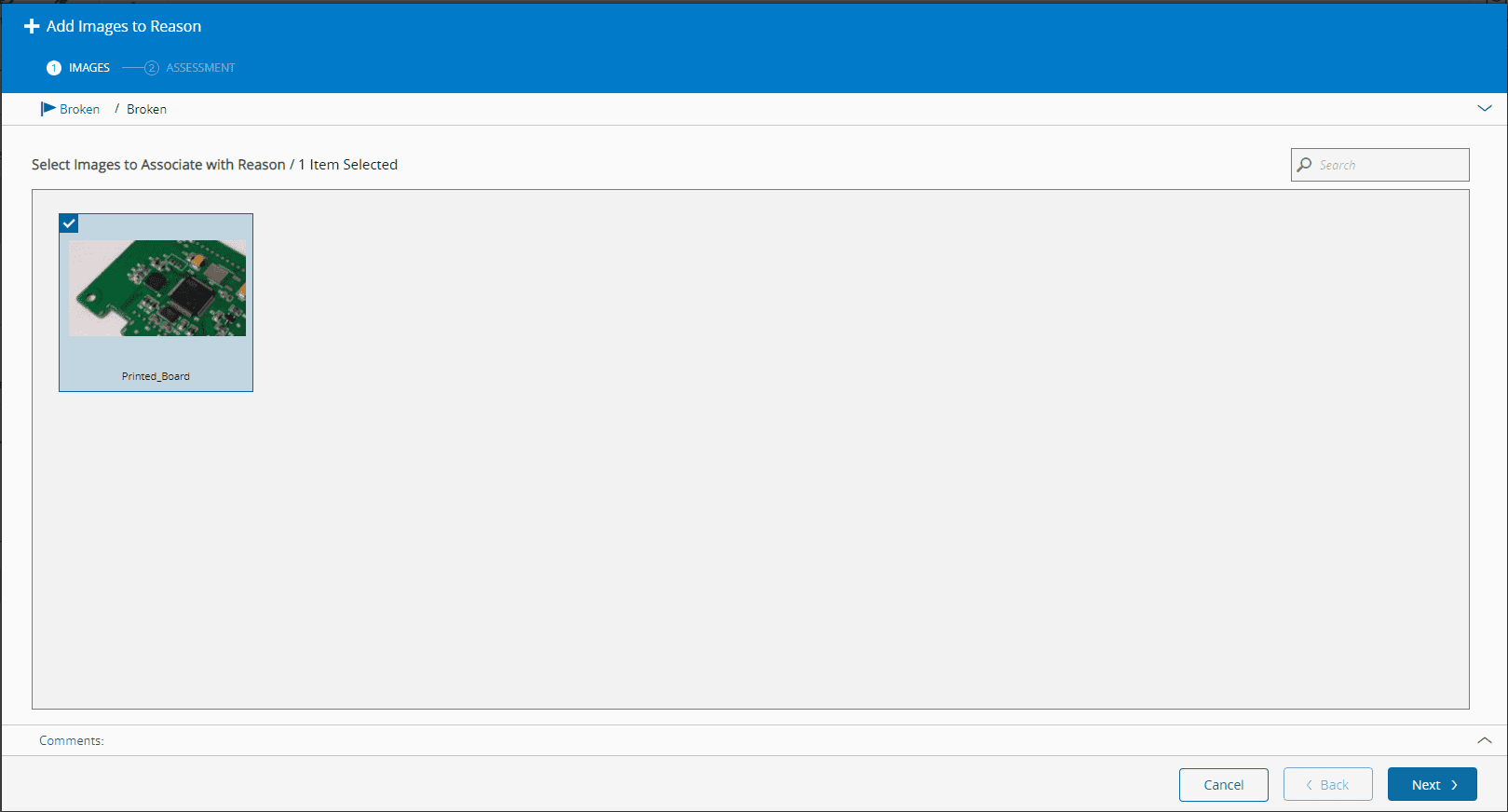

3. Go to Reason in the Business Data menu and associate the image:





4. If you want to use this Reason in a Step you need to associate it to the Step. For more information, see Manage Reasons.

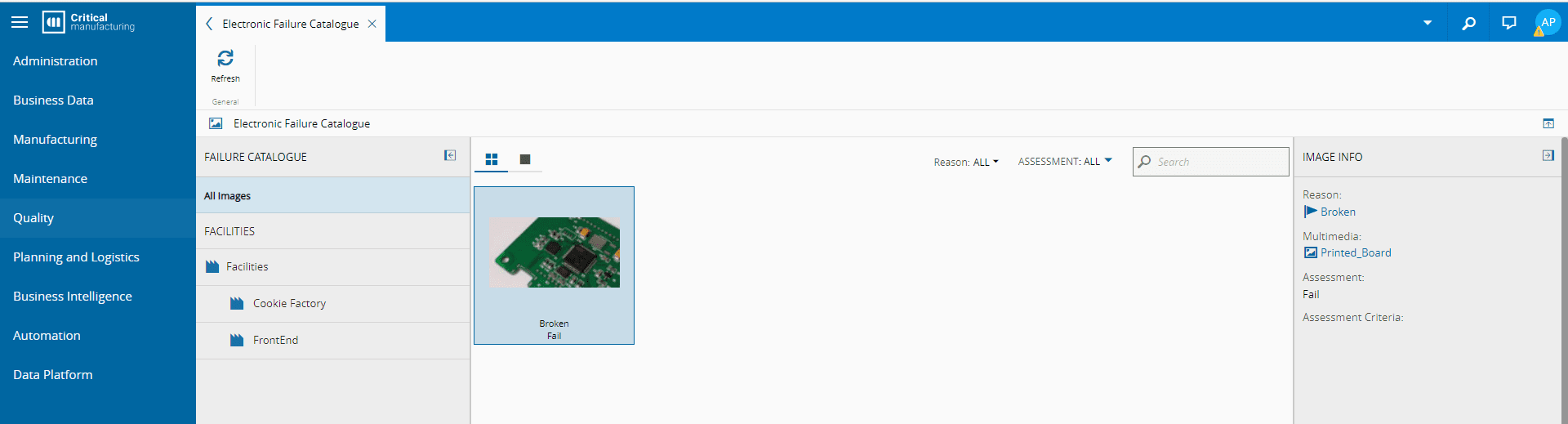

5. Go to the Quality menu, and the Electronic Failure Catalogue is automatically updated with the new Reason:
